ROBOTAPE 50 CFA
P) “Unload” photocell: detects the output of the product from the machine and commands the end of the
c
y
cle.
Q) “In
p
ut”
p
hotocell: detects the entr
y
of the
p
roduct into the machine.
R) Gear motor: activates the movement of the roller conve
y
ors of the out-feed conve
y
or (O
p
tional).
|
Important
For further details see the electrical dia
g
ram.
3.5. PNEUMATIC DEVICE DESCRIPTION

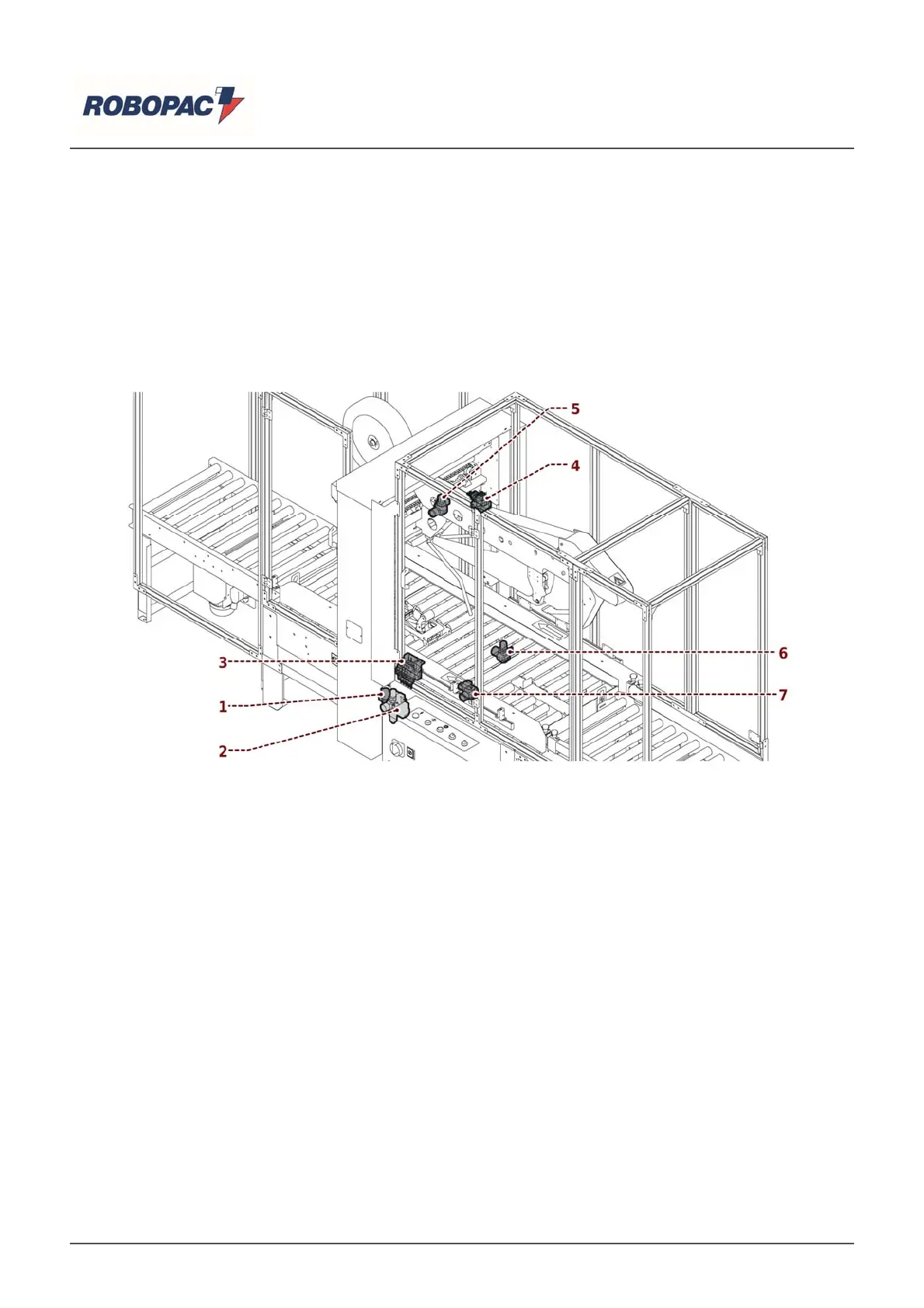

T
he fi
g
ure shows the
p
ositionin
g
of the devices on board of the machine.
1)
T
a
p
: to eliminate the
p
neumatic
p
ressure inside the machine.
2) Reducing valve with filter and manometer: this is needed to regulate the system’s general pressure.
T
urn knob to chan
g
e the
p
ressure values indicated on the
p
ressure
g
au
g
e.
3) Solenoid valves bank:
‒ Solenoid valve: To eliminate the pneumatic pressure inside the machine in case of an emergency
Sto
p
.
‒ Solenoid valve: activates the u
p
/down brid
g
e lift actuator.
‒ Solenoid valve: activates the brid
g
e lift brake actuator.
‒ Solenoid valve: activates the "sto
pp
er" device actuator.
‒ Solenoid valve: activates the ta
p
e o
p
enin
g
/closure actuator.
‒ Solenoid valve: activates the ta
p
e brake actuator.
4) Solenoid valves bank:
‒ Solenoid valve: activates the side
p
ressers actuator.
‒ Solenoid valve: activates the fla
p
closure device actuator.
5) Reducin
g
valve of the
p
neumatic c
y
linder fla
p
closure.
6) Reducin
g
valve of the
p
neumatic c
y
linder of the side
g
uides.
7) Reducin
g
valve of the
p
neumatic c
y
linder of the brid
g
e lift.
| Important
T
hese re
g
ulators are calibrated b
y
the manufacturer. Do not modif
y
them.
|
Important
For further details see the
p
neumatic dia
g
ram.
