ROBOTAPE 50 CFA

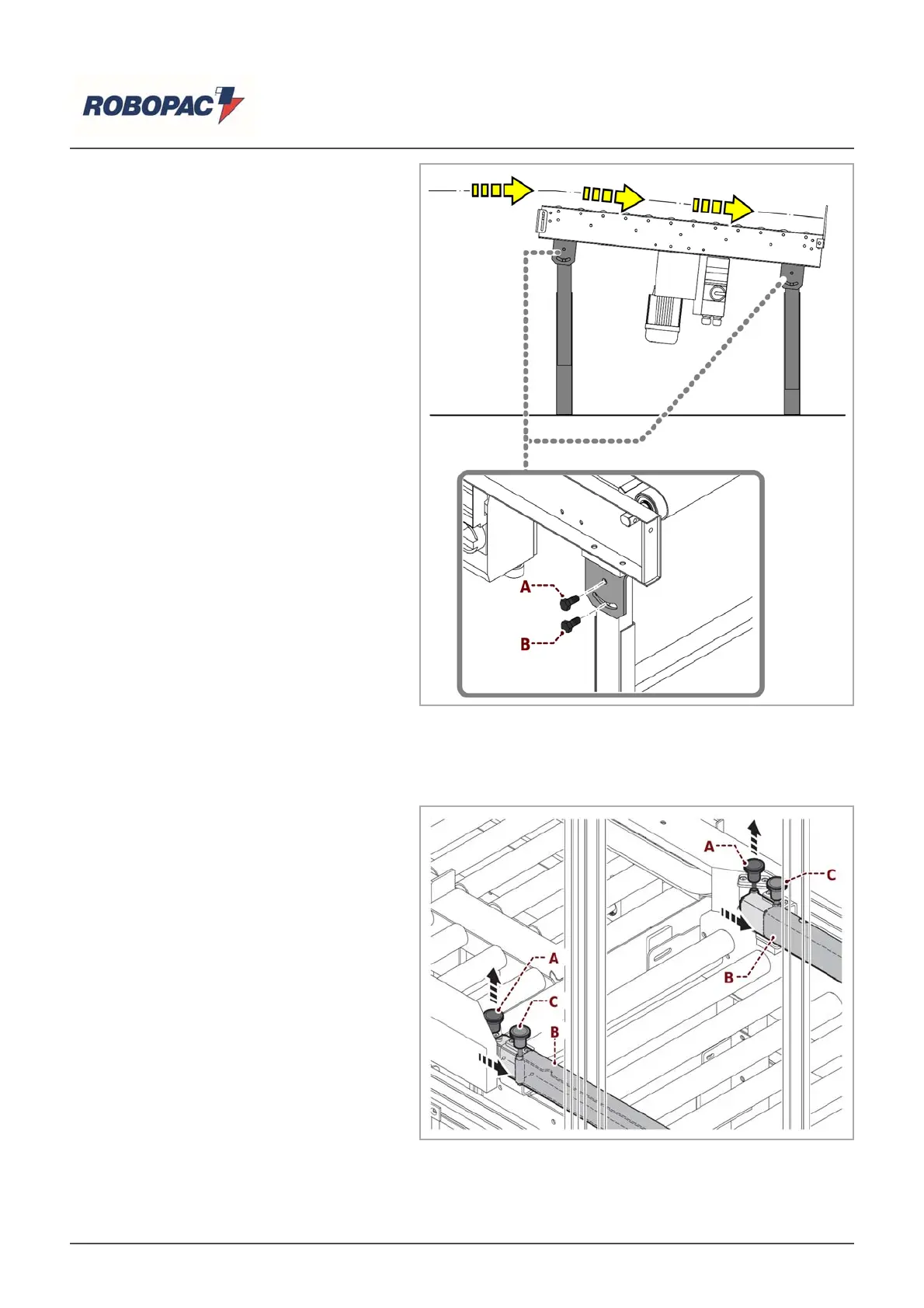

In a machine fitted with adjustable
inclination supports, the product input
side can be set at a height different to
the product output side.
‒ Loosen the screw (A).
‒ Loosen the screw (B).
‒ Adjust the tilt and tighten the screws (A -
B).
6.8. CARRIER GUIDE EXCLUSION IN ENTRANCE
If
y
ou need to
p
rocess various sized boxes
y
ou ma
y
need to exclude the carrier
g
uides.
Proceed as indicated.
1. Lift the (A) knob to disconnect the guide
from the machine’s conveyor belt.
2. Move the (B) guide and lock it to the
roller conveyor by turning the (C) knob.
3. Repeat the process for the other guide
as well.
English
46/75
