4.6. RECOMMENDATIONS FOR CONNECTIONS
|
Important
The connections must be made in accordance with the specifications supplied by the manufacturer in the
enclosed diagrams.
The person authorized to carry out said operation must posses the skills and experience acquired and
acknowledged in the specific sector, must perform the connection workmanlike and keep into account all the
statutory and legislation requirements.
Once the connection has been completed, before commissioning the machinery, it is necessary to perform an
overall control to verif
if said re
uirements have been com
lied with.
4.7. PNEUMATIC
CONNECTIONS
Proceed as indicated.

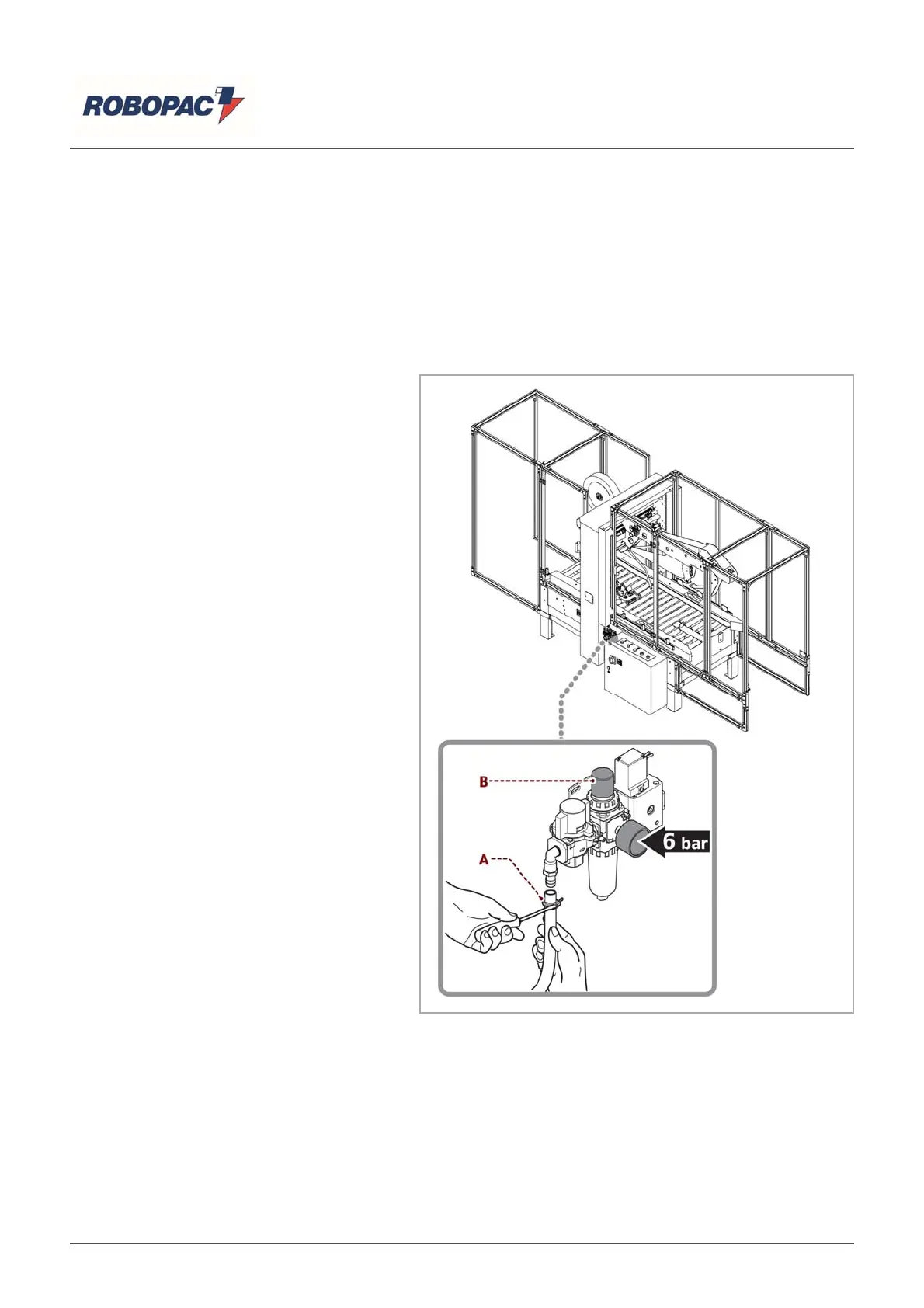

1. Insert a flexible tube on the end of the
rubber fitting and fasten it with a
metallic screw clamp (A).
2. Turn on the power supply line.
3. Check that the pressure gauge indicates
at least 6 bar and use the knob (B) to
compensate any pressure differences.
Repeat this operation when the machine
is runnin
.
