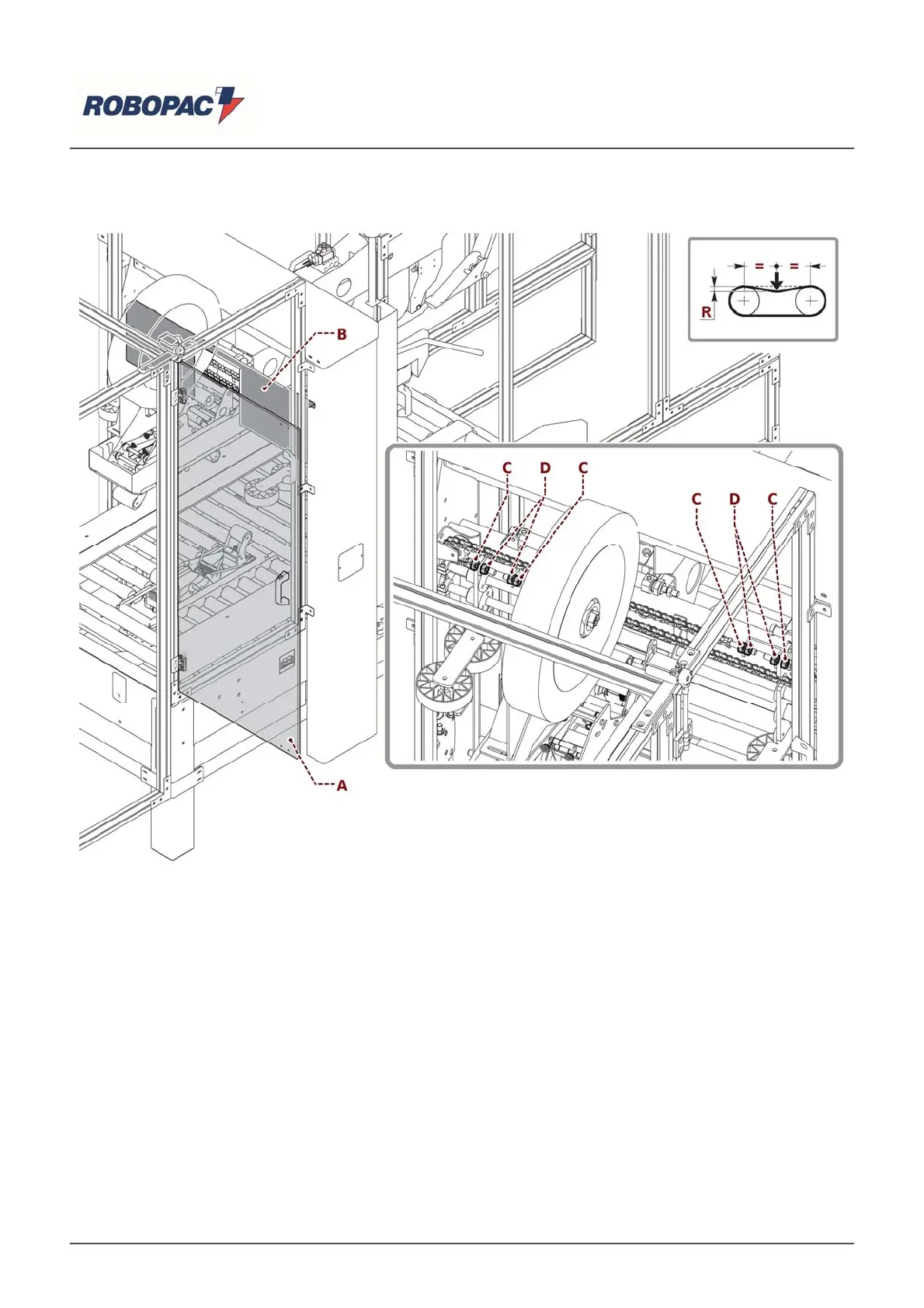

5.6. SIDE PRESSER MOVEMENT CHAIN ADJUSTER
Proceed as indicated.
1. Deactivate the main electric switch to
p
ut the machine in safet
y
conditions.
2. O
p
en hatch (A).
3. Remove transmission cover (B).
4. Loosen the nuts (C).
5. O
p
erate nut
s
(D) to ad
j
ust chain tension.
6.
T
i
g
hten the nut
s
(C).
7. Reassemble the (B) cover and close door (A).
|
Important
T
o check chain tension, use the method indicated in the illustration. The resultin
g
shif
t
± 5 mm should be (R).
i Caution - Warning
Before re-startin
g
the machine, check that no tools or other e
q
ui
p
ment has been left near the movin
g
p
arts.
