6.1. MOUNTING THE TAPE
Chapter 6
ABOUT THE USE
The steps below are valid for both the
upper and lower taping unit.

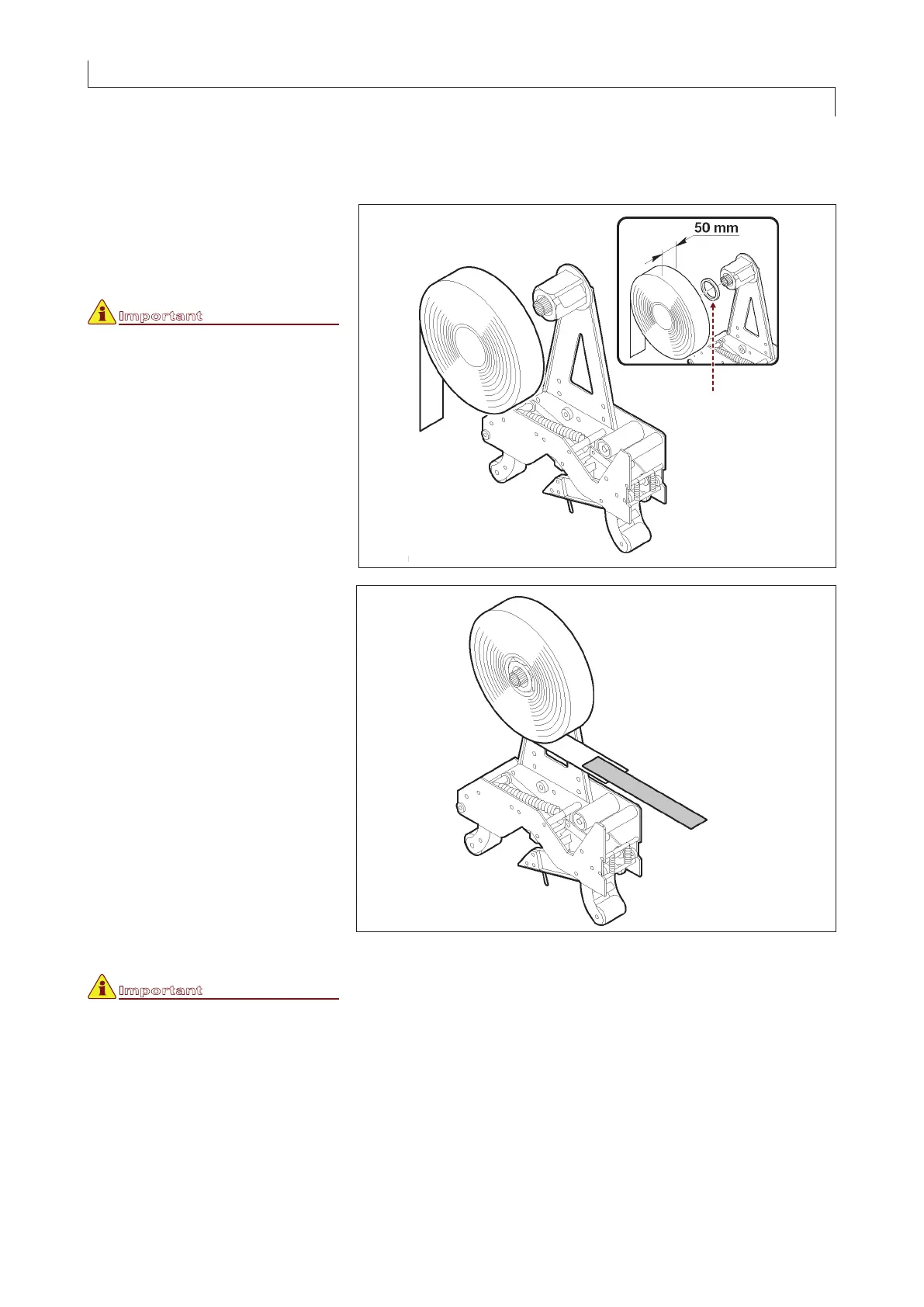

– Position the roll of adhesive tape
on the roll holder.
Important
Make sure the adhesive surface is
in the correct position. If installing
a roll of 50 mm wide tape (2”) on
the T75 taping head, you must
also include a spacer (A) between
the reel and the hub.
– Glue the tape (provided) to the
tape pull.
– Insert the tape pull, following the path shown on the plate.
Important
The dashed line refers to the adhesive side of the reel.
– Pull and cut off excess tape.
