ROBOTAPE 50 CFA
6.6. WORKBENCH HEIGHT
SETTING OF THE MACHINE

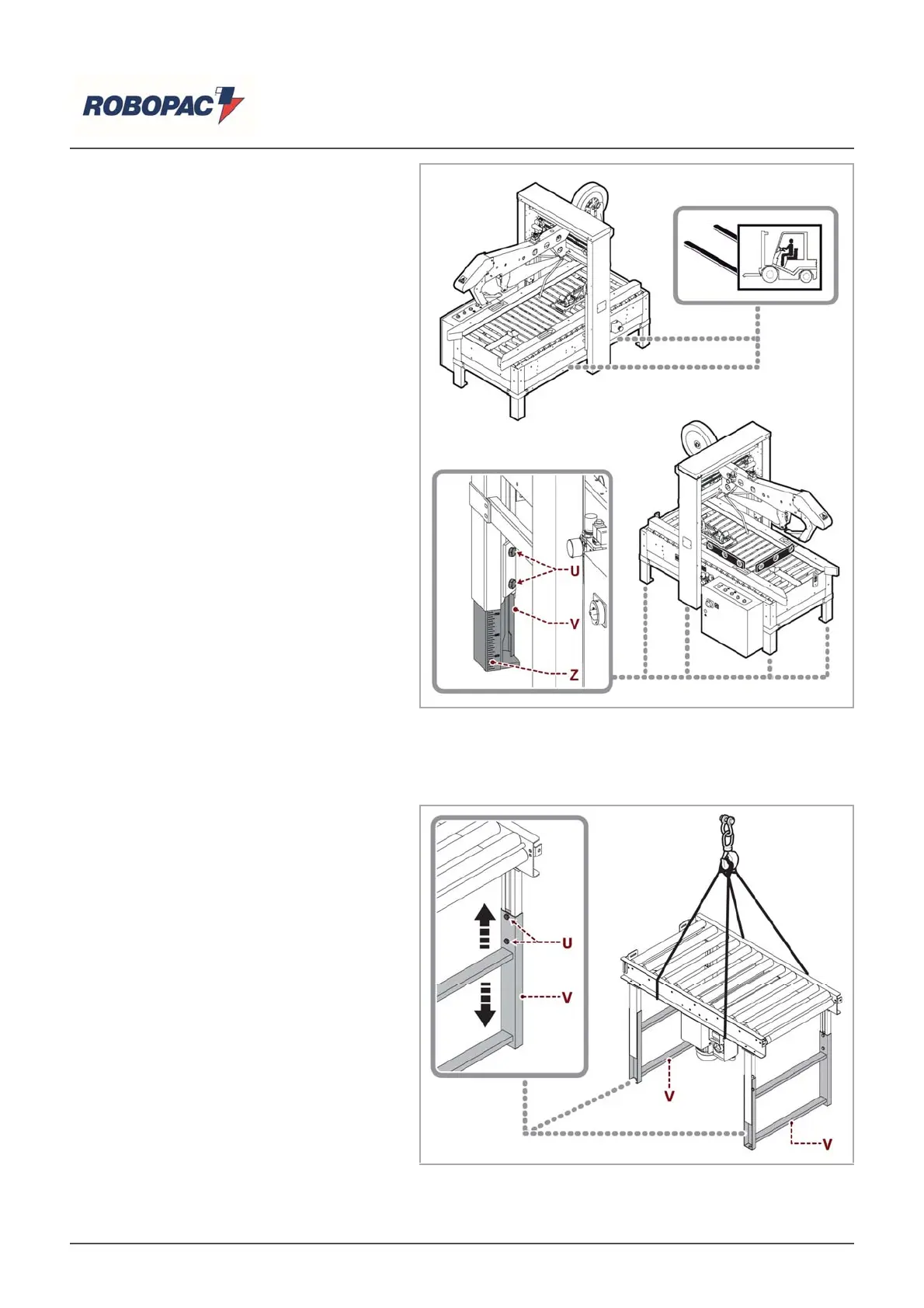

Proceed as indicated.
1. Lift the machine as indicated in the
figure (See “transport and handling”).
2. Loosen screws (U), adjust supporting leg
(V) to the desired height and then
tighten screws.
3. Read the value indicated on gradutaed
scale (Z).
4. Repeat the same operations on the other
supporting legs and check that the value
indicated on the gradutaed scale is the
same for all.
5. Make sure the machine is levelled.
6.7. WORKBENCH HEIGHT SETTING OF CARRIERS (OPTIONAL)
Before starting to work with characteristics different to the previous ones, the height of the work surface must
be set.
Proceed as indicated.
1. Lift the machine as indicated in the
figure.
2. Loosen screws (U), adjust supporting leg
(V) to the desired height and then
tighten screws.
3. Repeat the same operations on the other
feet.
4. Make sure the machine is levelled.
