7.1. REPLACING THE BLADE
Chapter 7
MAINTENANCE INFORMATION

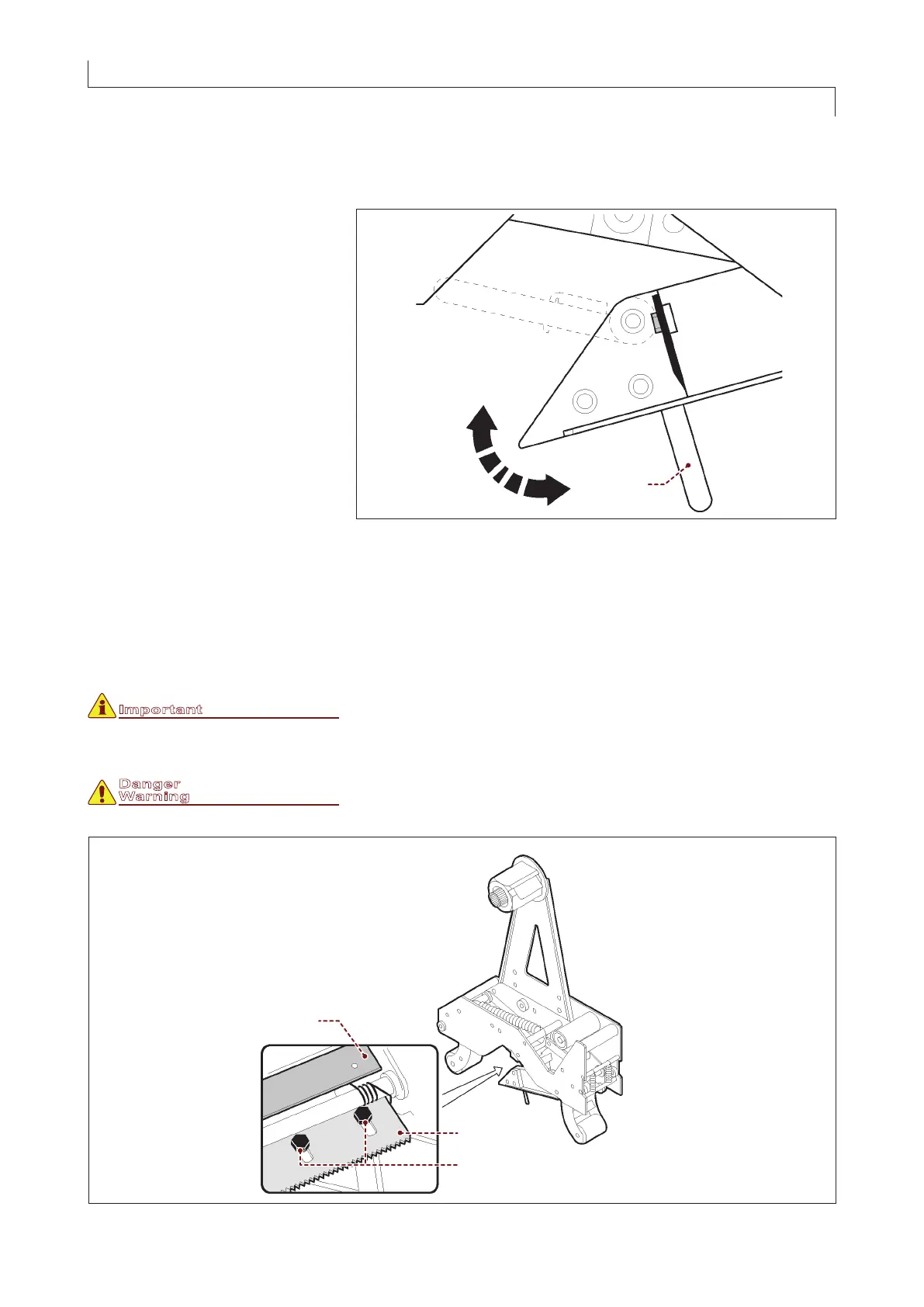

– To replace the blade, raise the
guard (A) as shown in the gure.
Note: Guard (A) is not present on
the T50/30 taping head (30 mm
ap).
– Loosen the screws (B).
– Remove the blade (C).
– Insert the new blade, making sure the sharp side is correctly
positioned.
– Tighten the screws (B).
– Release the guard (A).
Important
Make sure the blade does not interfere with the guard before
fastening it in place.
Danger
Warning
The blade is very sharp.
