156 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 7 Use I/O Modules with CompactLogix 5370 L1 Controllers
Embedded Output Points
The embedded output points on the CompactLogix 5370 L1 controllers
support 2-wire systems. The embedded power supply in the controller powers
the embedded output points over the POINTBus backplane.
The following graphic shows examples of how to connect 2-wire systems to
embedded output points 0…7. The same wiring connections can be used with
output points 8…15.

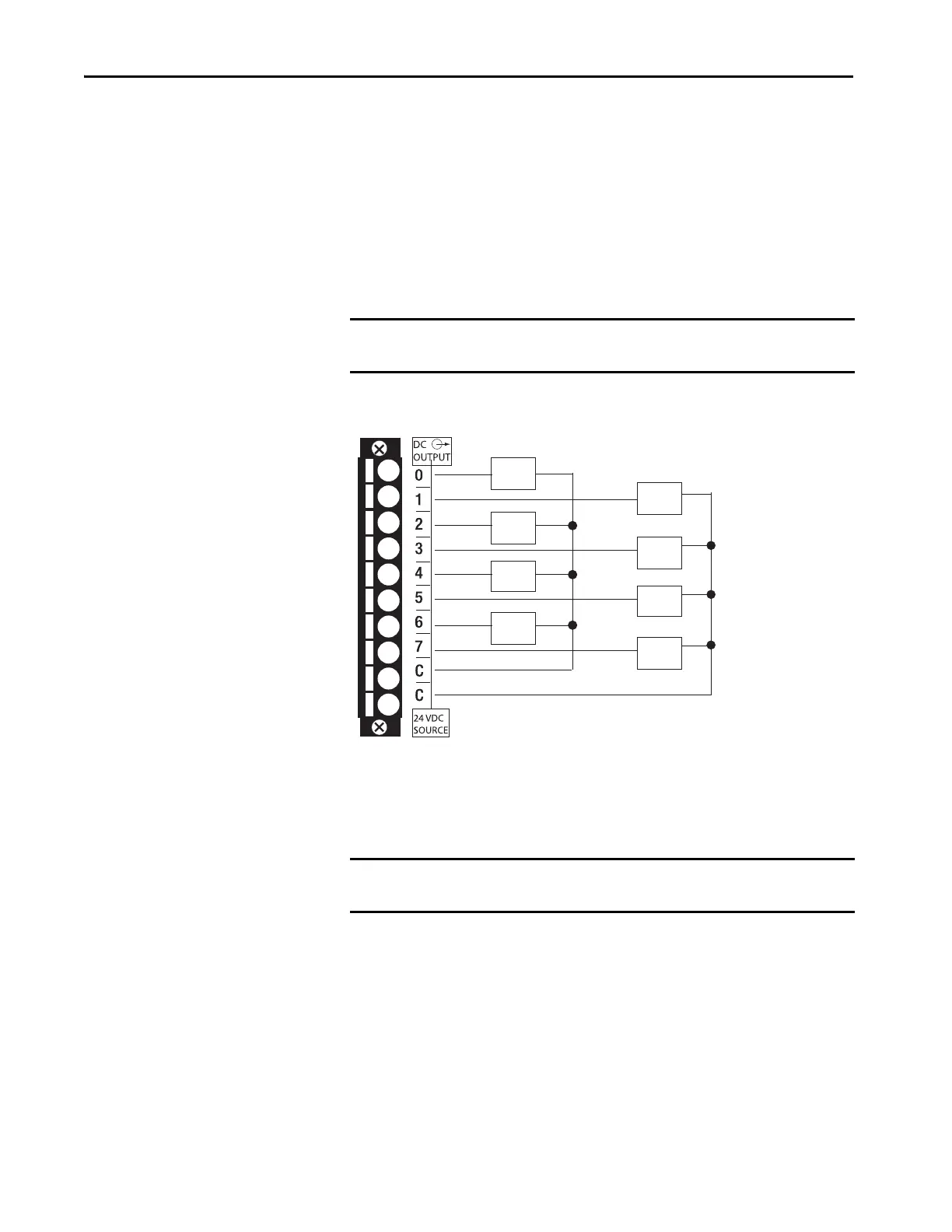

Figure 23 - CompactLogix 5370 L1 Controllers Embedded Digital Output Point Wiring Diagram
The following graphic shows an example of how to connect 2-wire systems to
embedded output points 0…4 and use an external terminal block with a bus
connector strip.
IMPORTANT Do not exceed the per point output current rating or the total output module
current rating.
Load
Load
Load
Load
Load
Load
Load
Load
IMPORTANT Do not exceed the per point output current rating or the total output module
current rating.
