Appendix A Troubleshoot the Module

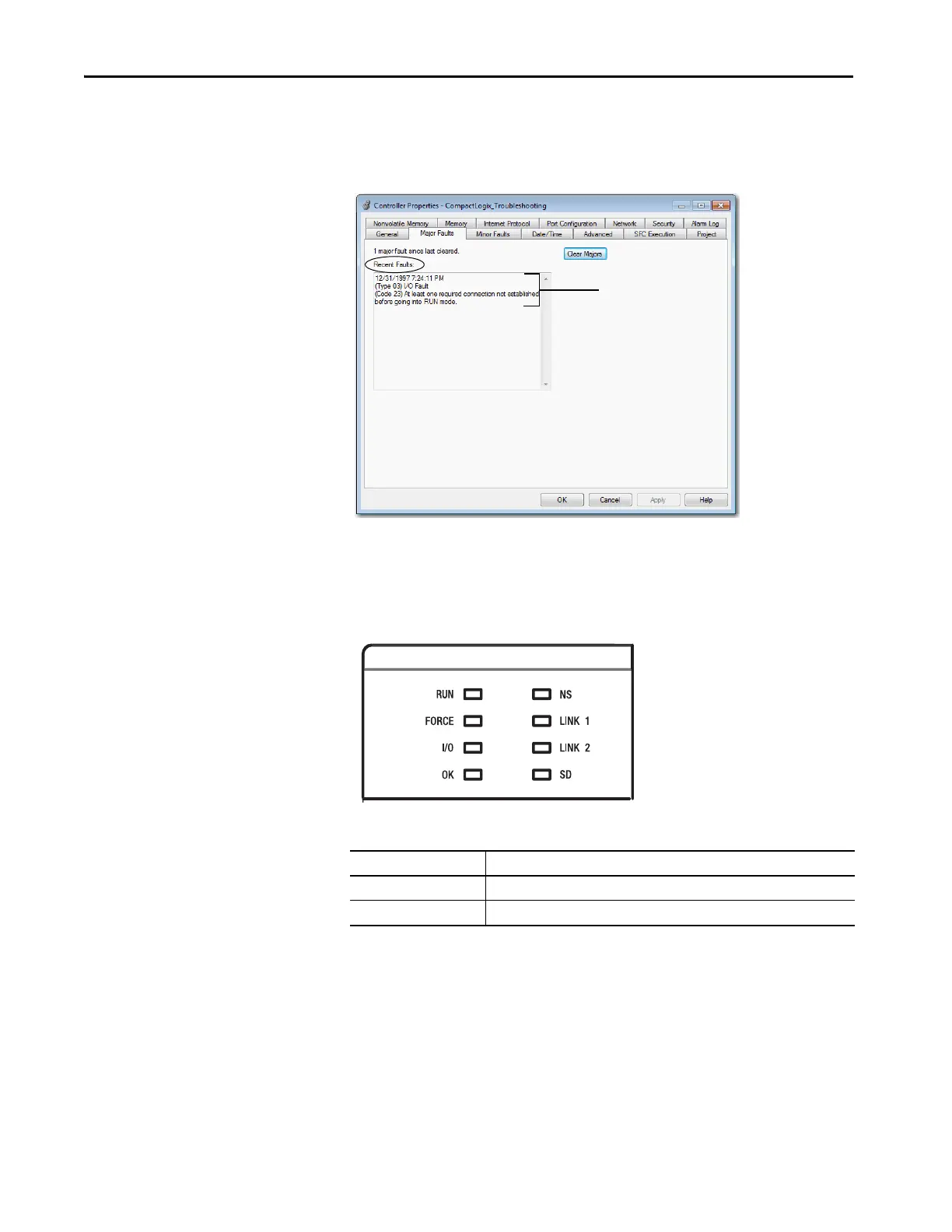

The Major Faults tab indicates the type of fault under Recent Faults. A fault
displays here when you are monitoring the configuration properties of a
module in the Logix Designer application and receive a Communication fault
message.
Use the CompactLogix 5370
Controllers Status Indicators
The following graphic shows the controller status indicators for all
CompactLogix 5370 controllers.
Table 40 - Controller Mode (RUN) Status Indicator
Status Description
Off The controller is in Program or Test mode.
Green The controller is in Run mode.
