Rockwell Automation Publication 1769-UM021I-EN-P - May 2018 239
Use I/O Modules with CompactLogix 5370 L3 Controllers Chapter 9
Distributed I/O Modules over a DeviceNet Network
You can include distributed I/O modules over a DeviceNet network in your
CompactLogix 5370 L3 control system. Consider the following when using
distributed I/O modules over a DeviceNet network:
You must use the following to use distributed I/O modules over a DeviceNet
network in your CompactLogix 5370 L3 control system:
• Logix Designer application or the Studio 5000® environment - For more
information, see Configure Distributed I/O Modules on an EtherNet/
IP Network on page 253.
• RSNetWorx™ for DeviceNet software - For more information, see
DeviceNet Network Communication on page 134
.

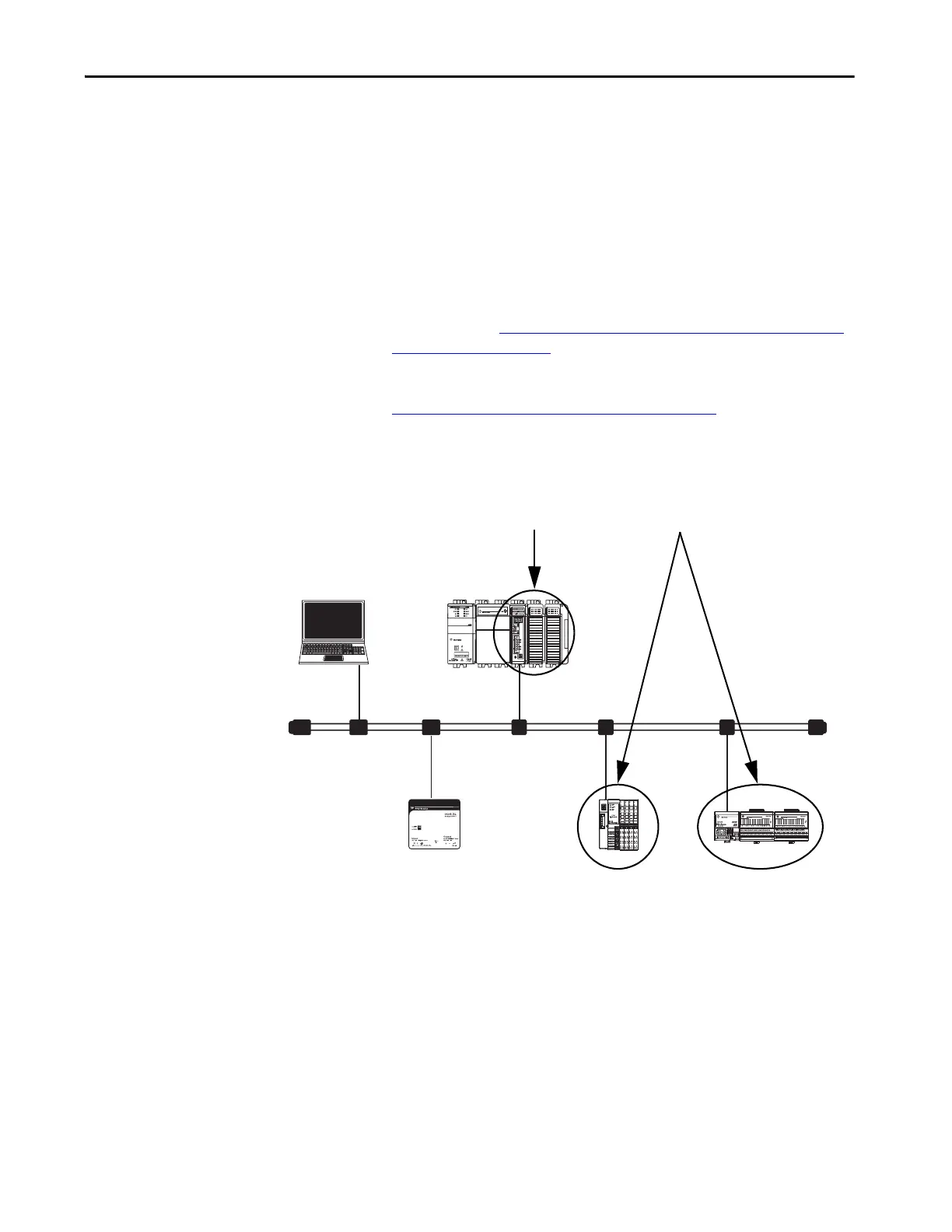

The following graphic shows an example 1769-L33ERM control system that
uses local expansion modules and distributed I/O modules over a DeviceNet
network.
Local Expansion Modules Distributed I/O Modules
