60 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 3 Install the CompactLogix 5370 L2 Controller

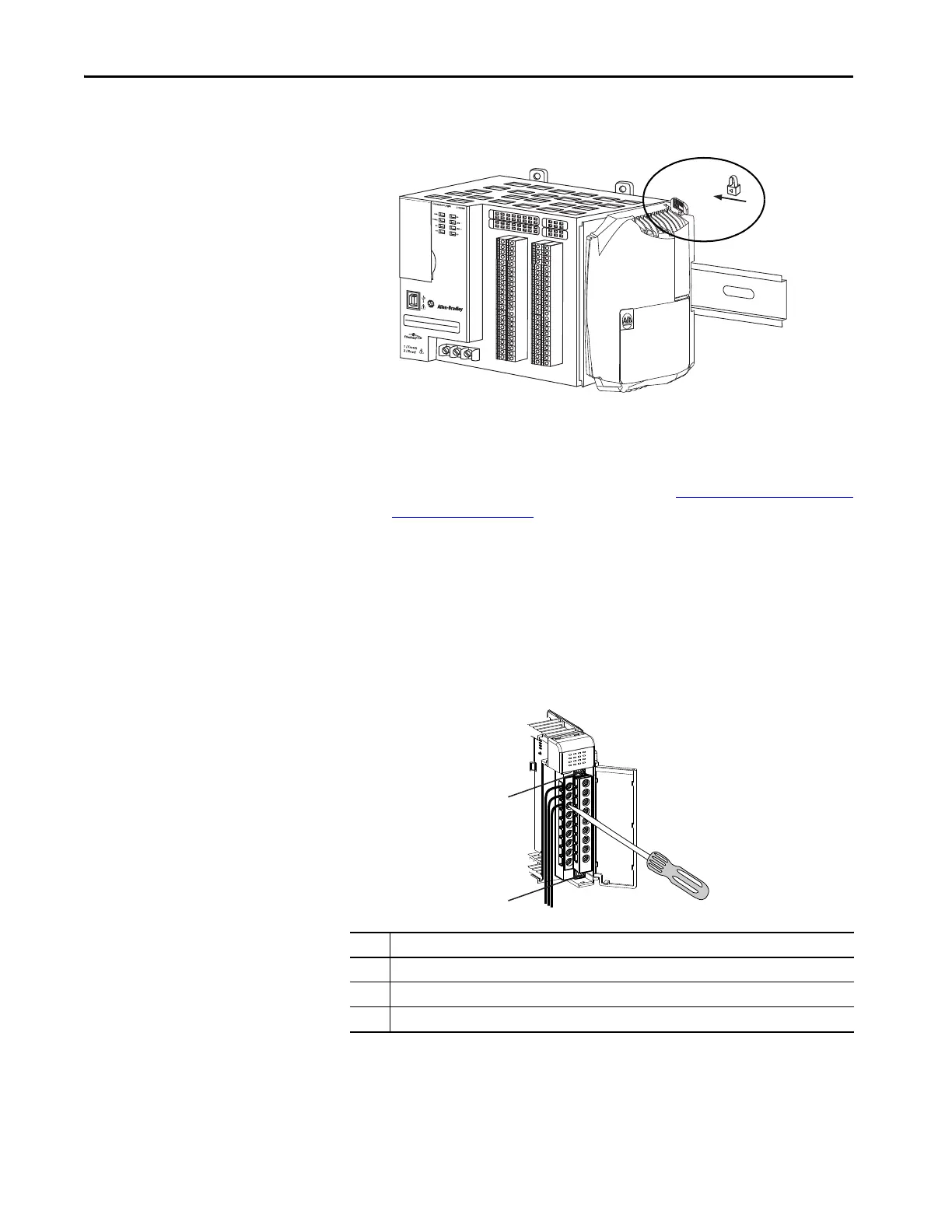

7. Push the end cap locking mechanism to the right to lock it onto
the controller.
If you are using local expansion modules, see Local Expansion Modules -
Optional on page 213 for more information on how to install them in a
CompactLogix 5370 L2 control system.
Remove and Replace the Removable Terminal Block
To remove the RTB, loosen the upper and lower retaining screws. The terminal
block backs away from the module as you remove the screws. When replacing
the terminal block, torque the retaining screws to 0.46 N
•m (4.1 lb•in).
Item Description
1 Wiring the finger-safe cover
2 Lower retaining screws
3 Upper retaining screws
