224 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 8 Use I/O Modules with CompactLogix 5370 L2 Controllers
Configure Local Expansion Modules
Complete these steps to add a Compact I/O module to your
CompactLogix 5370 L2 control system and configure it.

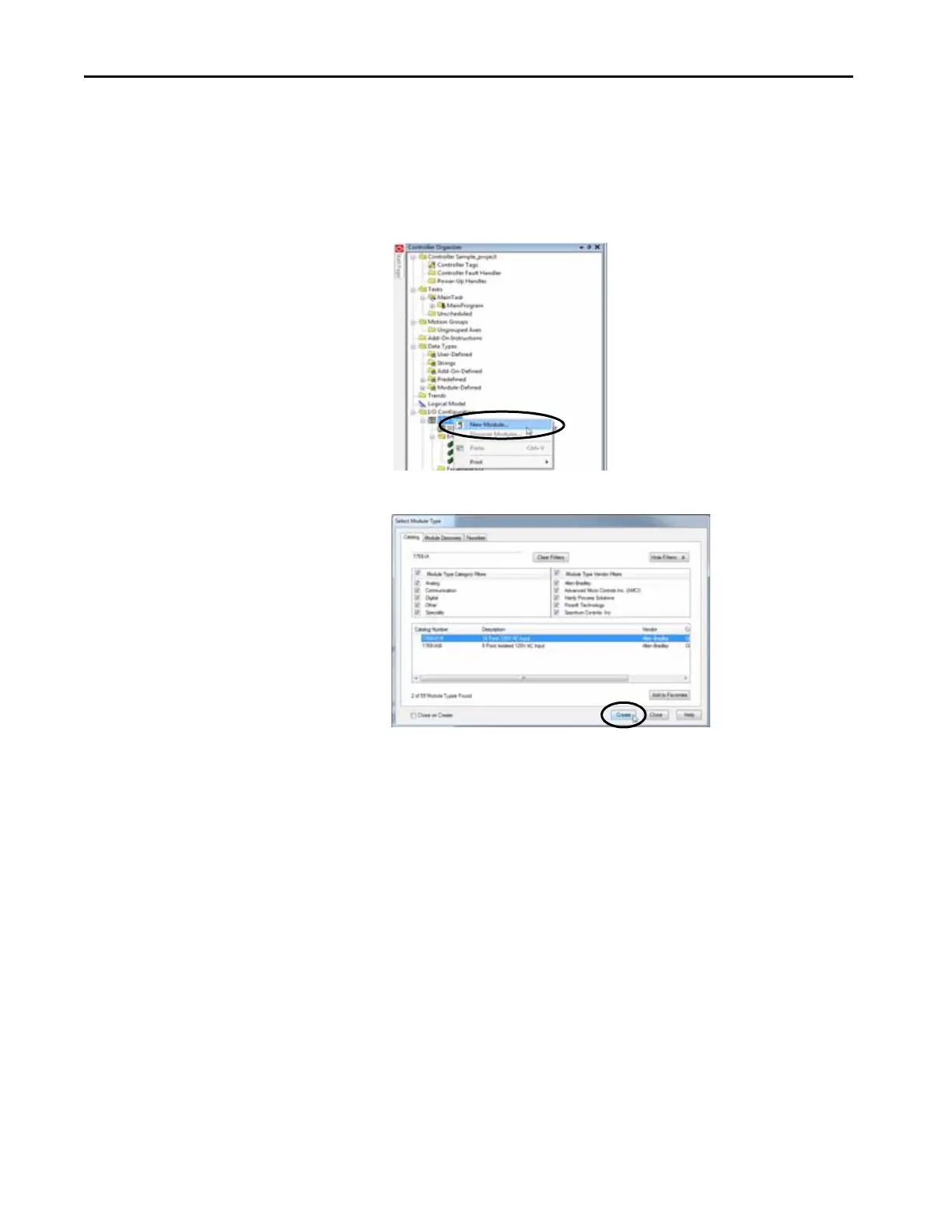

1. Right-click the 1769 Bus and choose New Module.
2. Select the desired I/O module and click Create.
The New Module dialog box appears.
