Chapter 9 Use I/O Modules with CompactLogix 5370 L3 Controllers
Configure Distributed I/O
Modules on a DeviceNet
Network
Your CompactLogix 5370 L3 control system can use distributed I/O modules
on a DeviceNet network.
Complete these steps to configure distributed I/O modules on a
DeviceNet network.

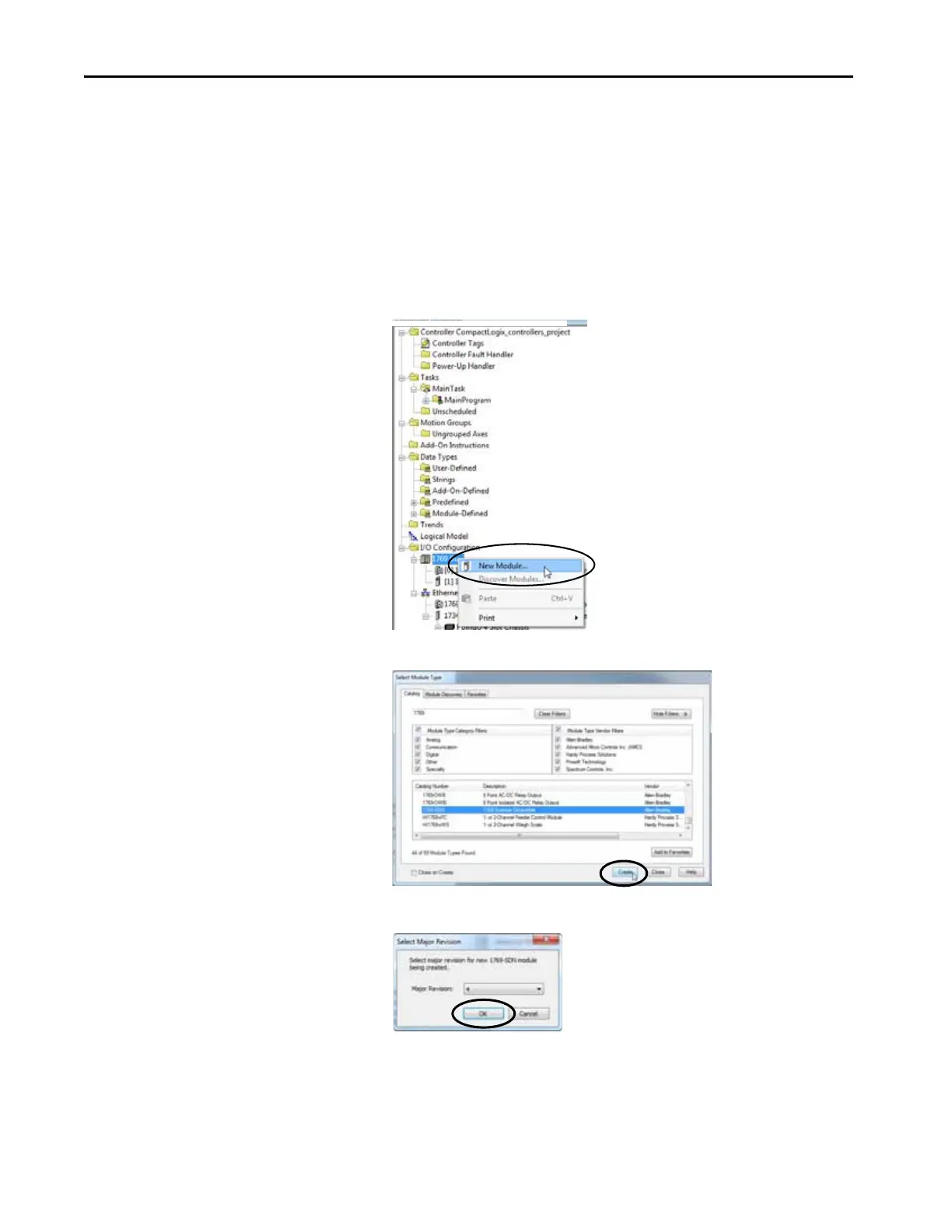

1. If you have not done so, install a 1769-SDN Compact I/O DeviceNet
scanner into the local bank of your CompactLogix 5370 L3 control
system.
2. Right-click 1769 Bus and choose New Module.
3. Select the 1769-SDN scanner and click Create.
4. Choose a Major Revision and click OK.
The New Module dialog box appears.
To Next Page
