Use I/O Modules with CompactLogix 5370 L3 Controllers Chapter 9
5. Configure the new 1769-SDN scanner as necessary and click OK.
6. Use RSNetWorx for DeviceNet software to define the scan list in the
1769-SDN scanner to communicate data between the devices and the
controller through the scanner.

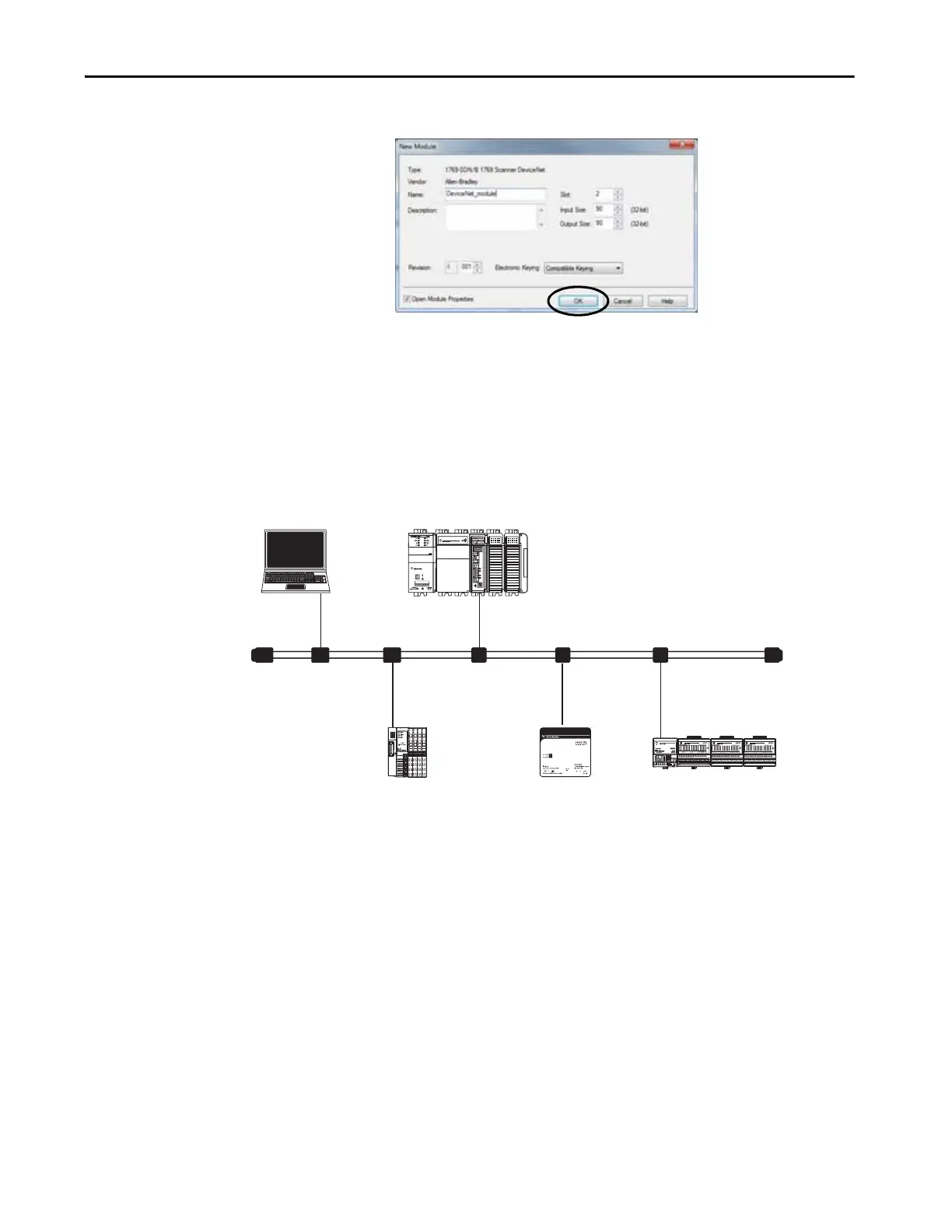

The following graphic is an example of a 1769-L33ERM control system that
uses distributed I/O modules on a DeviceNet network.
• 1769-L33ERM
• 1769-SDN Scanner
1794-ADN FLEX I/O
1734-ADN POINT I/O
1606-XLDNET
To Next Page
