Chapter 5 Complete Software Tasks Required at CompactLogix 5370 Controller Installation
Use the ControlFLASH Software to Load Firmware
You can use the ControlFLASH software to load firmware through a USB or
EtherNet/IP network connection. We recommend the following when you
load firmware via the ControlFLASH software:
• Use a USB connection to load the firmware.
• Remove the SD card, if one is installed in the controller.
Complete these steps to use the ControlFLASH software to load firmware.
1. Verify that a connection exists between your computer and the
CompactLogix 5370 controller.

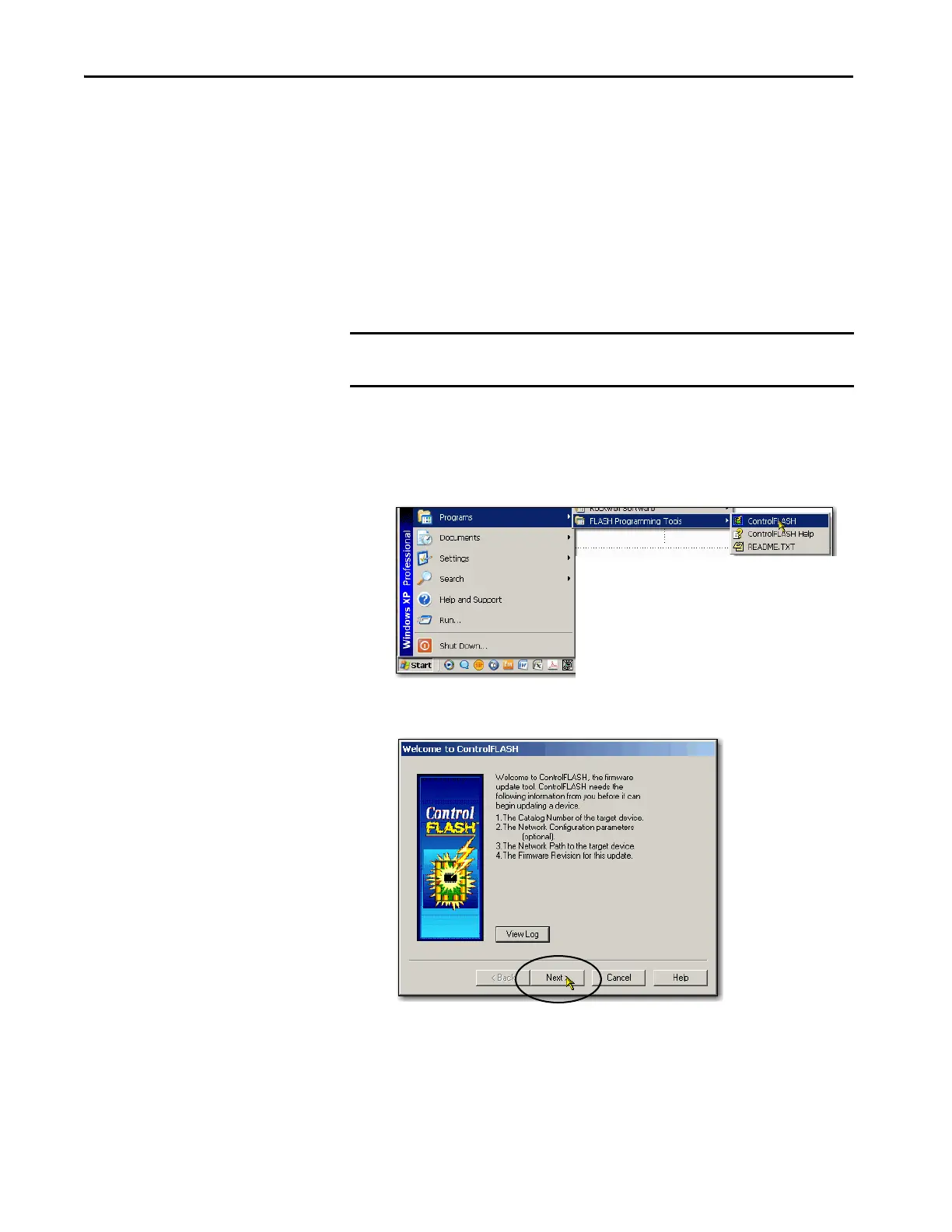

2. Choose Start>All Programs>FLASH Programming
To o l s > C o n t r o l F L A S H .
3. When the Welcome dialog box appears, click Next.
IMPORTANT These steps show a 1769-L36ERM controller. The same steps also apply to all
other CompactLogix 5370 controllers with slight variations in screens.
