Chapter 3 Install the CompactLogix 5370 L2 Controller

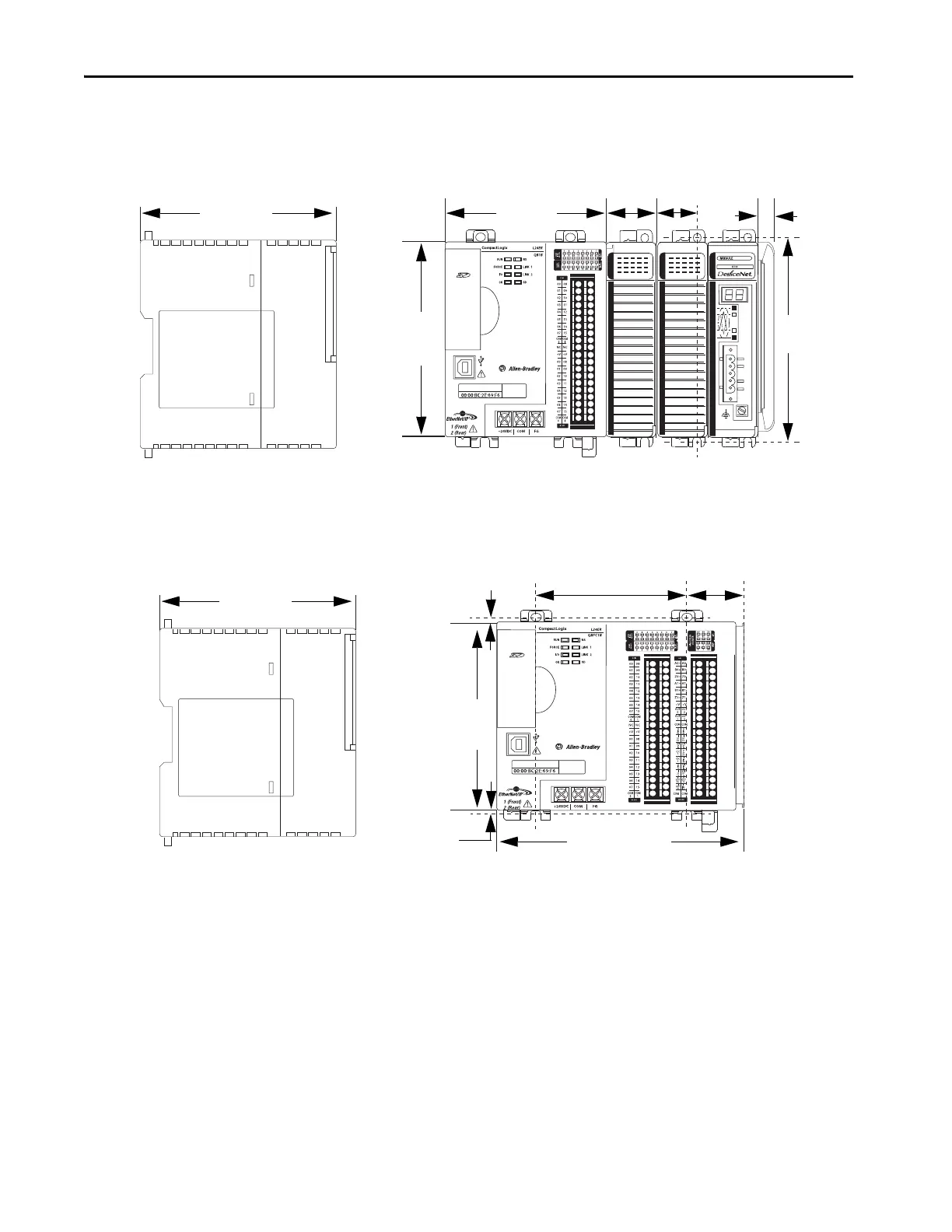

This graphic shows the system dimensions for the 1769-L24ER-QB1B
controller with expansion modules installed.
This graphic shows the system dimensions for the 1769-L24ER-QBFC1B
controller.
118.00 mm
(4.65 in.)
115.00 mm
(4.53 in.)
35.00 mm
(1.38 in.)
105 mm
(4.13 in.)
18.00 mm
(0.71 in.)
25.00 mm
(0.98 in.)
126.6 mm
(4.98 in.)
118.00 mm
(4.65 in.)
105 mm
(4.13 in.)
140.00 mm
(5.51 in.)
27.65 mm
(1.09 in.)
84.70 mm
(3.33 in.)
3.06 mm
(0.12 in.)
2.8 mm
(0.12 in.)
