76 Rockwell Automation Publication 1769-UM021I-EN-P - May 2018
Chapter 4 Install the CompactLogix 5370 L3 Controller

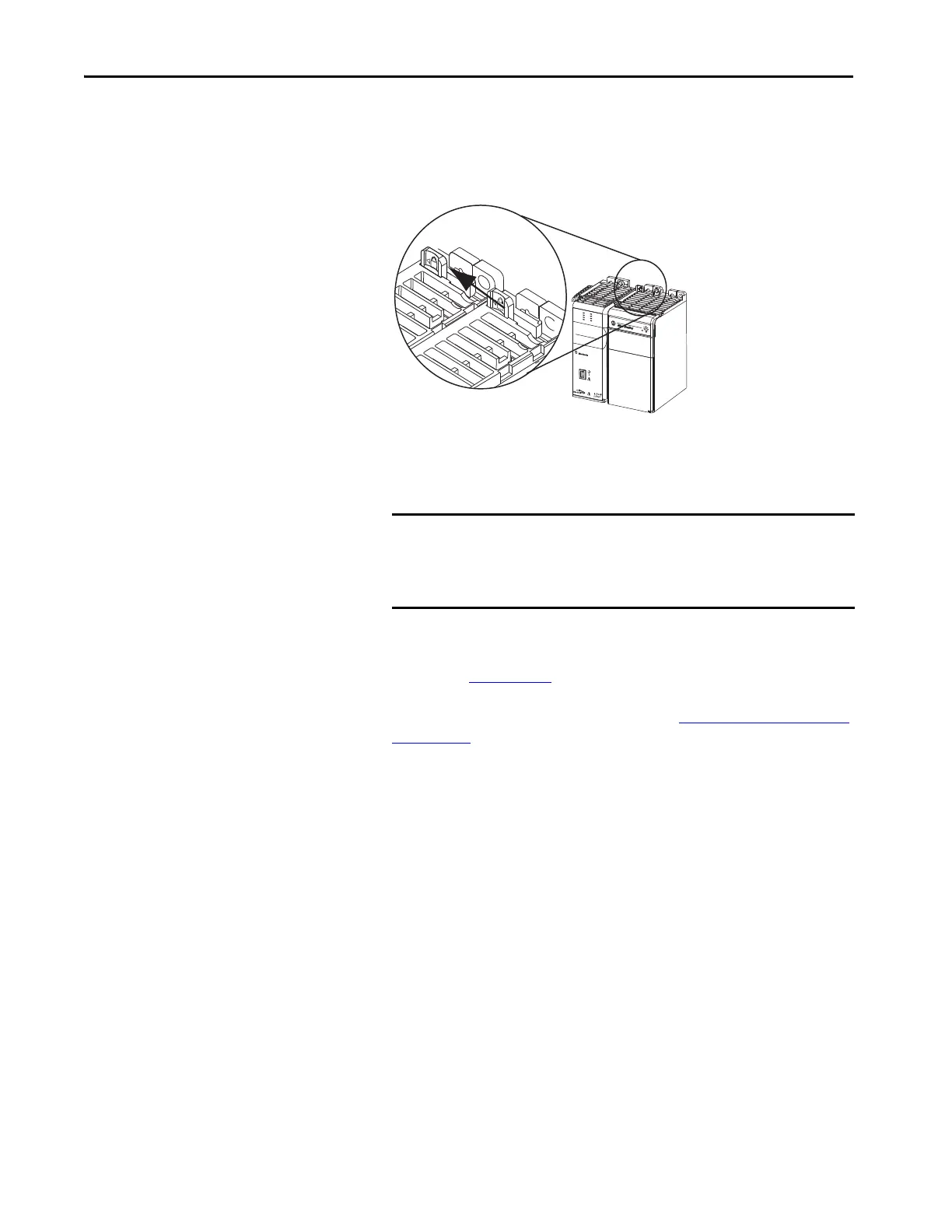

5. Use your fingers or a small screwdriver to push the bus lever of the power
supply back slightly to clear the positioning tab.
6. Move the bus lever of the power supply fully to the left until it clicks,
which makes sure that it locks.
7. If your system does not use any local expansion modules, use the tongue-
and-groove slots described earlier to attach a 1769-ECR Compact I/O
end cap terminator to the last module in the system.
8. Wire the 1769 Compact I/O power supply according to the directions
in the Compact I/O Expansion Power Supplies installation instructions,
publication 1769-IN028
.
If you are using local expansion modules, see Local Expansion Modules
on page 236.
IMPORTANT You must install an end cap onto the right side of the
CompactLogix 5370 L3 controller system either at the end of the
controller. You must also install an end cap at the end of any local
expansion modules that can be installed onto the controller.
