Rockwell Automation Allen-Bradley PowerMonitor 5000 Unit User Manual

24 Rockwell Automation Publication 1426-UM001J-EN-P - August 2019
Chapter 2 Install the PowerMonitor 5000 Unit

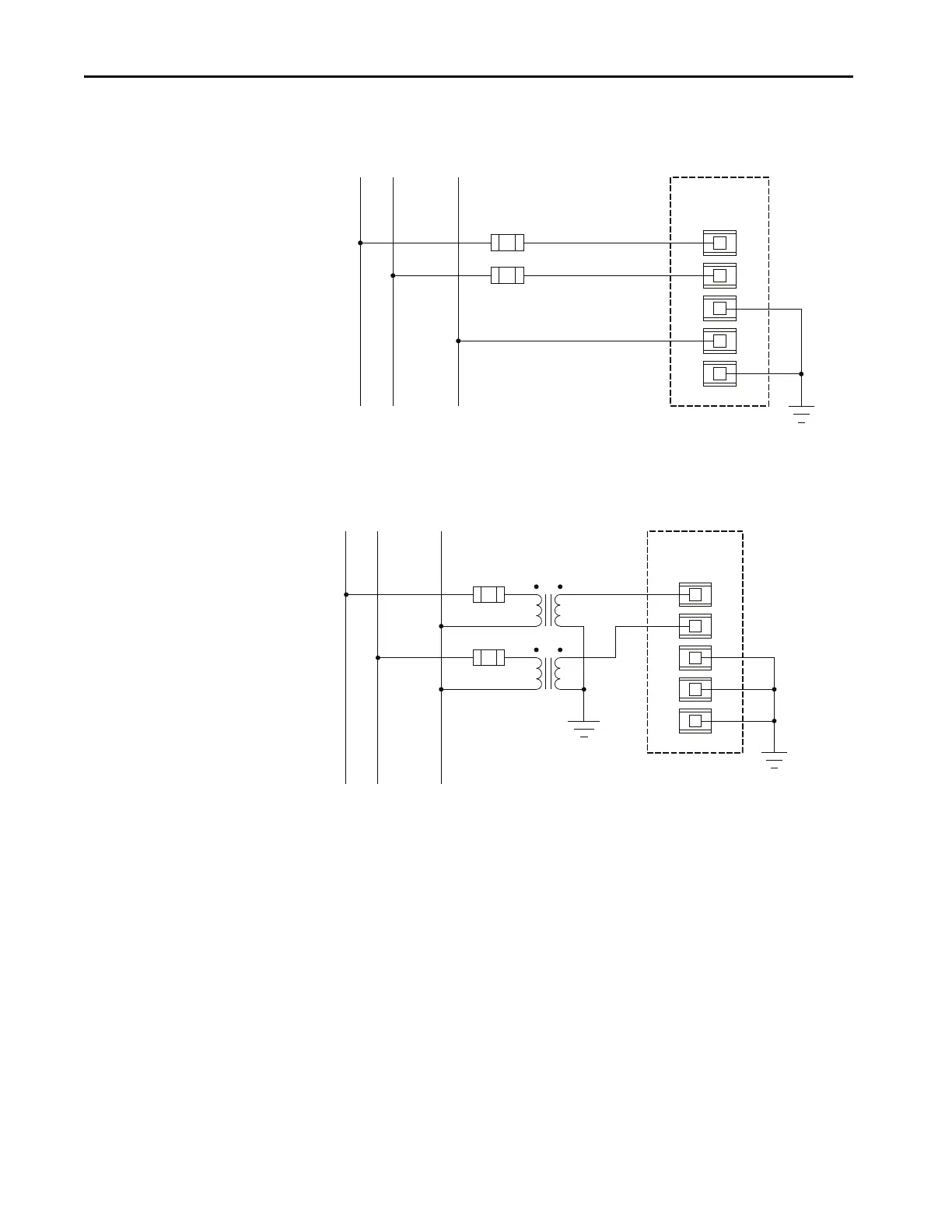

Figure 10 - Diagram V7 - Split-phase (690V AC Line-to-line Maximum)
Figure 11 - Diagram V8 - Split-phase with PTs
Metering_Mode = Split-phase
V1
V2
VG
V3
VN
PowerMonitor 5000
Fuses (by user)
L1 L2 L3 N
Line
Ground
Load
Metering_Mode = Split-phase
V1
V2
VG
V3
VN
PowerMonitor 5000
Fuses (by user)
PTs (by user)
L1 L2 N
Line
Ground
Ground
Load
