260 Rockwell Automation Publication 1426-UM001J-EN-P - August 2019
Chapter 9 Communication

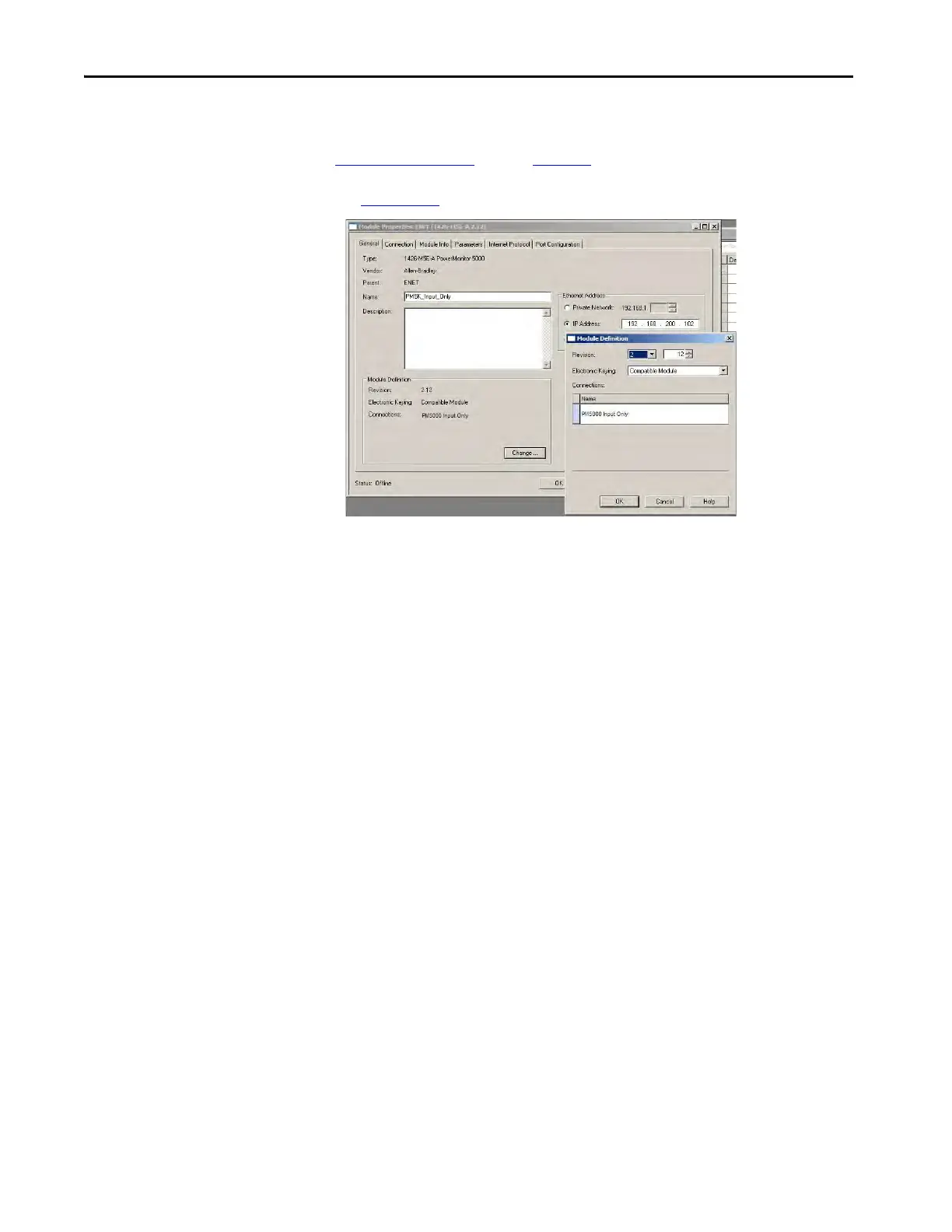

When you first set up an Input Only connection, the following module-defined
controller tag is created: <ModuleName>:I, the Input tag, mapped to the
ScheduledData.Input
table on page 272.
See Appendix A
for the content of the data table.
CIP Energy Object
The EtherNet/IP communication protocol complies with the Common
Industrial Protocol (CIP) and the EtherNet/IP implementation of the CIP
specification, which is published by ODVA. The CIP object library includes the
following energy-related objects:
• Base Energy Object, Class Code 0x4E
• Electrical Energy Object, Class Code 0x4F
The PowerMonitor 5000 unit provides support of the base and electrical energy
objects.
