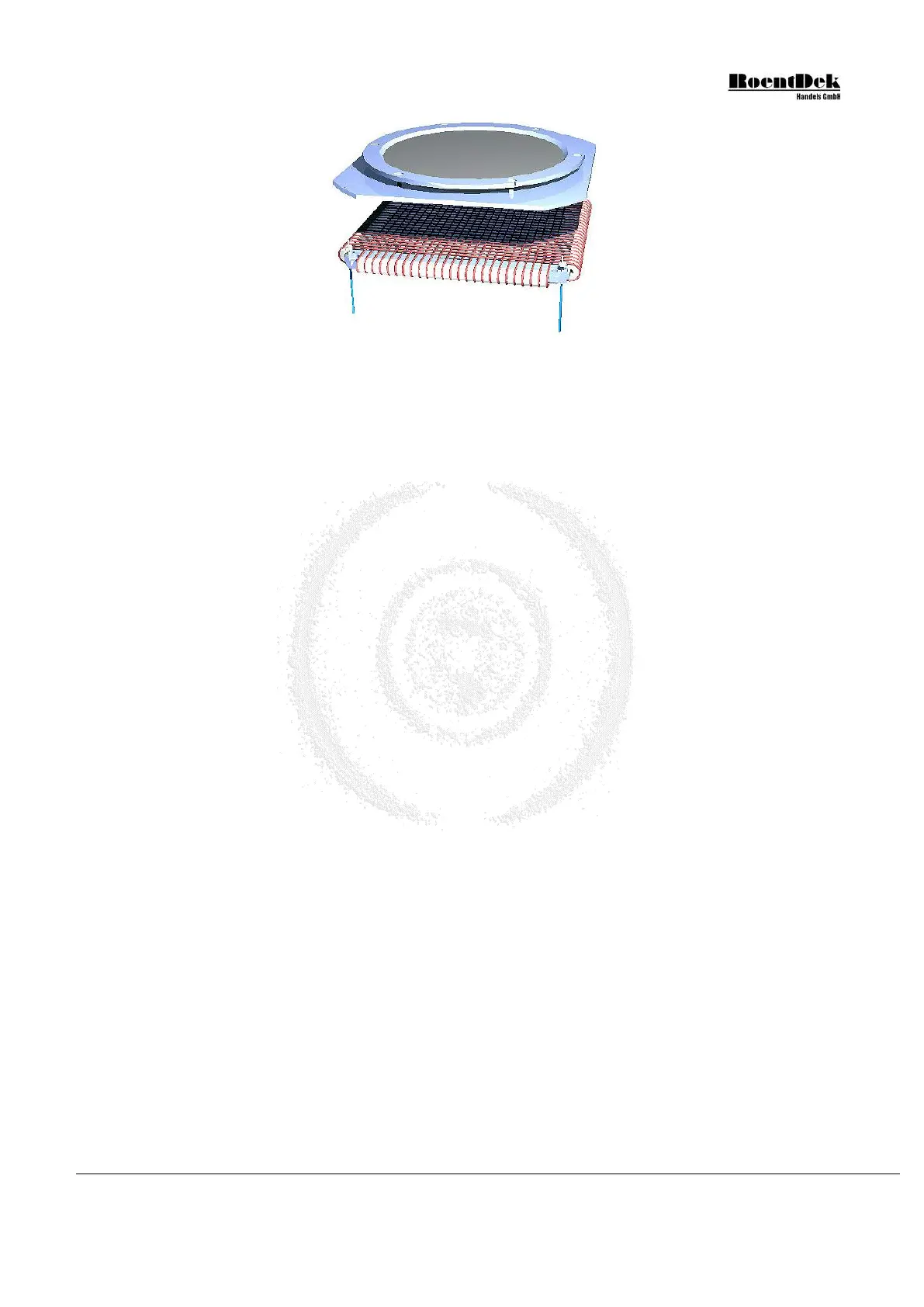

Figure 1.26: Assembly of MCP-stack - Stage 4 (DLD120 and HEX120) only for old systems
The recommended distance between the MCP back plate and the anode body plate is about 8mm.
A woven potential mesh wMesh120 can be supplied for being placed on the MCP front side. Please contact
RoentDek for
this option.
