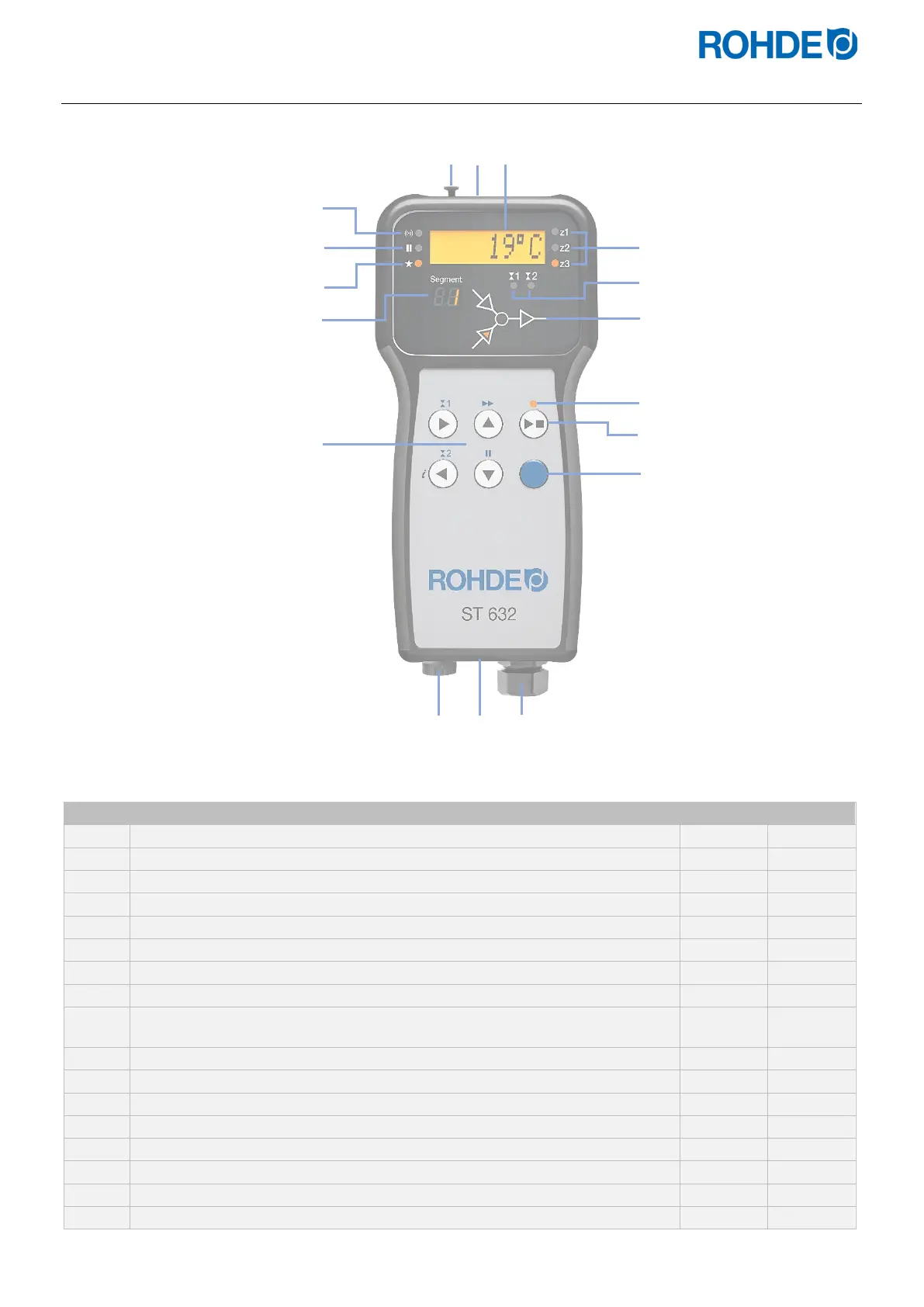

2.3. Control unit overview
Nr. Beschreibung ST 630 ST 632
1
USB-port
X
X
2
“USB flash drive plugged into USB port” indicator
X
X
3
Main display
X
X
4
“Kiln heating zone 1/2/3 active” indicator
X
X
5
“Data transfer” indicator
X
X
6
“Pause“ indicator
X
X
7
“Kiln heating up” indicator
X
X
8
Segment indicator
X
X
9
Switch output 1 (event 1) and switch output 2 (event 2) indicator
(present with ST 630, but not active)
X
X
10
Graphical program operation display
X
X
11
“Program running” indicator
X
X
12
Start/stop key
X
X
13
“Function“ key
X
X
14
Control keys
X
X
15
Fuse
X
X
16
Mains switch
X
X
17
Cable connection to the kiln
X
X
10
1
2
5
3
14
15
16
17
4
6
7
8
9
11
12
13
