2.4. Connector features
2.4.1. CPC 14 connector (ST 630 only)
The control unit ST 630 is connected to the kiln via a 14-pin connector.
Features:
• CPC 14 connector
• 14-pin screw connection
• Bayonet fitting
The black 14-pin socket provided for this is located on the switch cabinet of the kiln (near the electrical supply line).

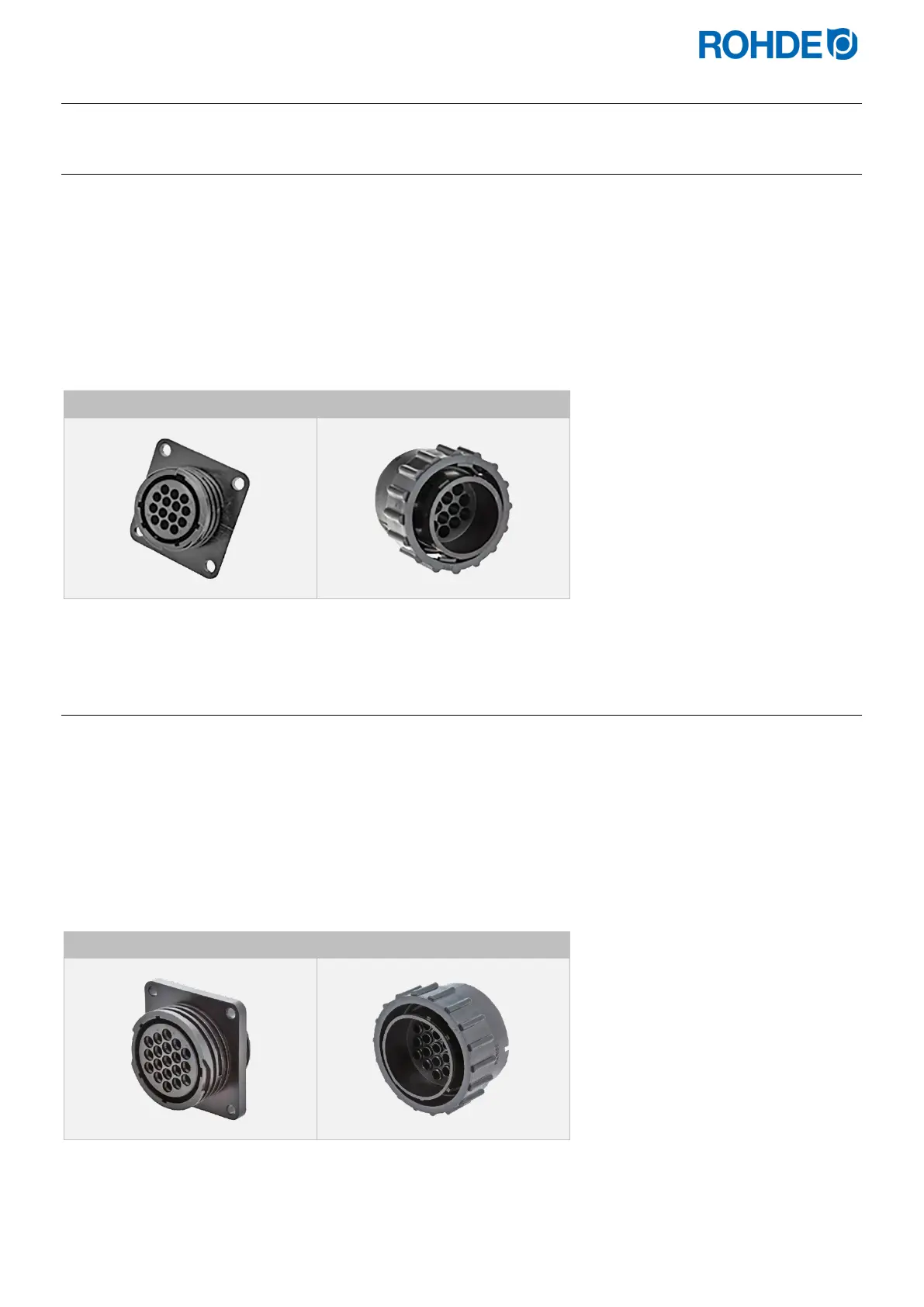

CPC 14 kiln socket CPC 14 controller plug
2.4.2. CPC 19 connector (ST 632 only)
The control unit ST 632 is connected to the kiln via a 19-pin connector.
Features:
• CPC 19 connector
• 19-pin screw connection
• Bayonet fitting
The black 19-pin socket provided for this is located on the switch cabinet of the kiln (near the electrical supply line).
CPC 19 kiln socket CPC 19 controller plug
