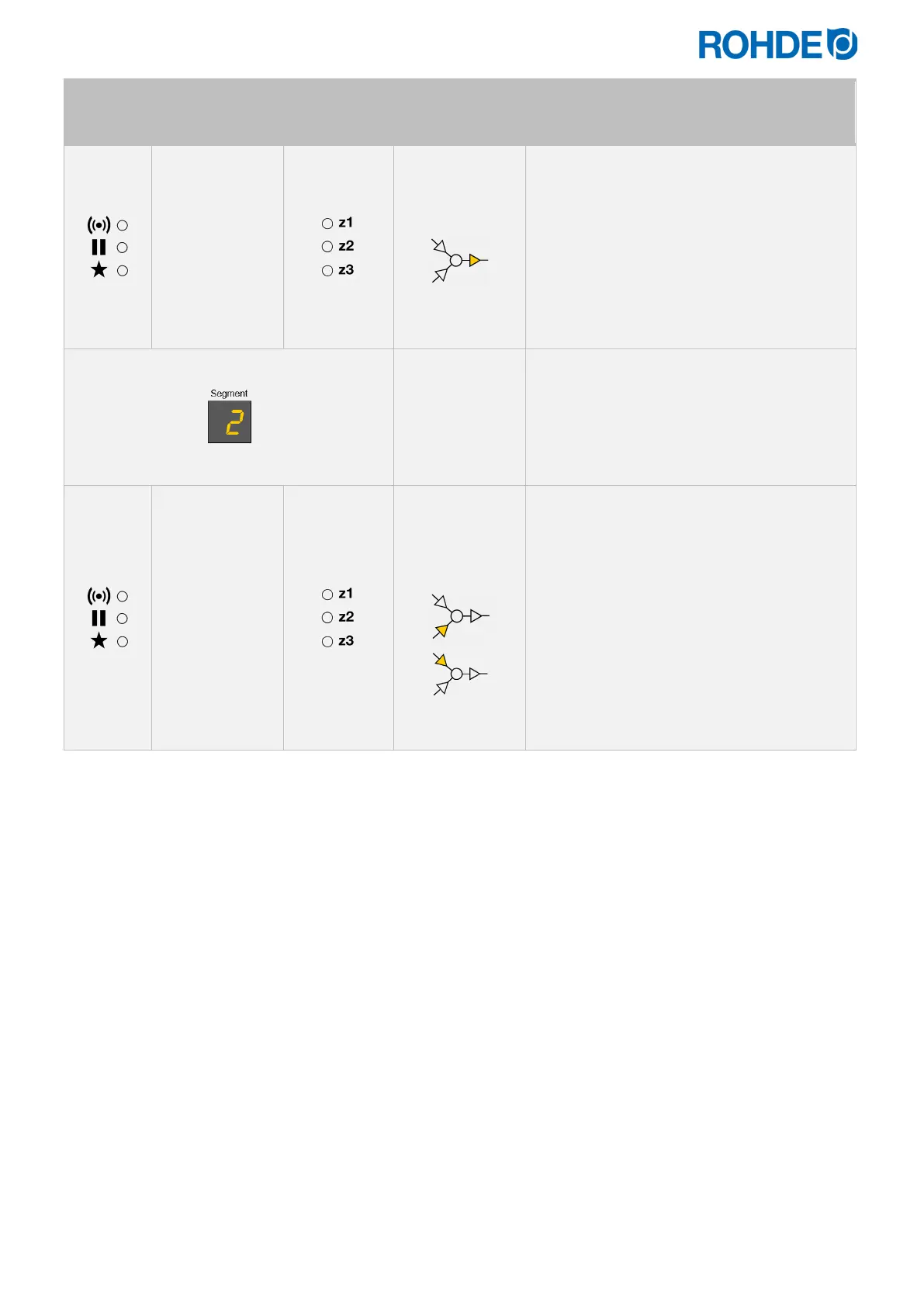

Indicator
on the
left
Main display
Heating
zone display
on the right
Meaning Description
00 : 15
Soak time
• The next push of the g key displays the
soak period in “hours:minutes”.
• This can be altered in the range 00:00 to
99:59 with the d and f keys.
• The soak period indicator on the graphical
display will flash.
Notes:
⇒ To program the additional switch outputs
1 & 2 see section 7.4.
Indicator in the
segment display
The next press of the g key increments the
segment number digit and firing values for the
next segment can be entered.
⇒ The entry of the values is carried out in the
same way as for the entry of the first
segment.
END
End program
input
• To mark the end of the program, push the
f key until “END” appears in the main
display.
• To end the program input, press the g
key.
Notes:
⇒ Program input is also automatically
terminated if the maximum number of
segments have been entered.
⇒ If “END” is not entered in the last segment,
the controller issues the error message
“Error P” when the program starts.
*The keys h or g can also be held down for faster input.
Note:
• It is possible to exit programming mode without performing all of the steps described above. To do this, wait 20
seconds without pressing a key and the controller will revert to the idle display. All changes are automatically
applied and saved immediately.
• Alternatively, exit the programming mode with the
j key and start the firing process immediately; all changes
made are automatically saved, however.
• The
h or g keys can be used to cycle through the programming steps to correct errors or to exit
programming mode.
• The switch output (event) can be added or deselected by pressing the switch output (event) key while
programming the heating ramp, cooling ramp and soak time (see Section 7.).
