Roland Jupiter-Xm Reference Manual

27

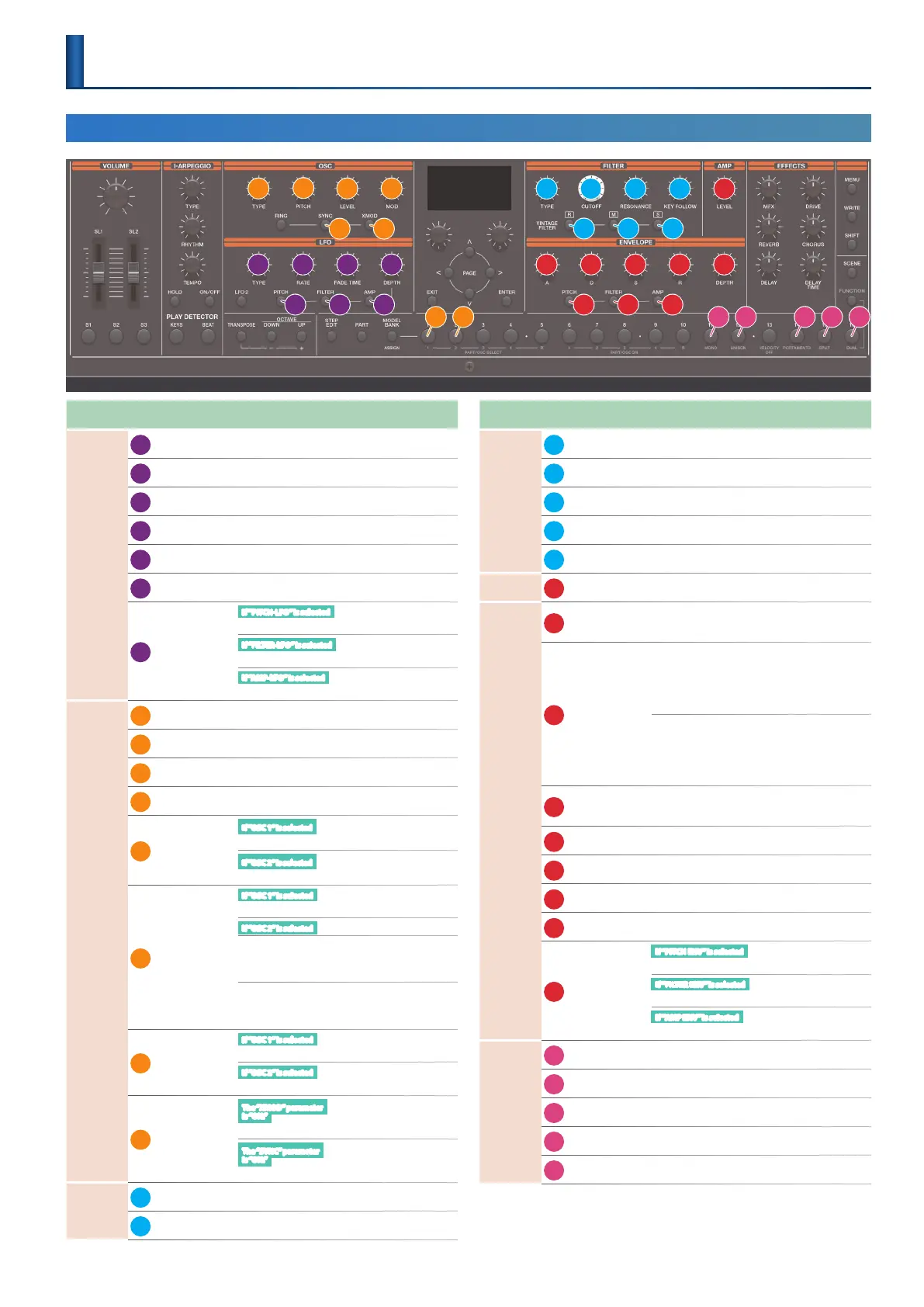

Correspondence Between Controllers and Parameters
JUPITER-8
12
13
14 15
19 20 21 22 23
27 28 29 30 31 4 5 6 7
10 11
1 2 3
9 8
18 17
16
24 25 26
32 33 34 36 35
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH-LFO
2
FILTER Select FILTER-LFO
3
AMP Select AMP-LFO
4
TYPE LFO WAVEFORM JP8: LFO WAVEFORM
5
RATE LFO RATE JP8: LFO RATE
6
FADE TIME LFO DELAY TIME JP8: LFO DELAY TIME
7
DEPTH
If “PITCH-LFO” is selected
LFO MOD
JP8: LFO MOD
If “FILTER-LFO” is selected
FILTER MOD
JP8: FILTER MOD
If “AMP-LFO” is selected
AMP MOD-STEP
JP8: AMP MOD-STEP
OSC
8
OSC1 SEL Select OSC1 (*1)
9
OSC2 SEL Select OSC2 (*1)
10
SYNC
Select SYNC MOD
MODE
JP8: SYNC SWITCH
11
XMOD
Select XMOD MOD
MODE
JP8: SYNC SWITCH
12
TYPE
If “OSC 1” is selected
OSC1 WAVEFORM
JP8: OSC1 WAVEFORM
If “OSC 2” is selected
OSC2 WAVEFORM
JP8: OSC2 WAVEFORM
13
Pitch
If “OSC 1” is selected
OSC1 RANGE
JP8: OSC1 RANGE
If “OSC 2” is selected
The “TONE EDIT > OSC2
MODE” parameter is
“NORMAL.”
OSC2 RANGE
JP8: OSC2 RANGE
The “TONE EDIT > OSC2
MODE” parameter is “LOW
FREQ.”
LOW FREQ
JP8: LOW FREQ
14
LEVEL
If “OSC 1” is selected
OSC1 LEVEL
JP8: OSC1 LEVEL
If “OSC 2” is selected
OSC2 LEVEL
JP8: OSC2 LEVEL
15
MOD
The “XMOD” parameter
is “ON.”
CROSS MOD
JP8: CROSS MOD
The “SYNC” parameter
is “ON.”
OSC2 FINE TUNE
JP8: OSC2 FINE TUNE
FILTER
16
[R]
Change FILTER TYPE
JP8: VINTAGE FLT TYPE
17
[M]
Change FILTER TYPE
JP8: VINTAGE FLT TYPE
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
FILTER
18
[S]
Change FILTER TYPE
JP8: VINTAGE FLT TYPE
19
TYPE FILTER SLOPE JP8: FILTER SLOPE
20
CUTOFF CUTOFF JP8: CUTOFF
21
RESONANCE RESONANCE JP8: RESONANCE
22
KEY FOLLOW FLT KEY FOLLOW JP8: FLT KEY FOLLOW
AMP
23
LEVEL AMP LEVEL JP8: AMP LEVEL
ENV
24
Pitch
Select ENV-1
Change ENV-1 to
PITCH ENV
25
FILTER
The “TONE EDIT > FILTER
ENV MODE” parameter is
“ENV1.”
Select ENV1
Change ENV1 to
FILTER ENV
The “TONE EDIT > FILTER
ENV MODE” parameter is
“ENV2.”
Select ENV2
Change ENV2 to
FILTER ENV
26
AMP
Select ENV-2
Change ENV-2 to
AMP-ENV
27
A ENV1/2 ATTACK JP8: ENV1/2 ATTACK
28
D ENV1/2 DECAY JP8: ENV1/2 DECAY
29
S ENV1/2 SUSTAIN JP8: ENV1/2 SUSTAIN
30
R ENV1/2 RELEASE JP8: ENV1/2 RELEASE
31
DEPTH
If “PITCH ENV” is selected
PIT ENV DEPTH
JP8: PIT ENV DEPTH
If “FILTER ENV” is selected
FLT ENV DEPTH
JP8: FLT ENV DEPTH
If “AMP ENV” is selected
Not operable
EDIT
32
MONO MONO JP8: KEY MODE
33
UNISON UNISON JP8: KEY MODE
34
PORTAMENTO PORTAMENTO JP8: PORTA TIME
35
SPLIT SPLIT
36
DUAL DUAL L/R DUAL
* 1 Valid only in function mode.
* For other parameters, refer to “Parameter Guide” (PDF).

Roland Jupiter-Xm Specifications

Power

dc voltage	12 V
current draw	1, 500 mA
battery type	Ni-MH battery (AA, HR6) x 8
battery life	approximately 3.5 hours

Display

display type	Graphic LCD
display resolution	128 x 64 dots

Audio

speaker amplifier power	4 W x 2
full range speaker size	3.5 x 8 cm x 2
tweeter size	2 cm x 2

Weight and Dimensions

weight	4.4 kg, 9 lbs 12 oz
width	576 mm, 22-11/16 inches
depth	308 mm, 12-1/8 inches
height	93 mm, 3-11/16 inches
