Roland Jupiter-Xm Reference Manual

32
Reference Manual Ver. 1.5 and later

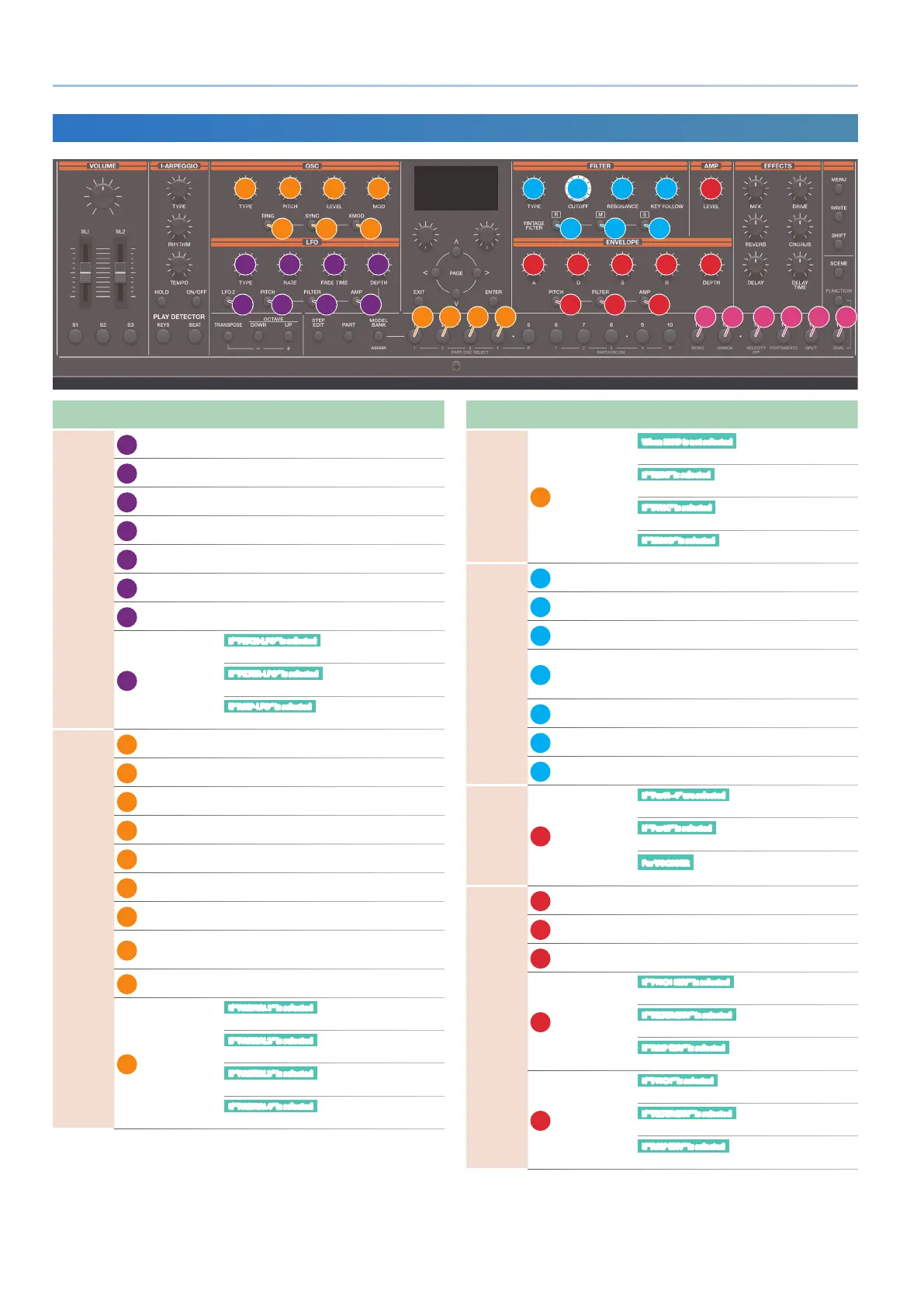

XV-5080, RD-PIANO, and Other Tones (When the [MODEL BANK] Button Is Lit)
16
17
18 19
23 24 25 26 27
31 32 33 34 35 5 6 7 8
13 14 15
1 2 3 4
10 11 12 9
22 21
20
28 29 30
36 37 38 39 40 41
Section
Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
LFO2 Select LFO2
2
Pitch Select PITCH-LFO (*1)
3
FILTER Select FILTER-LFO (*1)
4
AMP Select AMP-LFO (*1)
5
TYPE L1/2 Waveform
TONE EDIT > L1/2
Waveform
6
RATE L1/2 Rate TONE EDIT > L1/2 Rate
7
FADE TIME L1/2 Fade Time
TONE EDIT > L1/2 Fade
Time
8
DEPTH
If “PITCH-LFO” is selected
L1/2 Pit Depth
TONE EDIT > L1/2 Pit
Depth
If “FILTER-LFO” is selected
L1/2 Flt Depth
TONE EDIT > L1/2 Flt
Depth
If “AMP-LFO” is selected
L1/2 Amp Depth
TONE EDIT > L1/2 Amp
Depth
OSC
9
OSC1 SEL Select PARTIAL1 (*2) PARTIAL1 Sw ON/OFF
10
OSC2 SEL Select PARTIAL2 (*2) PARTIAL2 Sw ON/OFF
11
OSC3 SEL Select PARTIAL3 (*2) PARTIAL3 Sw ON/OFF
12
OSC4 SEL Select PARTIAL4 (*2) PARTIAL4 Sw ON/OFF
13
RING
Select RING MOD
MODE
TONE COMMON EDIT >
Struct12/34
14
SYNC
Select SYNC MOD
MODE
TONE COMMON EDIT >
Struct12/34
15
XMOD
Select XMOD MOD
MODE
TONE COMMON EDIT >
Struct12/34
16
TYPE
Simultaneously
change OSC Type/
Wav Form
TONE EDIT > Wav Form
17
PITCH Coarse Tune TONE EDIT > Coarse Tune
18
LEVEL
If “PARTIAL1” is selected
PARTIAL1 LEVEL
TONE EDIT PARTIAL1 >
Level
If “PARTIAL2” is selected
PARTIAL2 LEVEL
TONE EDIT PARTIAL2 >
Level
If “PARTIAL3” is selected
PARTIAL3 LEVEL
TONE EDIT PARTIAL3 >
Level
If “PARTIAL4” is selected
PARTIAL4 LEVEL
TONE EDIT PARTIAL4 >
Section
Controller Parameter
Destination or operation when
used with the [SHIFT] button
OSC
19
MOD
When MOD is not selected
Fine Tune
TONE EDIT > Fine Tune
If “RING” is selected
Ring OSC2/4 Lv
TONE COMMON EDIT >
Ring OSC2/4 Lv
If “SYNC” is selected
Fine Tune
TONE EDIT > Fine Tune
If “XMOD” is selected
XMd12 Dpth
TONE COMMON EDIT >
XMd12 Dpth
FILTER
20
[R] Change VCF TYPE TONE EDIT > VCF Type
21
[M] Change VCF TYPE TONE EDIT > VCF Type
22
[S] Change VCF TYPE TONE EDIT > VCF Type
23
TYPE
Simultaneously
change TVF Type/
Filter Type/Flt Slope/
VCF Type
TONE EDIT > VCF Type
24
CUTOFF Cuto TONE EDIT > Cuto
25
RESONANCE Resonance TONE EDIT > Resonance
26
KEY FOLLOW Cuto Keyf (*5) TONE EDIT > Cuto Keyf
AMP
27
LEVEL
If “Part1–4” are selected
Level
TONE COMMON EDIT
> Level
If “Part5” is selected
Part Level
SCENE PART EDIT > Part
Level
For VOCODER
Level
SCENE PART EDIT > Part
Level
ENV
28
Pitch Select PITCH ENV (*3)
29
FILTER Select FILTER ENV (*3)
30
AMP Select AMP ENV (*3)
31
A
If “PITCH ENV” is selected
Pit Time1
TONE EDIT > Pit Time1
If “FILTER ENV” is selected
Filtr Time1
TONE EDIT > Filtr Time1
If “AMP ENV” is selected
Amp Time1
TONE EDIT > Amp Time1
32
D
If “PITCH” is selected
Pit Time3
TONE EDIT > Pit Time3
If “FILTER ENV” is selected
Filtr Time3
TONE EDIT > Filtr Time3
If “AMP ENV” is selected
Amp Time3
TONE EDIT > Amp Time3

Roland Jupiter-Xm Specifications

Power

dc voltage	12 V
current draw	1, 500 mA
battery type	Ni-MH battery (AA, HR6) x 8
battery life	approximately 3.5 hours

Display

display type	Graphic LCD
display resolution	128 x 64 dots

Audio

speaker amplifier power	4 W x 2
full range speaker size	3.5 x 8 cm x 2
tweeter size	2 cm x 2

Weight and Dimensions

weight	4.4 kg, 9 lbs 12 oz
width	576 mm, 22-11/16 inches
depth	308 mm, 12-1/8 inches
height	93 mm, 3-11/16 inches
