Roland Jupiter-Xm Reference Manual

29
Reference Manual Ver. 1.5 and later

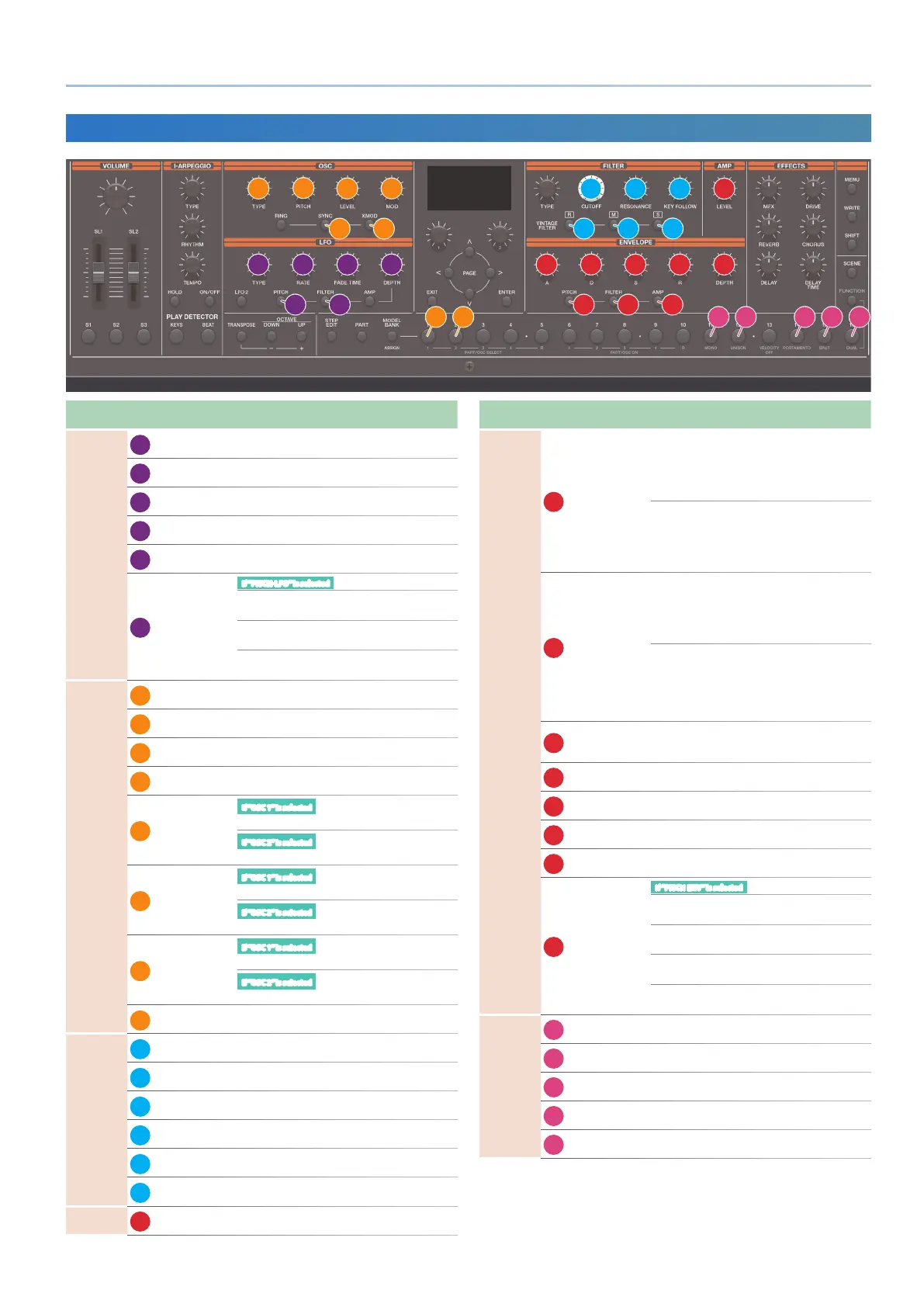

JX-8P
11
12
13 14
18 19 20 21
25 26 27 28 29 3 4 5 6
9 10
1 2
8 7
17 16
15
22 23 24
30 31 32 33 34
Section
Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH-LFO
2
FILTER Select FILTER-LFO
3
TYPE LFO WAVEFORM JX8P: LFO WAVEFORM
4
RATE LFO RATE JX8P: LFO RATE
5
FADE TIME LFO DELAY TIME JX8P: LFO DELAY TIME
6
DEPTH
If “PITCH-LFO” is selected
If “OSC 1” is selected
OSC1 LFO MOD
JX8P: OSC1 LFO MOD
If “OSC 2” is selected
OSC2 LFO MOD
JX8P: OSC2 LFO MOD
If “FILTER-LFO” is selected
FILTER MOD
JX8P: FILTER MOD
OSC
7
OSC1 SEL Select OSC1 (*1)
8
OSC2 SEL Select OSC2 (*1)
9
SYNC
SYNC MOD MODE
ON/OFF
JX8P: OSC2 MOD MODE
10
XMOD
XMOD MOD MODE
ON/OFF
JX8P: OSC2 MOD MODE
11
TYPE
If “OSC 1” is selected
OSC1 WAVEFORM
JX8P: OSC1 WAVEFORM
If “OSC 2” is selected
OSC2 WAVEFORM
JX8P: OSC2 WAVEFORM
12
Pitch
If “OSC 1” is selected
OSC1 TUNE
JX8P: OSC1 TUNE
If “OSC 2” is selected
OSC2 TUNE
JX8P: OSC2 TUNE
13
LEVEL
If “OSC 1” is selected
OSC1 LEVEL
JX8P: OSC1 LEVEL
If “OSC 2” is selected
OSC2 LEVEL
JX8P: OSC2 LEVEL
14
MOD OSC2 FINE TUNE JX8P: OSC2 FINE TUNE
FILTER
15
[R] Change FILTER TYPE JX8P: VINTAGE FLT TYPE
16
[M] Change FILTER TYPE JX8P: VINTAGE FLT TYPE
17
[S] Change FILTER TYPE JX8P: VINTAGE FLT TYPE
18
CUTOFF CUTOFF JX8P: CUTOFF
19
RESONANCE RESONANCE JX8P: RESONANCE
20
KEY FOLLOW FLT KEY FOLLOW JX8P: FLT KEY FOLLOW
AMP
21
LEVEL AMP LEVEL JP8: AMP LEVEL
Section
Controller Parameter
Destination or operation when
used with the [SHIFT] button
ENV
22
Pitch
The “TONE EDIT > OSC
ENV MODE” parameter is
“ENV1.”
Select ENV1
Change ENV1 to OSC
ENV
The “TONE EDIT > OSC
ENV MODE” parameter is
“ENV2.”
Select ENV2
Change ENV2 to OSC
ENV
23
FILTER
The “TONE EDIT > FILTER
ENV MODE” parameter is
“ENV1.”
Select ENV1
Change ENV1 to
FILTER ENV
The “TONE EDIT > FILTER
ENV MODE” parameter is
“ENV2.”
Select ENV2
Change ENV2 to
FILTER ENV
24
AMP
Select ENV-2
Change ENV-2 to
AMP ENV
25
A ENV1/2 ATTACK JX8P: ENV1/2 ATTACK
26
D ENV1/2 DECAY JX8P: ENV1/2 DECAY
27
S ENV1/2 SUSTAIN JX8P: ENV1/2 SUSTAIN
28
R ENV1/2 RELEASE JX8P: ENV1/2 RELEASE
29
DEPTH
If “PITCH ENV” is selected
If “OSC 1” is selected
OSC1 PIT ENV
JX8P: OSC1 PIT ENV
If “OSC 2” is selected
OSC2 PIT ENV
JX8P: OSC2 PIT ENV
If “FILTER ENV” is selected
FLT ENV DEPTH
JX8P: FLT ENV DEPTH
If “AMP ENV” is selected
Not operable
EDIT
30
MONO MONO JX8P: KEY MODE
31
UNISON UNISON JX8P: KEY MODE
32
PORTAMENTO PORTAMENTO JX8P: PORTA TIME
33
SPLIT SPLIT
34
DUAL DUAL L/R DUAL
* 1 Valid only in function mode.
* For other parameters, refer to “Parameter Guide” (PDF).

Roland Jupiter-Xm Specifications

Power

dc voltage	12 V
current draw	1, 500 mA
battery type	Ni-MH battery (AA, HR6) x 8
battery life	approximately 3.5 hours

Display

display type	Graphic LCD
display resolution	128 x 64 dots

Audio

speaker amplifier power	4 W x 2
full range speaker size	3.5 x 8 cm x 2
tweeter size	2 cm x 2

Weight and Dimensions

weight	4.4 kg, 9 lbs 12 oz
width	576 mm, 22-11/16 inches
depth	308 mm, 12-1/8 inches
height	93 mm, 3-11/16 inches
