7
Reference Manual Ver. 1.5 and later
B
[L] switch
This turns the power on/o (p. 12).
C
DC-IN jack
Connect the included AC adaptor here.
* Fasten the AC adaptor cord into the cord guide on the bottom surface as
shown in the illustration.
AC Adaptor
D
MIDI (OUT/IN) ports
Used for connecting external MIDI devices and for transmission of MIDI
messages.
E
CTRL jack
Connect an expression pedal (EV-5; sold separately).
* Use only the specied expression pedal. By connecting any other expression
pedals, you risk causing malfunction and/or damage to the unit.
F
HOLD jack
Connect a pedal switch (DP series; sold separately).
G
AUX IN jack
Connect an external audio device.
Use a stereo mini plug for this connection.
H
MIC
[MIC GAIN] knob
Adjusts the volume of the mic input.
MIC IN jack
Connect a dynamic microphone
or electret condenser microphone
(plug-in power system) here.
* A condenser microphone (phantom
powered) cannot be used.
I
OUTPUT L/R jacks
These are output jacks for audio signals.
J
OUTPUT (BALANCED) L/R jacks
These are output jacks for audio
signals.
K
PHONES jack
You can connect a set of headphones here.
L
USB port
USB MEMORY port
You can connect a USB ash drive here.
Connect or disconnect the USB ash drive while the JUPITER-Xm is
powered-o.
* Never turn o the power or disconnect the USB ash drive during a process,
such as while the “Executing… display is shown.
USB COMPUTER port
Use a USB cable to connect this port to a USB port of your computer.
This allows the JUPITER-Xm to operate as a USB MIDI device.
M
Ground terminal
* Connect this to an external earth or ground if necessary.
1: GND2: HOT
3: COLD
入力端子の場合
1: GND 2: HOT
3: COLD
出力端子の場合
TIP: HOT
RING: COLD
SLEEVE: GND
Pin assignment of MIC IN jack
Pin assignment of OUTPUT (BALANCED) L/R jacks
1: GND2: HOT
3: COLD
入力端子の場合
1: GND
2: HOT
3: COLD
出力端子の場合
TIP: HOT
RING: COLD
SLEEVE: GND

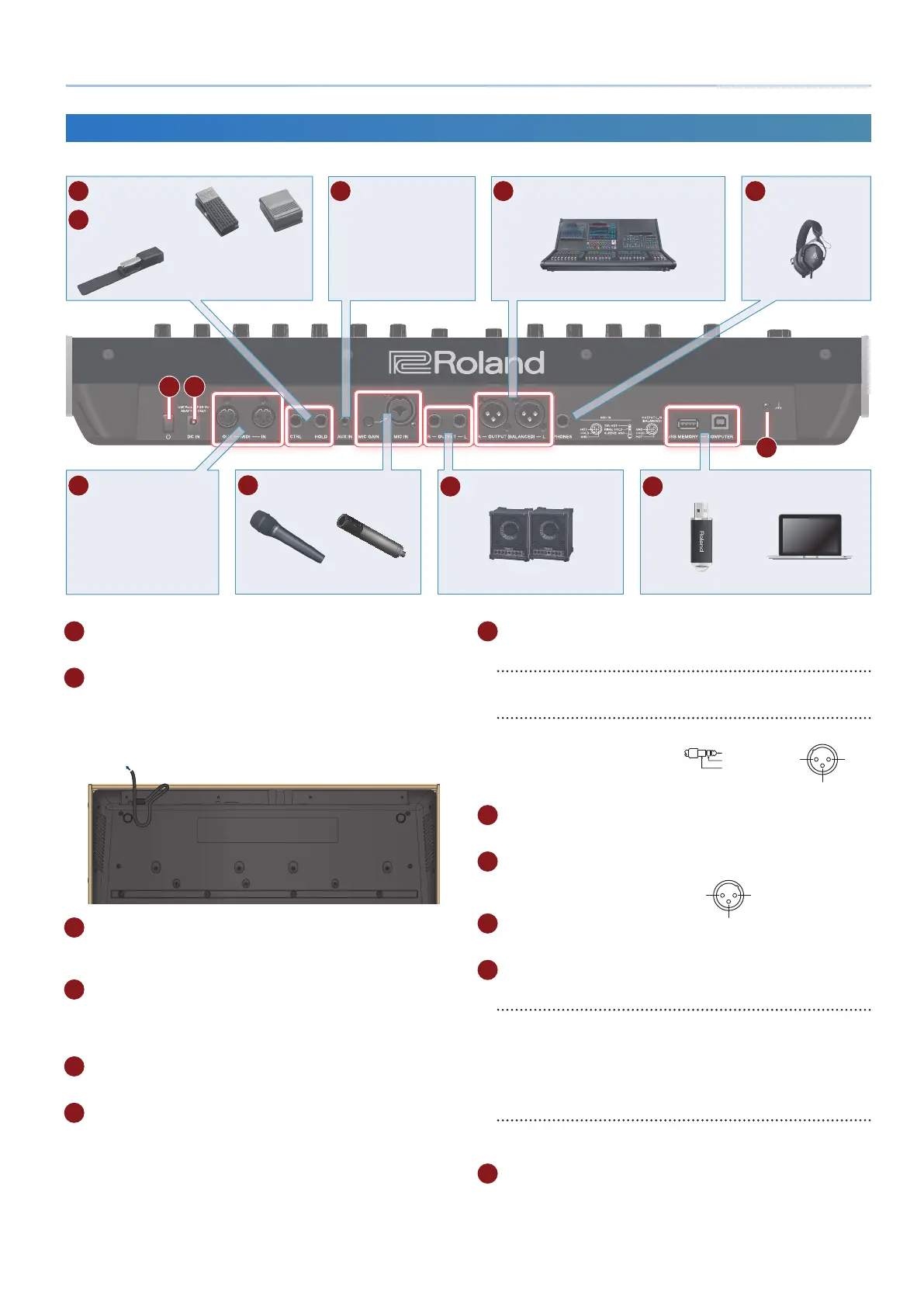

Rear Panel (Connecting Your Equipment)
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
G
AUX IN jack
Connect an audio device.
L
USB port
D
MIDI ports
Connect a MIDI device.
I
OUTPUT jacks
K
PHONES jack
H
MIC
J
OUTPUT (BALANCED) jacks
E
CTRL jack
F
HOLD jack
B C
Expression pedal (EV-5)
or
Pedal switch (DP series)
Mixer
Dynamic microphone
Electret microphone (mono)
Monitor speaker
(Amplier built-in)
USB ash drive Computer
Headphones
M
