Roland Jupiter-Xm Reference Manual

9

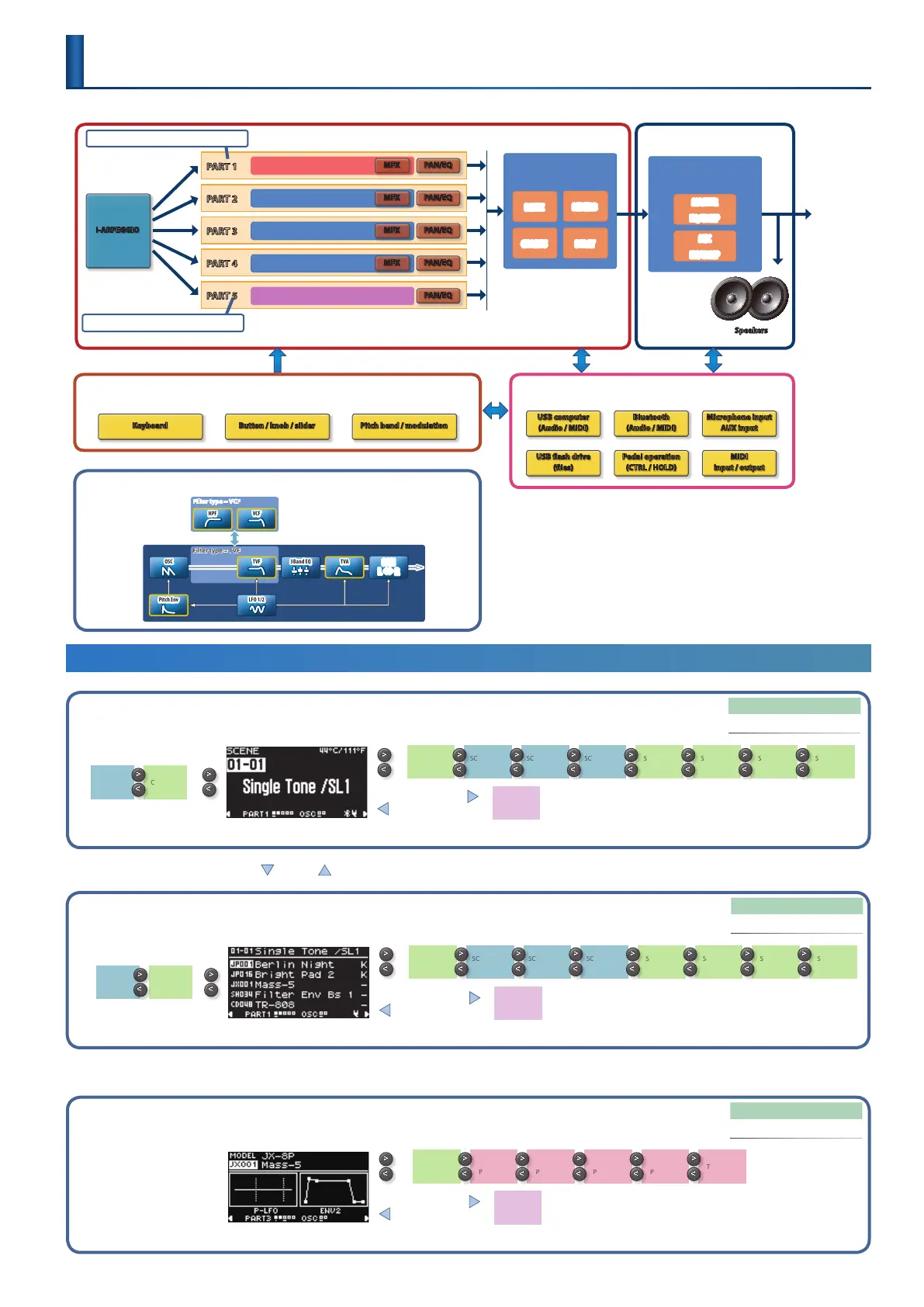

Basic Structure (Screen Transition Diagram)
An Overview of the JUPITER-Xm
Controller
Keyboard Button / knob / slider Pitch bend / modulation
Tone
Filter type = TVF
TVA
PAN
L
#
R
TVF
3Band EQ
Filter type = VCF
VCFHPF
LFO 1/2
Pitch Env
OSC
Interface
USB computer
(Audio / MIDI)
USB ash drive
(les)
Pedal operation
(CTRL / HOLD)
MIDI
input / output
Bluetooth
(Audio / MIDI)
Microphone input
AUX input
Scene System
System eect
MASTER
EQ/COMP
MIC
NS/COMP
OUTPUT
PHONES
I-ARPEGGIO
PART 1
Tone
MFX PAN/EQ
PART 2
Tone
MFX PAN/EQ
PART 3
Tone
MFX PAN/EQ
PART 4
Tone
MFX PAN/EQ
PART 5
Tone (Drum Kit)
PAN/EQ
Scene eect
DRIVE
CHORUS
REVERB
DELAY
Some models can be selected only for PART 1.
Drum kits can be selected only for PART 5.
Speakers
* Bluetooth audio supports only input. Audio
cannot be output to Bluetooth speakers or
headphones.
SCENE
ARP PART
EDIT
ARP
COMMON
EDIT
<
>
<
>
SCENE TOP screen
SCENE PART
MODEL
BANK
Á À À
SCENE
COMMON
EDIT
SCENE PART
EDIT
SCENE ZONE
EDIT
SCENE PART
MFX
SCENE EFX
CHORUS
SCENE EFX
DELAY
SCENE EFX
REVERB
SCENE EFX
OD
<
>
<
>
<
>
<
>
<
>
<
>
<
>
<
>
SCENE
SELECT
[ENTER] button
[EXIT] button
* The SCENE TOP screen appears when you press the
[EXIT] button.
Part select screen
PART
ARP PART
EDIT
ARP
COMMON
EDIT
<
>
<
>
SCENE PART
MODEL
BANK
Á Á À
SCENE
COMMON
EDIT
SCENE PART
EDIT
SCENE ZONE
EDIT
SCENE PART
MFX
SCENE EFX
CHORUS
SCENE EFX
DELAY
SCENE EFX
REVERB
SCENE EFX
OD
<
>
<
>
<
>
<
>
<
>
<
>
<
>
<
>
TONE LIST
[ENTER] button
[EXIT] button
* The part select screen appears when you press the
[EXIT] button.
* When the cursor is located at SCENE, press the [EXIT]
button to move to the SCENE TOP screen.
[PART] button
[PART] button
[EXIT] button
MODEL BANK
MODEL BANK TOP screen
SCENE PART
MODEL
BANK
À Á
TONE
COMMON
EDIT
TONE
PARTIAL 1
TONE
PARTIAL 2
TONE
PARTIAL 3
TONE
PARTIAL 4
TONE MFX
<
>
<
>
<
>
<
>
<
>
<
>
TONE LIST
[ENTER] button
[EXIT] button
* The MODEL BANK TOP screen appears when you press
the [EXIT] button.
* On the MODEL BANK TOP screen, press the [EXIT]
button to move to the SCENE TOP screen.

Roland Jupiter-Xm Specifications

Power

dc voltage	12 V
current draw	1, 500 mA
battery type	Ni-MH battery (AA, HR6) x 8
battery life	approximately 3.5 hours

Display

display type	Graphic LCD
display resolution	128 x 64 dots

Audio

speaker amplifier power	4 W x 2
full range speaker size	3.5 x 8 cm x 2
tweeter size	2 cm x 2

Weight and Dimensions

weight	4.4 kg, 9 lbs 12 oz
width	576 mm, 22-11/16 inches
depth	308 mm, 12-1/8 inches
height	93 mm, 3-11/16 inches
