Roland Jupiter-Xm Reference Manual

30
Reference Manual Ver. 1.5 and later

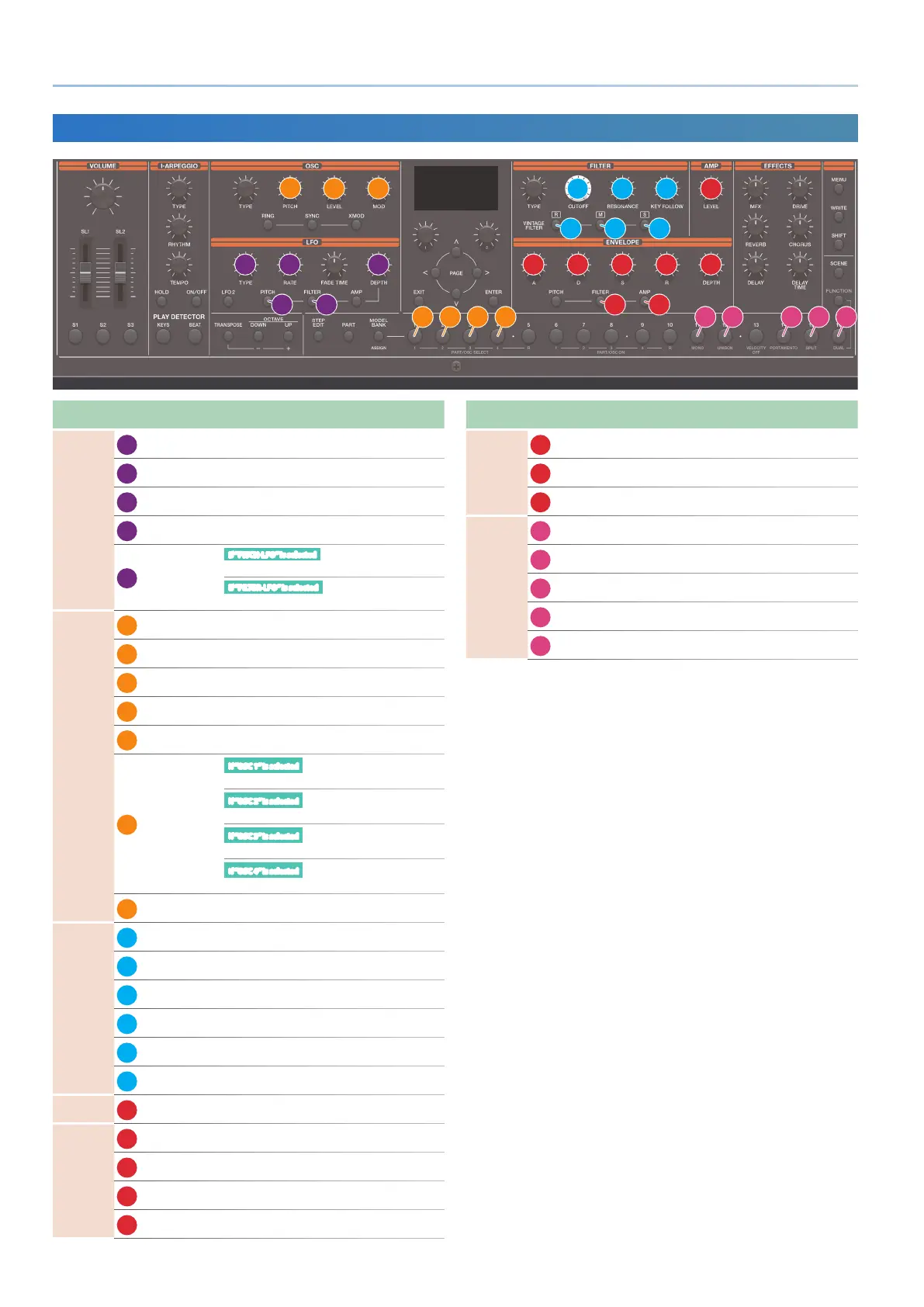

SH-101
10
11 12
16 17 18 19
22 23 24 25 26 3 4 5
1 2
7 8 9 6
15 14
13
20 21
27 28 29 30 31
Section
Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH-LFO
2
FILTER Select FILTER-LFO
3
TYPE LFO WAVEFORM SH: LFO WAVEFORM
4
RATE LFO RATE SH: LFO RATE
5
DEPTH
If “PITCH-LFO” is selected
OSC LFO MOD
SH: OSC LFO MOD
If “FILTER-LFO” is selected
FILTER MOD
SH: FILTER MOD
OSC
6
OSC1 SEL Select OSC1 (*1)
7
OSC2 SEL Select OSC2 (*1)
8
OSC3 SEL Select OSC3 (*1)
9
OSC4 SEL Select OSC4 (*1)
10
Pitch OSC RANGE SH: OSC RANGE
11
LEVEL
If “OSC 1” is selected
PW LEVEL
SH: PW LEVEL
If “OSC 2” is selected
SAW LEVEL
SH: SAW LEVEL
If “OSC 3” is selected
SUB OSC LEVEL
SH: SUB OSC LEVEL
If “OSC 4” is selected
NOISE LEVEL
SH: NOISE LEVEL
12
MOD PULSE WIDTH MOD SH: PULSE WIDTH MOD
FILTER
13
[R] Change FILTER TYPE SH: VINTAGE FLT TYPE
14
[M] Change FILTER TYPE SH: VINTAGE FLT TYPE
15
[S] Change FILTER TYPE SH: VINTAGE FLT TYPE
16
CUTOFF CUTOFF SH: CUTOFF
17
RESONANCE RESONANCE SH: RESONANCE
18
KEY FOLLOW FLT KEY FOLLOW SH: FLT KEY FOLLOW
AMP
19
LEVEL AMP LEVEL SH: AMP LEVEL
ENV
20
FILTER Select G-AMP
21
AMP Select ENV F&A
22
A ENV ATTACK SH: ENV ATTACK
23
D ENV DECAY SH: ENV DECAY
Section
Controller Parameter
Destination or operation when
used with the [SHIFT] button
ENV
24
S ENV SUSTAIN SH: ENV SUSTAIN
25
R ENV RELEASE SH: ENV RELEASE
26
DEPTH FLT ENV DEPTH SH: FLT ENV DEPTH
EDIT
27
MONO MONO SH: KEY MODE
28
UNISON UNISON SH: KEY MODE
29
PORTAMENTO PORTAMENTO SH: PORTA TIME
30
SPLIT SPLIT
31
DUAL DUAL L/R DUAL
* 1 Valid only in function mode.
* For other parameters, refer to “Parameter Guide” (PDF).

Roland Jupiter-Xm Specifications

Power

dc voltage	12 V
current draw	1, 500 mA
battery type	Ni-MH battery (AA, HR6) x 8
battery life	approximately 3.5 hours

Display

display type	Graphic LCD
display resolution	128 x 64 dots

Audio

speaker amplifier power	4 W x 2
full range speaker size	3.5 x 8 cm x 2
tweeter size	2 cm x 2

Weight and Dimensions

weight	4.4 kg, 9 lbs 12 oz
width	576 mm, 22-11/16 inches
depth	308 mm, 12-1/8 inches
height	93 mm, 3-11/16 inches
