Roland V-1200HDR Guide

41
4:2:2 Process Settings

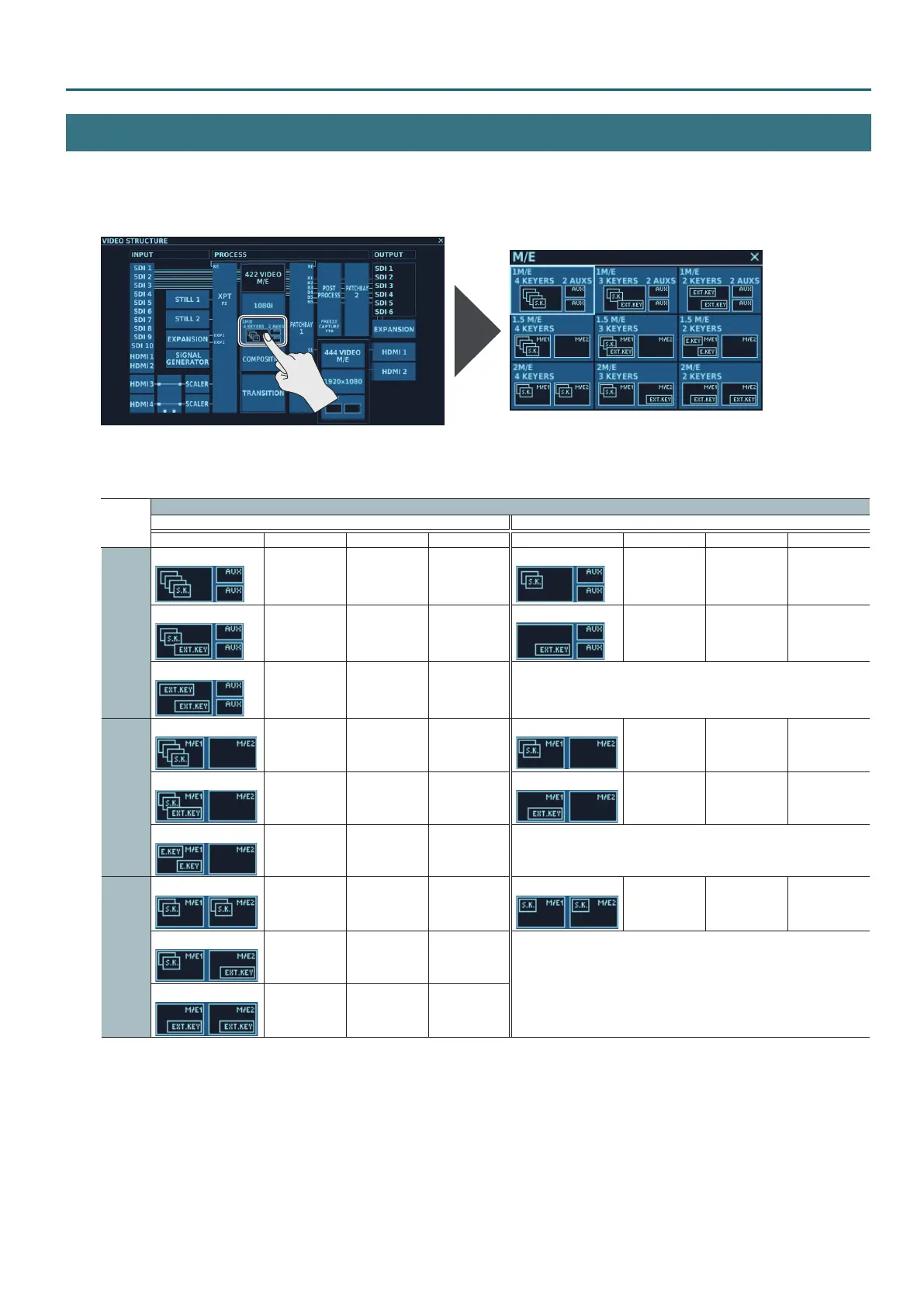

M/E Screen (4:2:2)
At the M/E screen, you select the 4:2:2 M/E mode.
1. Tapping <M/E (4:2:2)> at the VIDEO STRUCTURE screen displays the M/E screen (4:2:2).
Tap the 4:2:2 M/E mode you want to set, thereby selecting it.
The number of compositions where self key or external key can be used and the number of AUXes dier according to the combination of selected
4:2:2 process format (p. 40) and 4:2:2 M/E mode.
Refer to the following table for the combinations and numbers.
4:2:2 process format
1080i 1080p
M/E Mode Self key External key AUX M/E Mode Self key External key AUX
1 M/E
4 KEYERS 2 AUXS
4 — 2
2 KEYERS 2 AUXS
2 — 2
3 KEYERS 2 AUXS
2 1 2
1 KEYER 2 AUXS
— 1 2
2 KEYERS 2 AUXS
— 2 2
1.5 M/E
4 KEYERS
4 — —
2 KEYERS
2 — —
3 KEYERS
2 1 —
1 KEYER
— 1 —
2 KEYERS
— 2 —
2 M/E
4 KEYERS
4 — —
2 KEYERS
2 — —
3 KEYERS
2 1 —
2 KEYERS
— 2 —
* For descriptions of the respective M/E modes, refer to “4:2:2 Process M/E Mode and Composition” (p. 12).
* For information on how to select the 4:2:2 process format, refer to “FORMAT Screen (4:2:2)” (p. 40).
* For information on self keys and external keys, refer to “COMPOSITION Screen” (p. 42).
