Roland V-1200HDR Guide

61
AUDIO STRUCTURE Screen
AUDIO MIXER Screen
At the AUDIO MIXER screen, you perform such operations as adjusting the volume levels of the respective audio streams input to MIXER and
adjusting the equalizer.

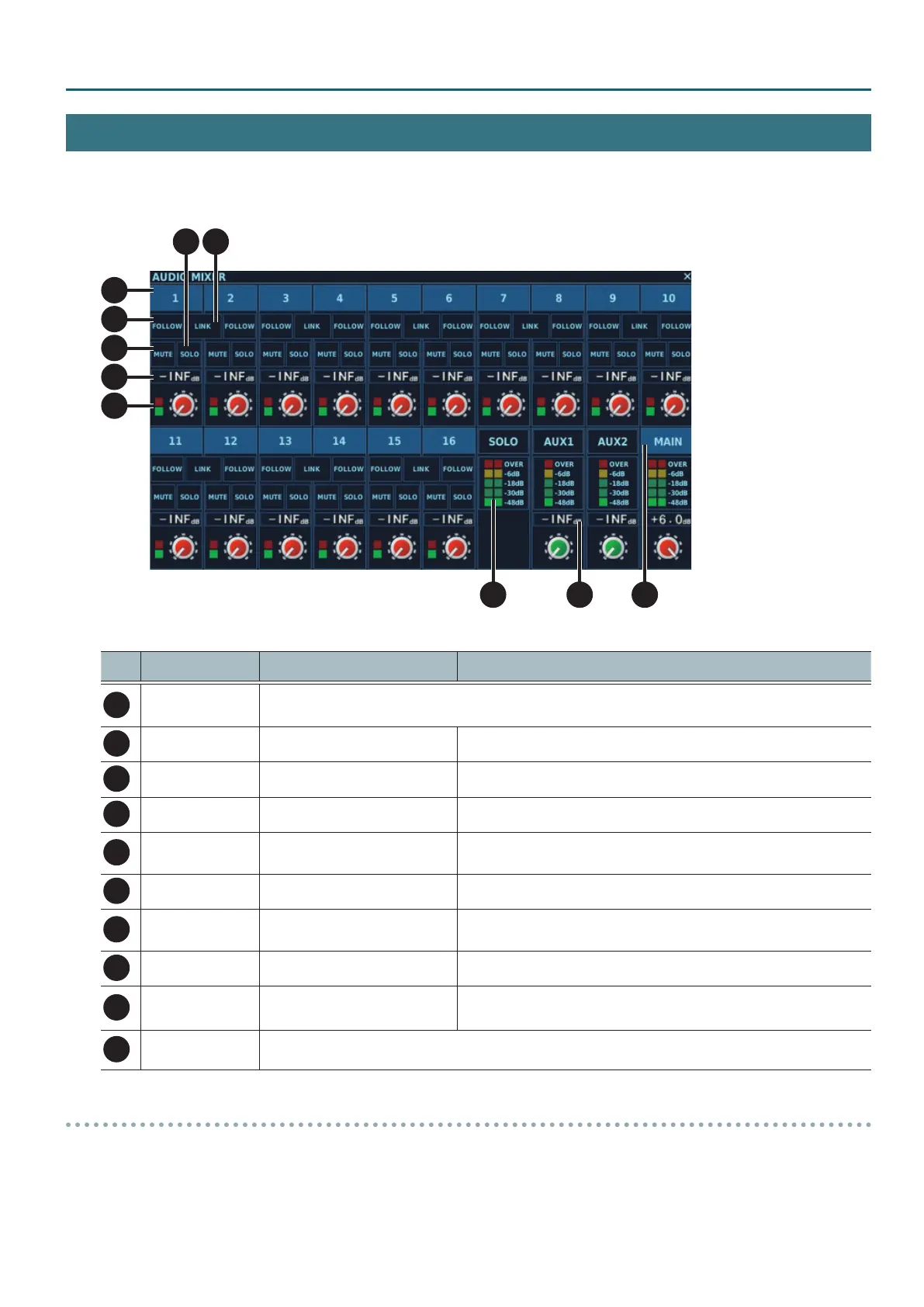

1. Tapping <MIXER> at the AUDIO STRUCTURE screen displays the AUDIO MIXER screen.
1
2
3
4
5
6 7
8 9 10
You can change the setting values within the ranges shown below.
No. Name
Setting value
(Values in bold type are factory defaults.)
Description
1
1–16
Tapping one of these displays the AUDIO MIXER CHANNEL screen for setting pan, eects, and other values for the respective audio
channel.
For information on the AUDIO MIXER CHANNEL screen, refer to “AUDIO MIXER CHANNEL Screen” (p. 62).
2
FOLLOW ON, OFF This switches Audio Follow on and o.
3
MUTE ON, OFF This switches mute on and o.
4
Audio level display -INF– +6.0 dB
This displays the audio level.
After tapping to select, you can use the <VALUE> control to change the value.
5
Audio level indicator —
This displays the input status of the audio signal.
This lights up in green when input higher than a specic level is received. It lights up in red
when input is excessively high.
6
SOLO ON, OFF
This switches solo on and o.
Audio on a channel where solo is set to ON is mixed and sent to the SOLO bus.
7
LINK ON, OFF
This connects adjacent channels using stereo link, which lets you set various parameters to
the same settings for both.
This is convenient when you’re dealing with stereo sources.
8
Audio level meter — This displays the output levels of the respective buses.
9
Audio level displays
(AUX1, AUX2, and MAIN)
-INF– +6.0 dB
These display the audio levels of the respective buses.
After tapping to select, you can use the <VALUE> control to change the value.
10
MAIN
Tapping this displays the AUDIO MIXER MAIN screen for making eect settings for the MAIN bus.
For information on the AUDIO MIXER MAIN screen, refer to “AUDIO MIXER MAIN Screen” (p. 63).
About Audio Follow
You can link video output and audio-channel output when a video-switch operation is performed.
This function is called “Audio Follow.”
When outputting the video sources set using the various audio channels to PGM, the audio levels of the audio channels rise in tandem with the
video. When not outputting the video sources set using the various audio channels to PGM, the audio levels of the audio channels fall in tandem
with the video.
