NOTE
For steam service do not blow down impulse piping
through transmitter. Flush lines with blocking valves closed
and refill lines with water before resuming measurement.
Plugged Tee
for Steam Service
for Sealing Fluid
STEAM SERVICE
Sufficient
Length for
Cooling
Blocking
Valves
3-valve
Manifold
Flow
Vent/Drain
Valve
3-valve
Manifold
GAS SERVICE
Flow
3-valve
Manifold
Drain/Vent
Valve
Flow
Optional
Side-mounted
Drain/Vent Valve
3-valve
Manifold
Flow

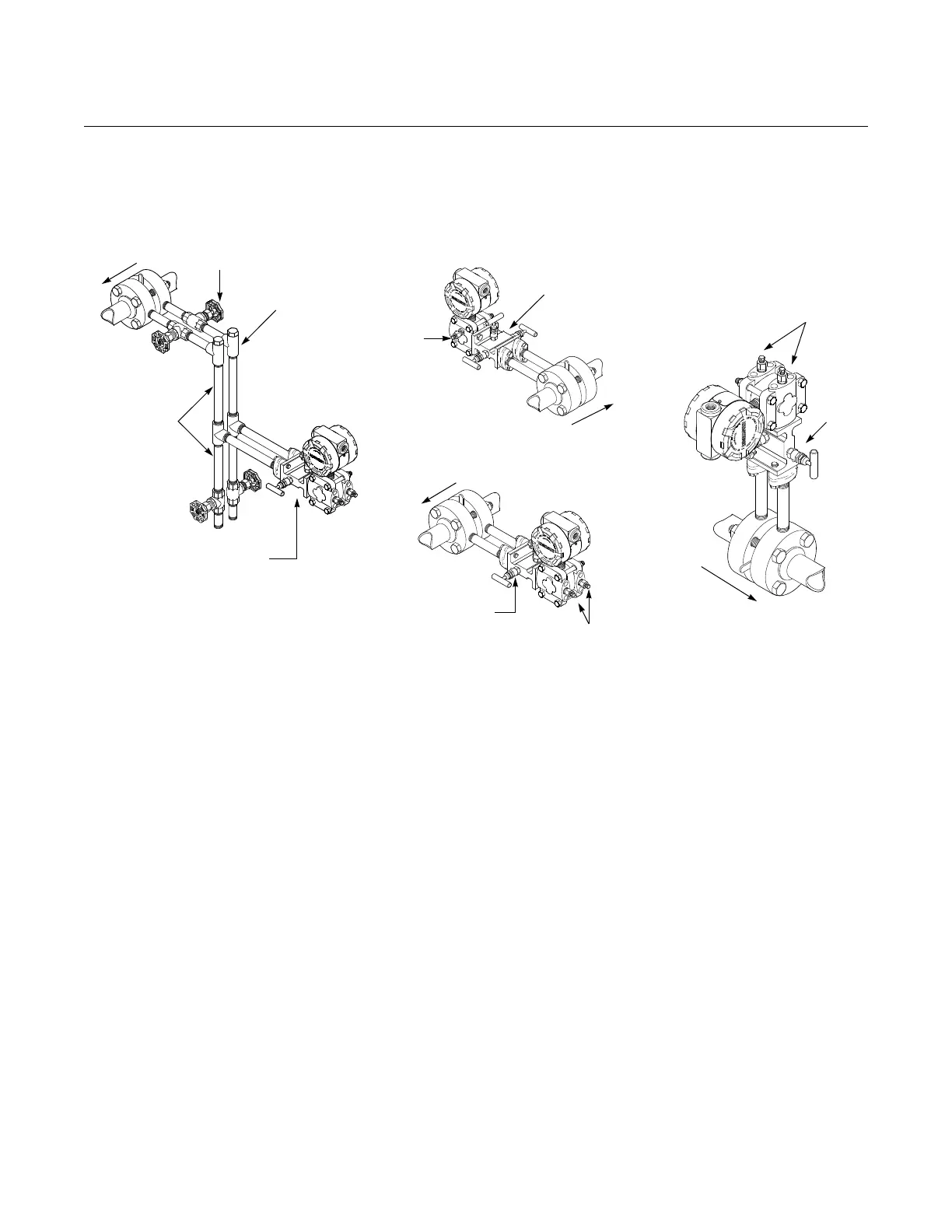

Figure 2-4. Steam, Liquid, and
Gas Service Installation Diagrams.
H
L
LIQUID SERVICE
H
H
H
L
L
L
