Rosemount 1151GP - Field Hook-Up

Reference Manual
00809-0100-4360, Rev BA
August 2008
Rosemount 1151
3-4
Field Hook-up
R
L
≥ 250 
NOTE
A HART Interface may be connected at any termination point in the
loop. Signal loop must have 250 ohms minimum load for
communications.
Optional
Indicator
Optional
Chart
Recorder
Current
Meter
Rosemount 1151 Smart
Pressure Transmitter
Power
Supply

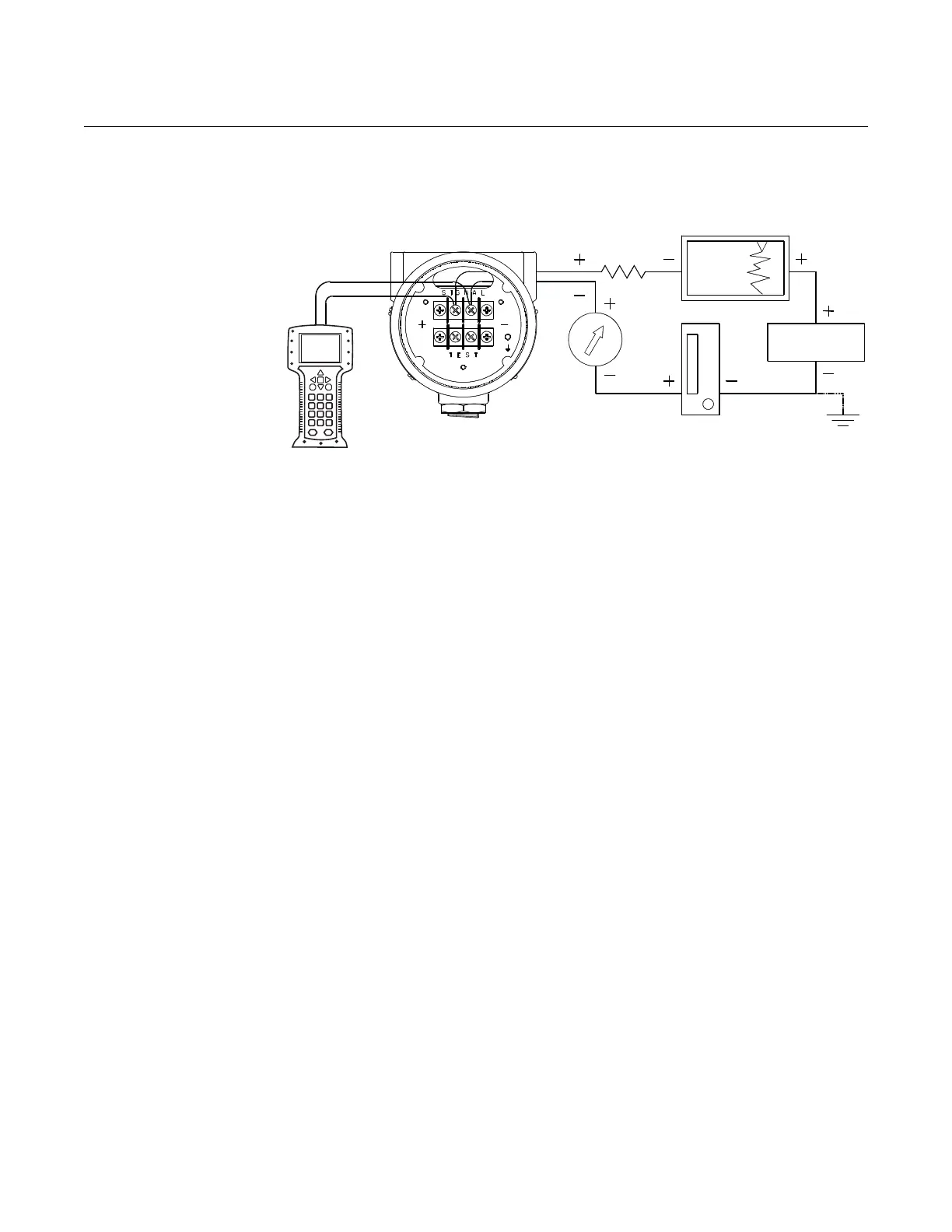

Figure 3-3. Rosemount 1151 Field
Wiring Diagram.
HART-based
Communicator
NOTE
Signal Loop may be grounded at any
point or left ungrounded.
