Rosemount 1151GP - Process Sensor Body Removal

Reference Manual
00809-0100-4360, Rev BA
August 2008
5-13
Rosemount 1151
Process Sensor Body
Removal
Be aware of the following guidelines:
• The transmitter should be removed from service before disassembling
the sensor body.
• Process flanges can be detached by removing the four large bolts.
• Isolating diaphragms may be cleaned with a soft rag, mild cleaning
solution, and clear water rinse.
• Flange adapters and process flanges may be rotated or reversed for
mounting convenience.

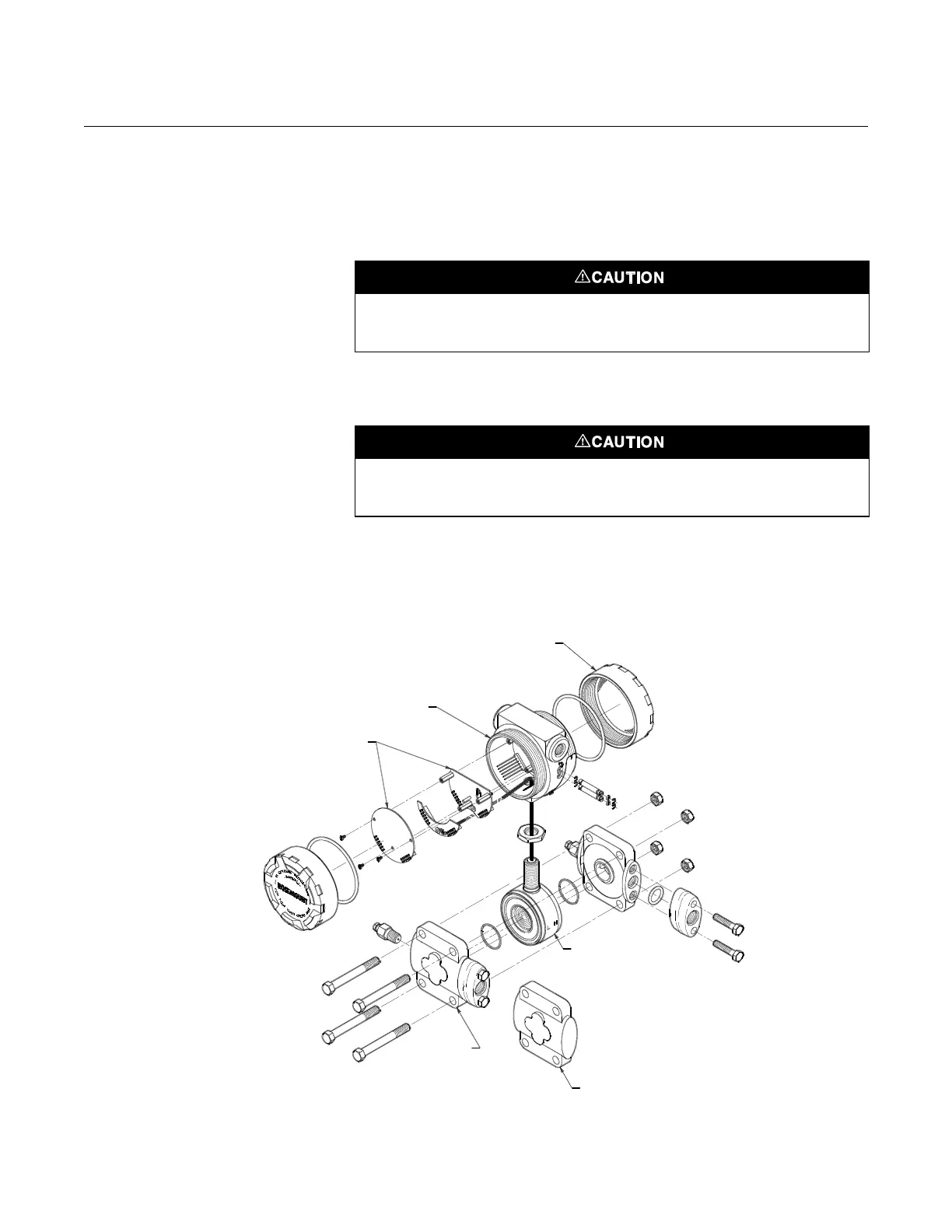

Figure 5-4. Differential Pressure
(DP) Transmitter Exploded View.
Do not scratch, puncture, or depress the isolating diaphragms. Damaging the isolating
diaphragms can inhibit transmitter performance.
Do not use chlorine or acid solutions to clean the diaphragms. Damaging the isolating
diaphragms can inhibit transmitter performance.
Electronics
Blank Flange
for AP and GP
Electronics
Housing
Electronics Cover
-Cell
Sensing
Module
Process
Flange
