Reference Manual
00809-0100-4360, Rev BA
August 2008
Rosemount 1151
2-24

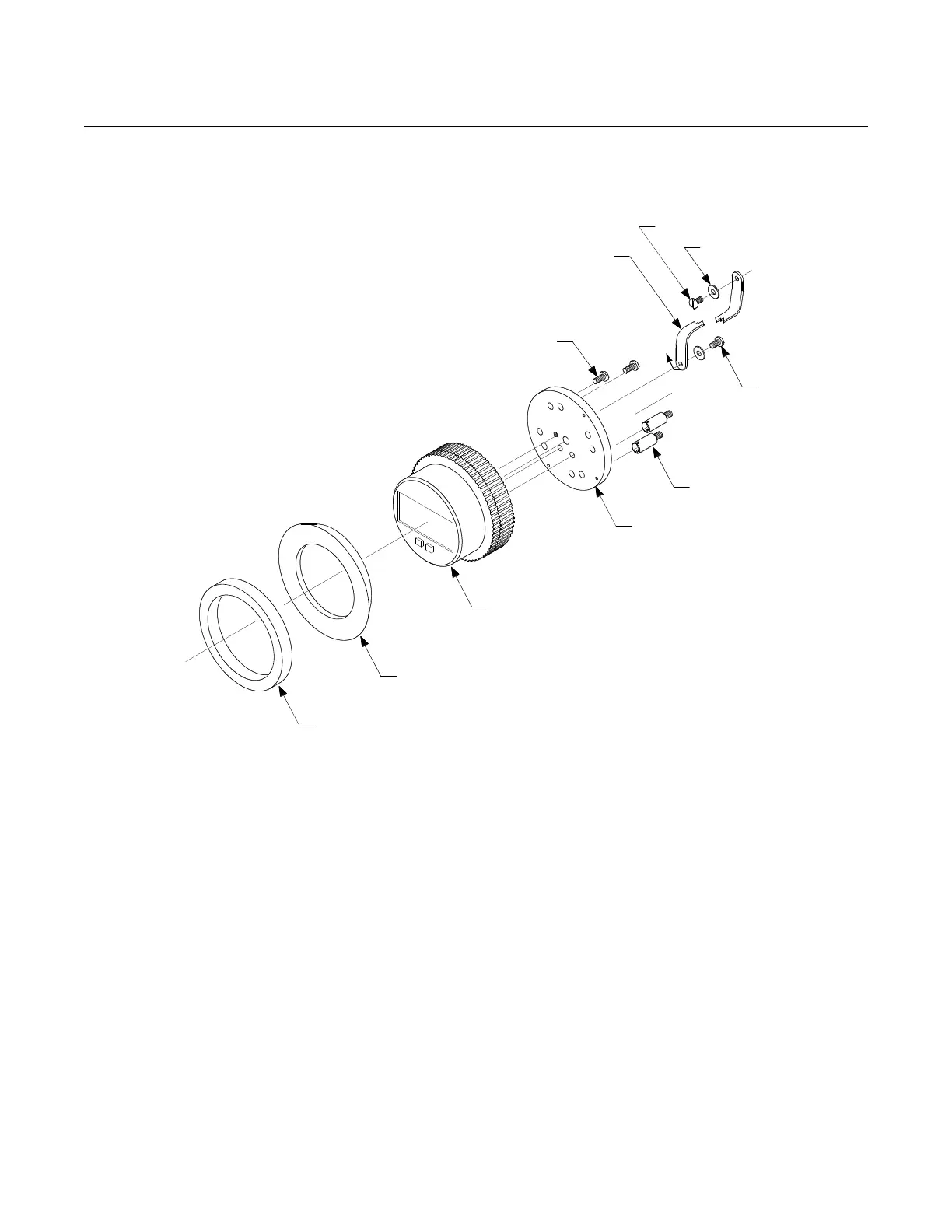

Figure 2-13. LCD Display
Exploded View.
Terminal Blocks The terminal block options can increase the Rosemount 1151 Pressure
Transmitter’s ability to withstand electrical transients induced by lightning,
welding, heavy electrical equipment, or switch gears. The Rosemount 1151
Pressure Transmitter, with the integral transient protection option, meets the
standard performance specifications as outlined in this product manual. In
addition, the transient protection circuitry meets IEEE Std 587, Category B,
and IEEE Std 472, Surge Withstand Capability.
Cover Foam Spacer
Cover Bushing
Mounting Plate
Meter (Meter may be rotated in 90
degree increments)
Terminal Screws (Mount
into Transmitter “Test”
Terminal Block)
Mounting Screws
Retaining Straps
Mounting Screw into Housing
Strap Washer
Mounting Screw
into Mounting Plate
