Rosemount 1151GP - Transmitter Disassembly Procedure

Reference Manual
00809-0100-4360, Rev BA
August 2008
5-5
Rosemount 1151
Disassembly Procedure Read the following information carefully before you disassemble a transmitter.
General information concerning the process sensor body, electrical housing,
and a procedure for their separation follow.
Figure 5-1 shows an exploded view of the transmitter.

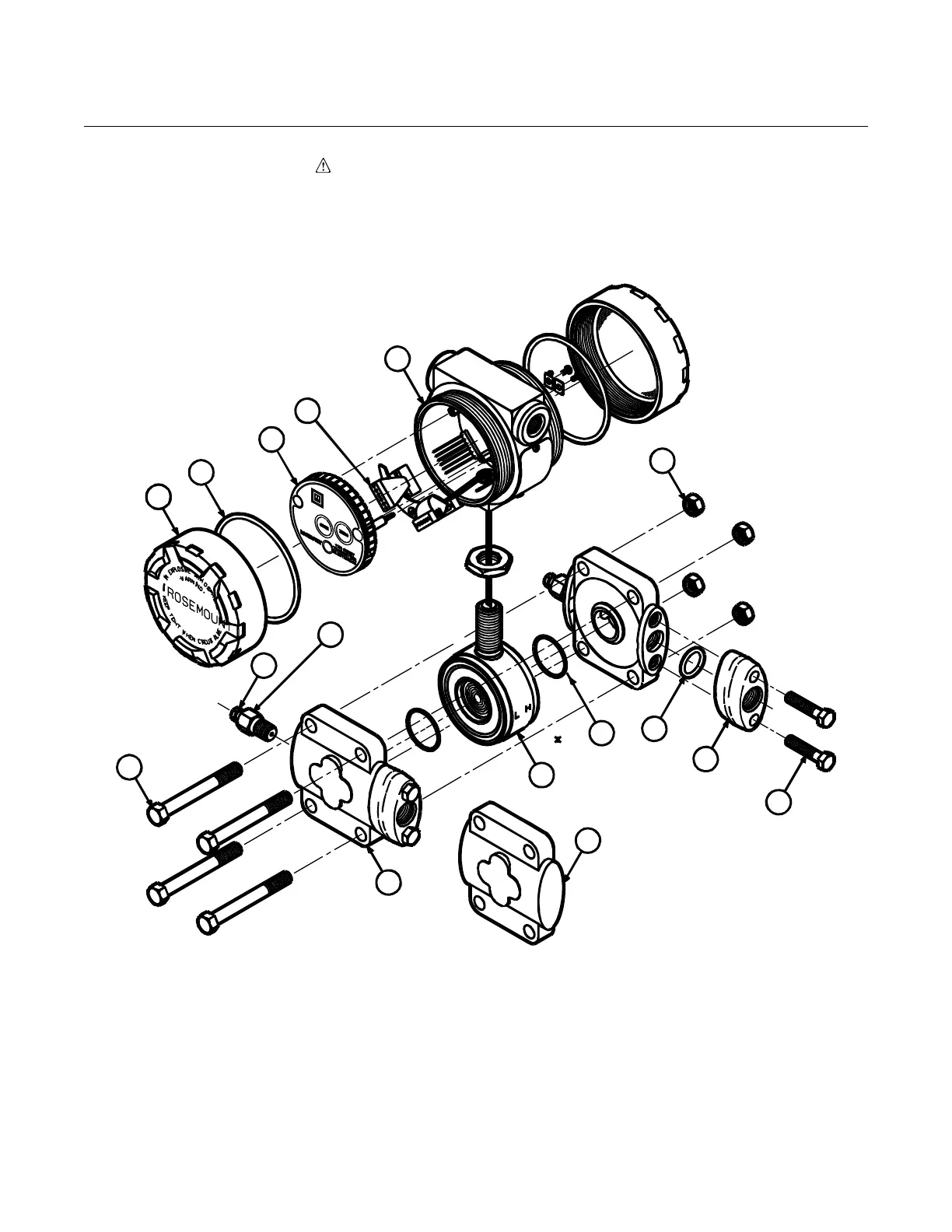

Figure 5-1. Rosemount 1151 Smart Pressure Transmitter Exploded View.
