Reference Manual
00809-0100-4360, Rev BA
August 2008
Rosemount 1151
6-10
INSTALLING THE
SMART RETROFIT KIT
Installing the smart retrofit electronics kit in the transmitter requires installing
plastic spacers to accommodate the retrofit kit and securing the retrofit
electronics. After the retrofit kit has been installed, it is necessary to attach
eyelets to the terminal side of the transmitter. The eyelets enable hook-up with
a HART-based communicator (see Figure 6-2).

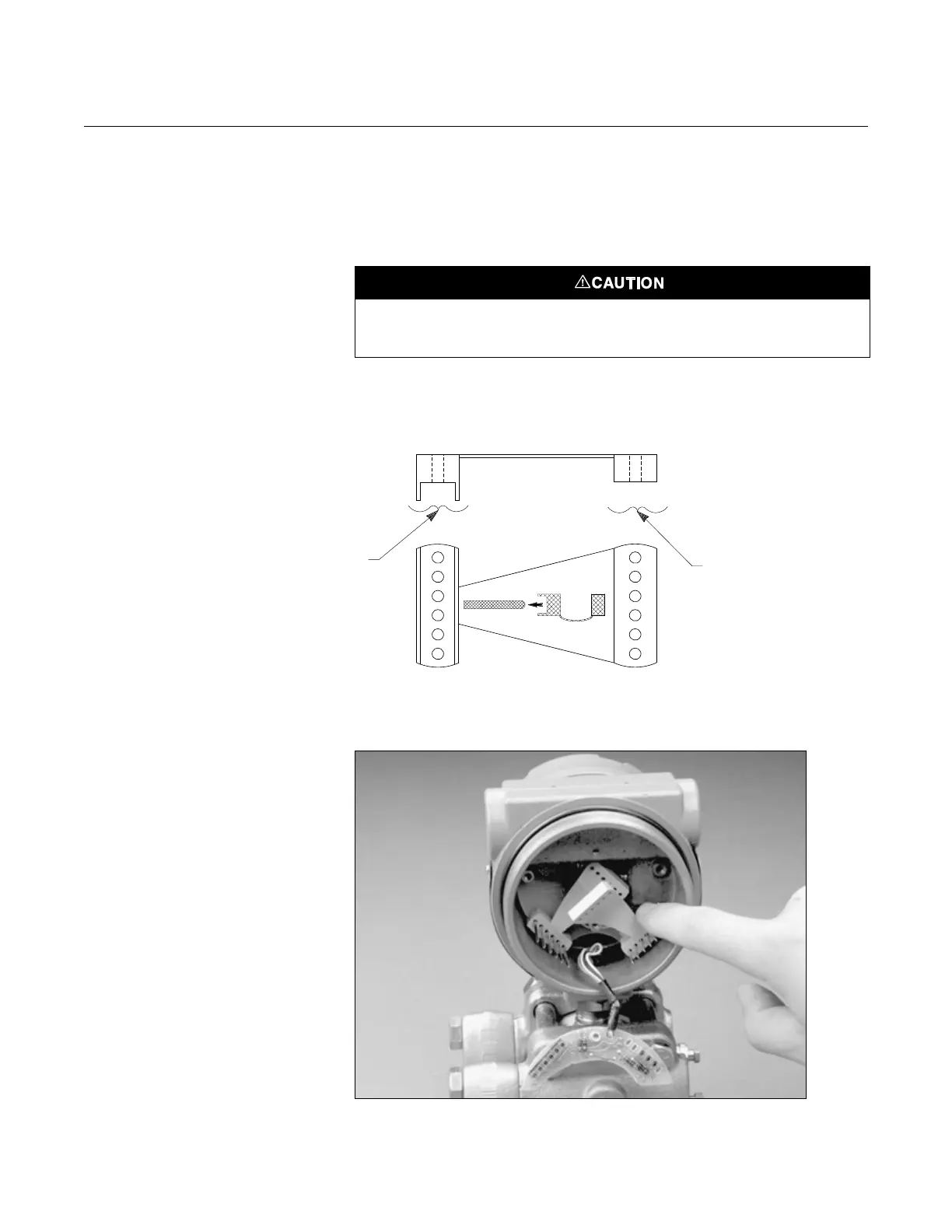

Figure 6-2. Spacer Assembly.
1. Slide the bottom half of one spacer over one of the rows of bayonet
connectors. Then repeat the procedure for the other row.
Use proper earth grounding techniques when handling the smart electronics assembly.
The smart electronics assembly is potentially sensitive to electric static discharge.
This side faces bottom
of electronics assembly
This side faces toward
electronics housing cover
To Next Page
