Rosemount 1151

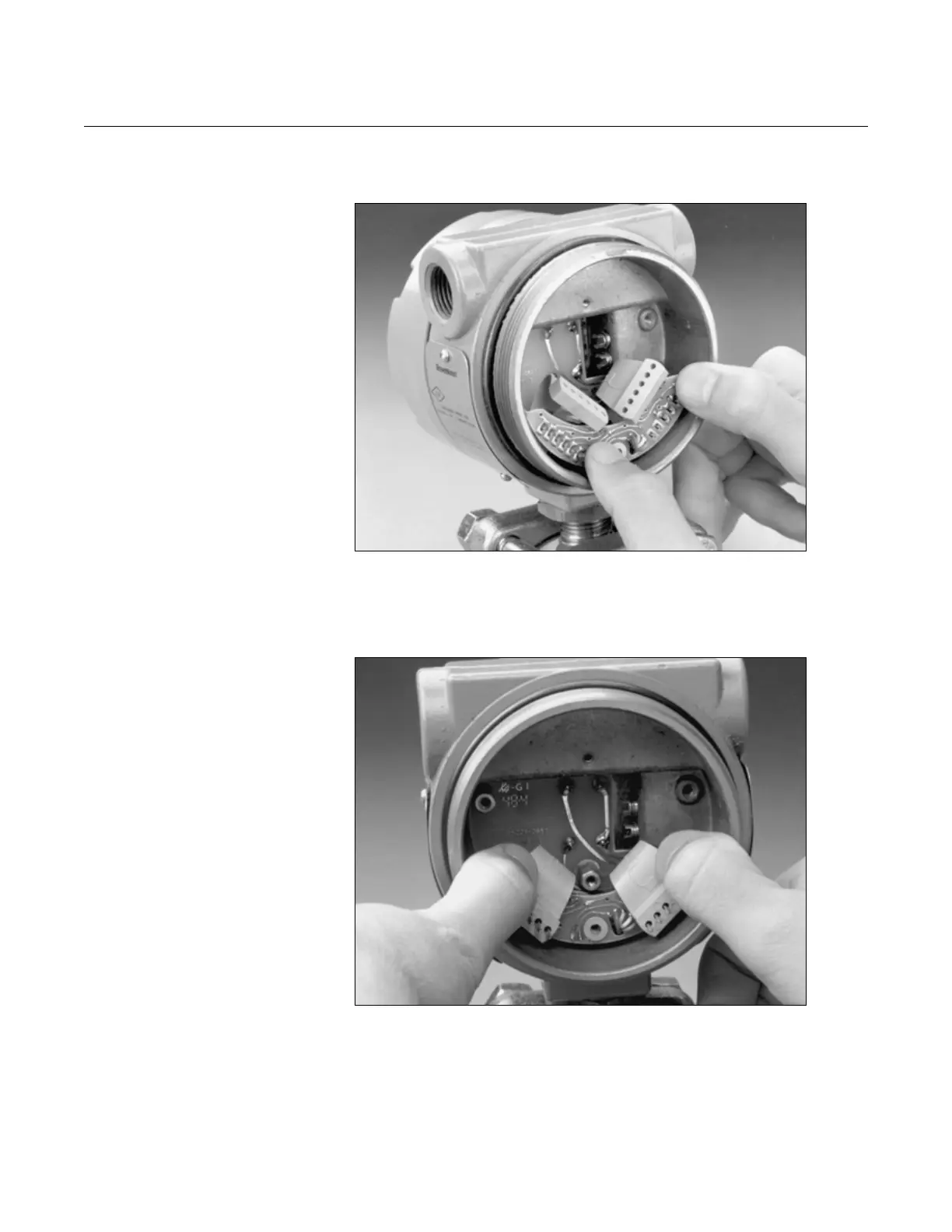

2. Align the header board with the bayonet connector pins, and slide the
header board halfway down the pins.
3. Align the tops of both spacers with the bayonet connector pins, and slide
them down the pins, pushing firmly on both the spacers and the header
board to seat the board.
