Rosemount 1151GP - Page 94

Reference Manual
00809-0100-4360, Rev BA
August 2008
Rosemount 1151
6-6

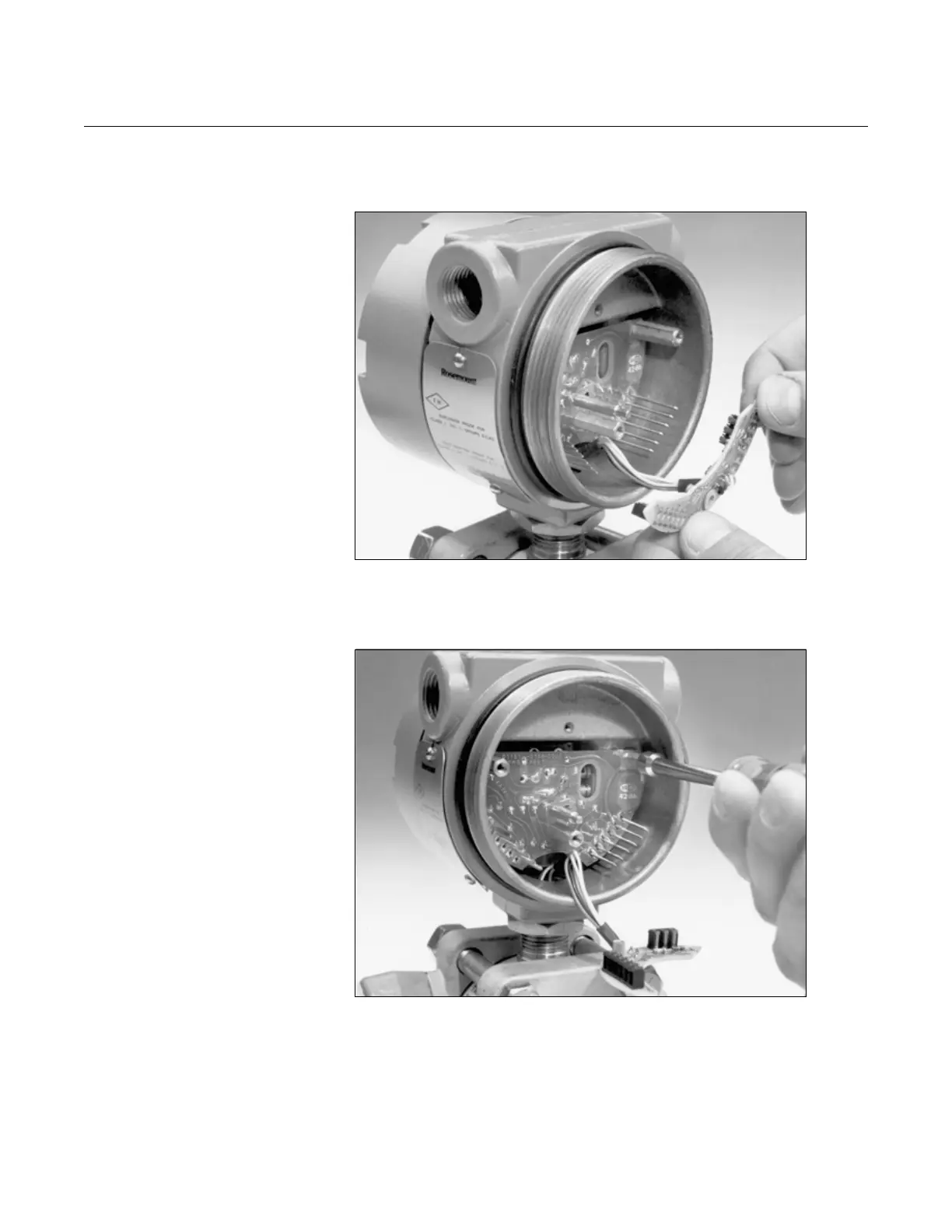

5. Pull the header board assembly (3) off the bayonet connectors. The
header board must be reinserted. Do not cut the wires (9) or remove the
header board.
6. If the transmitter has linear output electronics, remove the three
standoffs (4). Use a
1
/4-in. nut driver or wrench.
