Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
194
Specifications and Reference Data

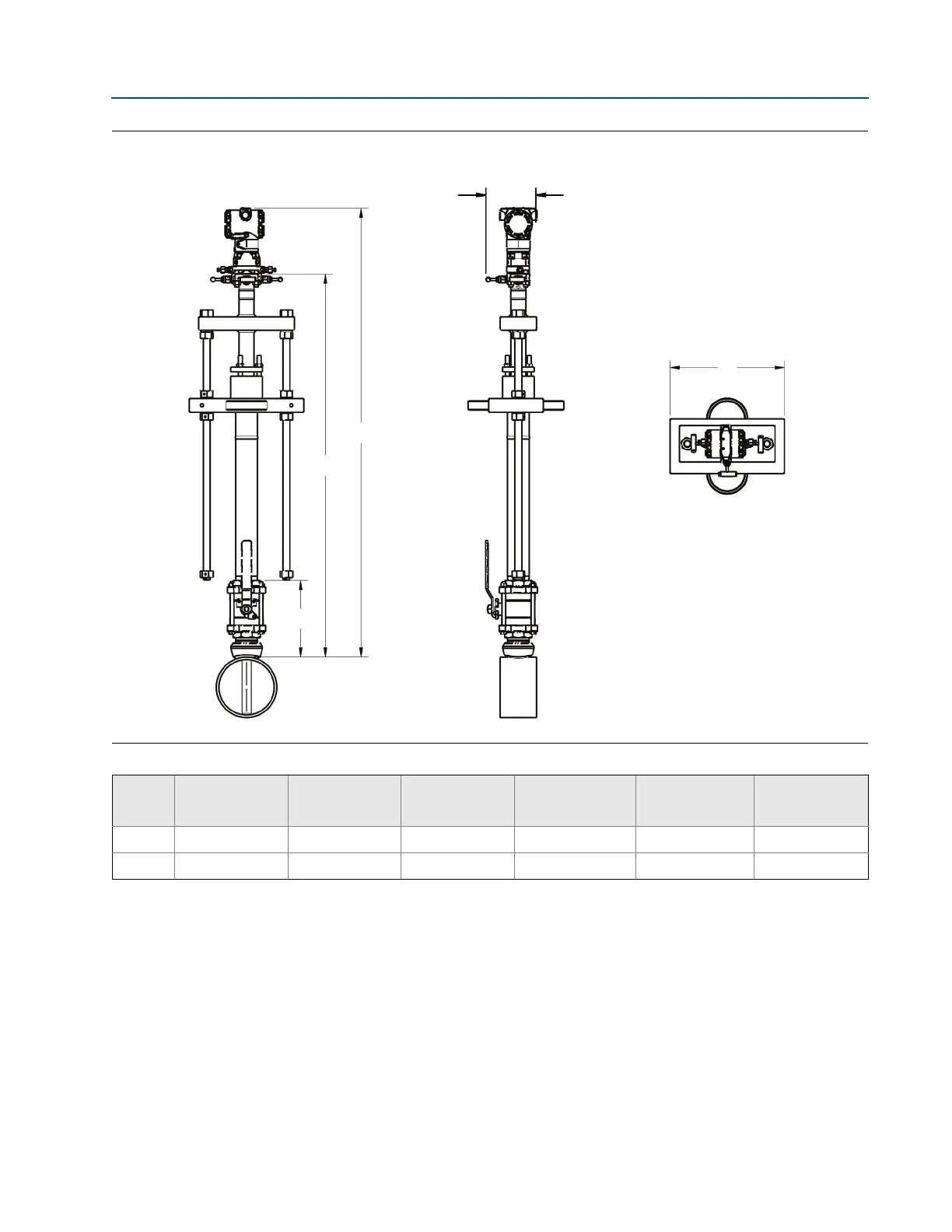

Figure 13. Rosemount 3051CFA Threaded Flo-Tap Annubar Flowmeter
(1)
Front view Side view Top view
1. The Threaded Flo-Tap Annubar Flowmeter is available with both the manual and gear drive options.
Table 41. 3051CFA Threaded Flo-Tap Annubar Flowmeter Dimensional Data
(1)(2)
1. Inserted, B Dimension = Pipe I.D. + Wall Thickness + A + B
I
2. Retracted, B Dimension = 2 3 (Pipe I.D. + Wall Thickness + A) + B
I
Sensor
size
A ± 0.50
(12.7)
B
I
(Max)
(Gear drive)
B
I
(Max)
(Manual)
C (Max) D (Max) E (Max)
1 7.51 (190.9) N/A 16.96 (430.8) B + 7.10 (180.3) 10.50 (266.7) 6.00 (152.4)
2
(3)
3. Sensor Size 3 is not available in a Threaded Flo-Tap.
8.17 (207.5) 23.62 (599.9) 20.39 (517.9) B + 7.10 (180.3) 12.56 (319.0) 6.00 (152.4)
Dimensions are in inches (millimeters).
