Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
203
Specifications and Reference Data

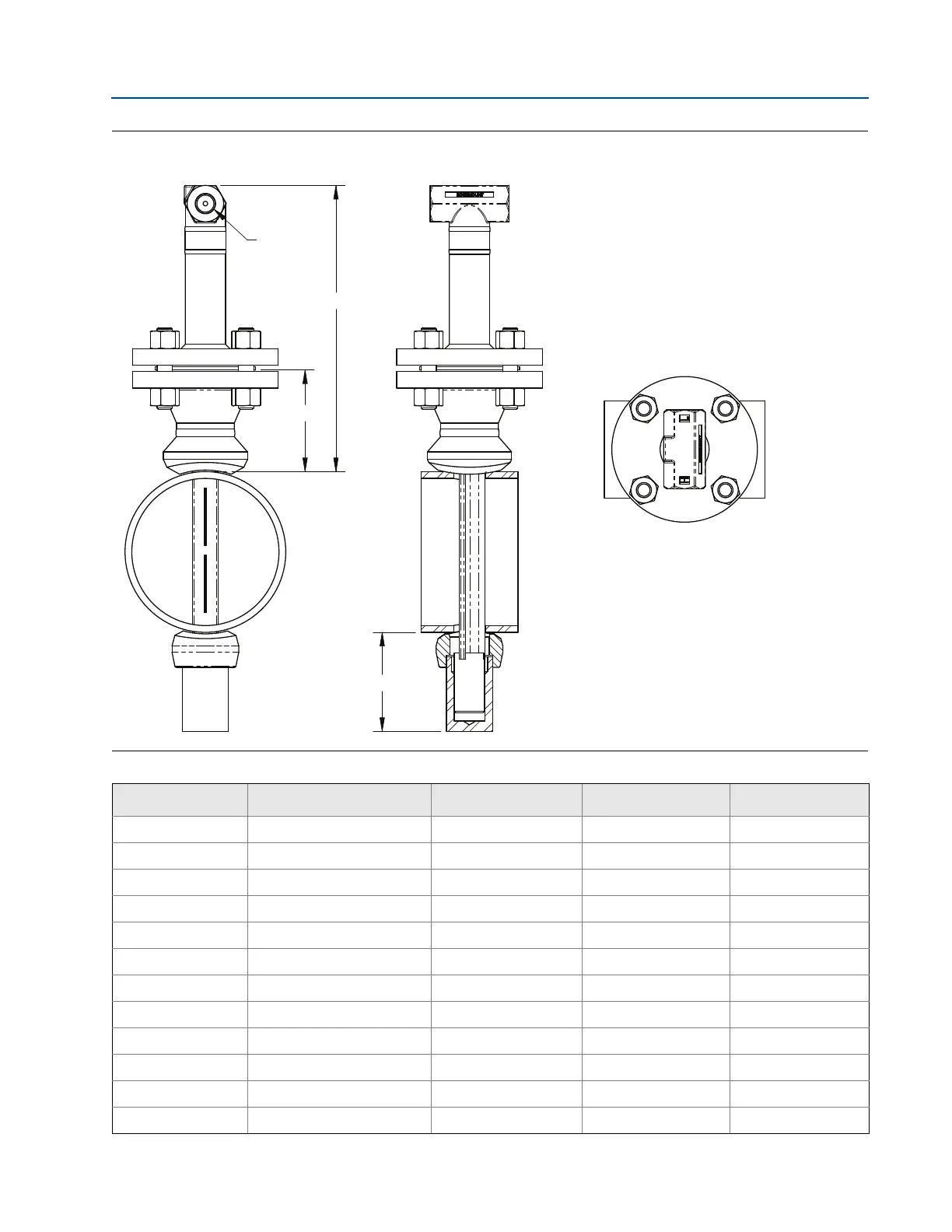

Figure 20. Flanged 485 Annubar Primary Element
Front view Side view Top view
Table 48. Flanged Annubar Primary Element Dimensional Data
Sensor size Flange size and rating A ± 0.125 (3.2) B ± 0.25 (6.4) F (Max)
1 1
1
/2 – 150# 3.88 (98.6) 11.00 (279.4) 3.50 (88.9)
1 1
1
/2 – 300# 4.13 (104.9) 11.00 (279.4) 3.50 (88.9)
1 1
1
/2 – 600# 4.44 (112.8) 11.00 (279.4) 3.50 (88.9)
1 DN40/PN16 3.09 (78.5) 11.00 (279.4) 3.50 (88.9)
1 DN40/PN40 3.21 (81.5) 11.00 (279.4) 3.50 (88.9)
1 DN40/ PN100 3.88 (98.6) 11.00 (279.4) 3.50 (88.9)
1 1
1
/2 – 900# 4.94 (125.5) 9.31 (236.5) 3.50 (88.9)
1 1
1
/2 – 1500# 4.94 (125.5) 9.31 (236.5) 3.50 (88.9)
1 1
1
/2 – 2500# 6.76 (171.7) 11.63 (295.4) 4.00 (101.6)
2 2 – 150# 4.13 (104.9) 12.00 (304.8) 5.00 (127.0)
2 2 – 300# 4.38 (111.3) 12.00 (304.8) 5.00 (127.0)
2 2 – 600# 4.75 (120.7) 12.00 (304.8) 5.00 (127.0)
-in. NPT
or SW
1
/
2
A
B
F
