Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
210
Specifications and Reference Data

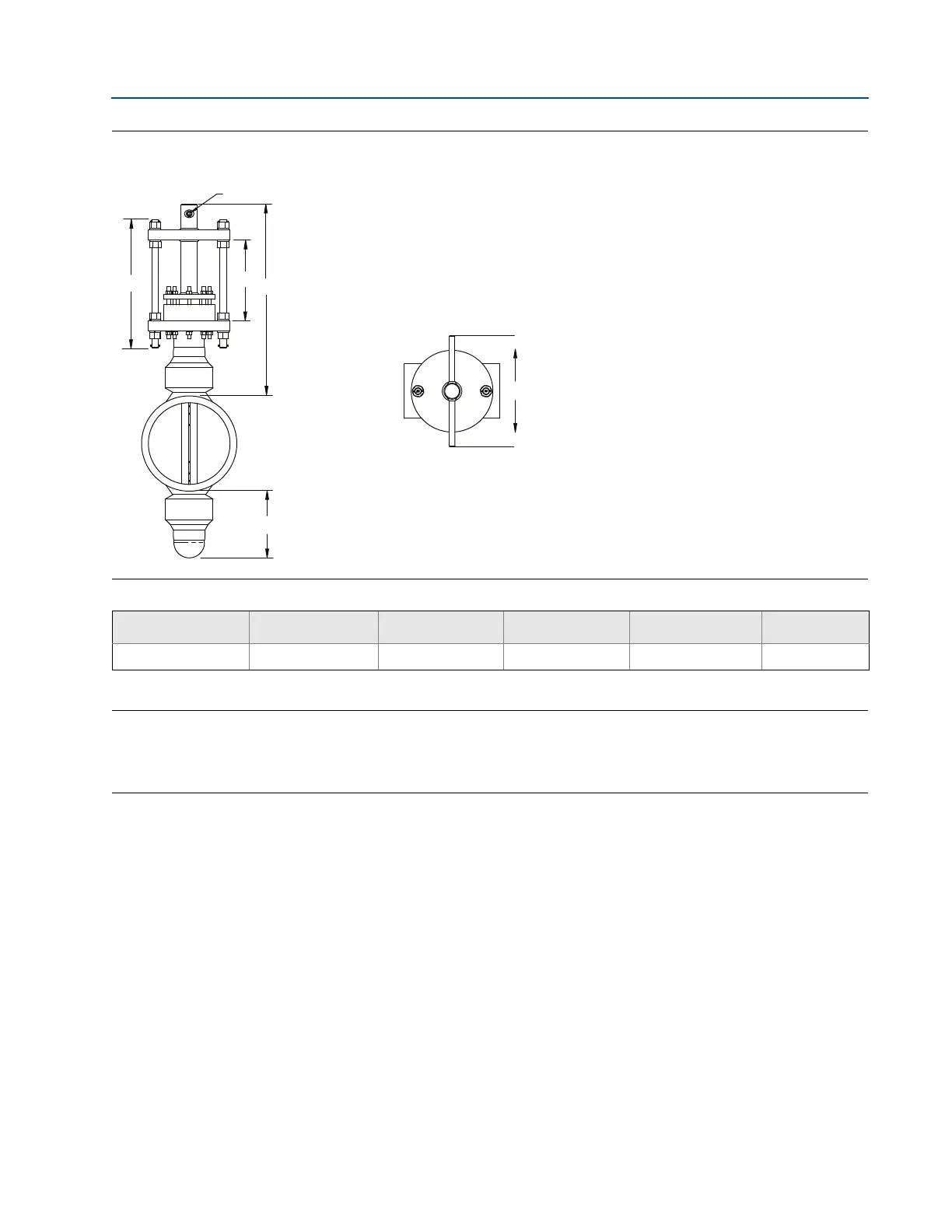

Figure 24. Rosemount 585 Main Steam Annubar with Opposite Side Support Annubar Primary Element
Note
Locking rods are always located 90° from the instrument connections. For horizontal installations, the instrument
connections will be parallel to the pipe. For vertical installations, the instrument connections will be perpendicular
to the pipe.
Front view Top view
Table 52. 585 Main Steam Annubar with Opposite Side Support Dimensional Data
Sensor size A (Max) B C D E
44 29.67 (753.6) 10.0 (254) 19.0 (483) 16.33 (414.0) 11.0 (279)
Dimensions are in inches (millimeters).
