Rosemount 8712

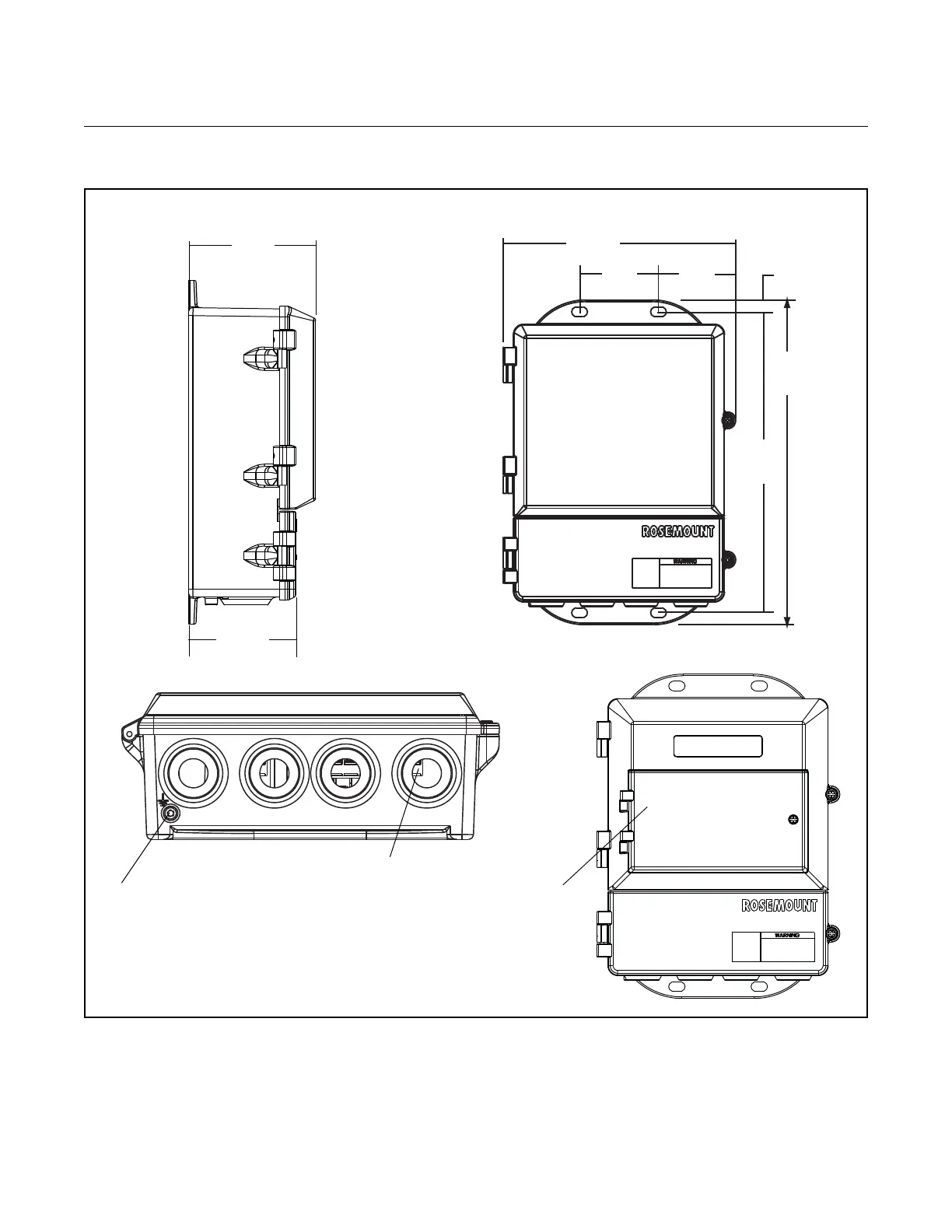

Figure 2-1. Rosemount 8712
Dimensional Drawing
4.31
(109)
LOI Keypad
Cover
9.01
(229)
11.15
(283)
2.81
(71)
3.11
(79)
12.02
(305)
0.44
(11)
Ground Lug
1
/2–14 NPT
Conduit
Connection
(4 Places)
WITH STANDARD COVER
NOTE
Dimensions are in inches (millimeters)
2.96
(75)
WITH LOI COVER
