Rosemount 8712 - ABB Magmaster MFE and MFF Sensors (Old Version) to Rosemount 8712 Transmitter

Reference Manual
00809-0100-4664, Rev BA
January 2010
E-7
Rosemount 8712
ABB SENSORS Connect coil drive and electrode cables as shown in Figure E-5.
ABB Magmaster MFE
and MFF Sensors (Old
Version) to Rosemount
8712 Transmitter

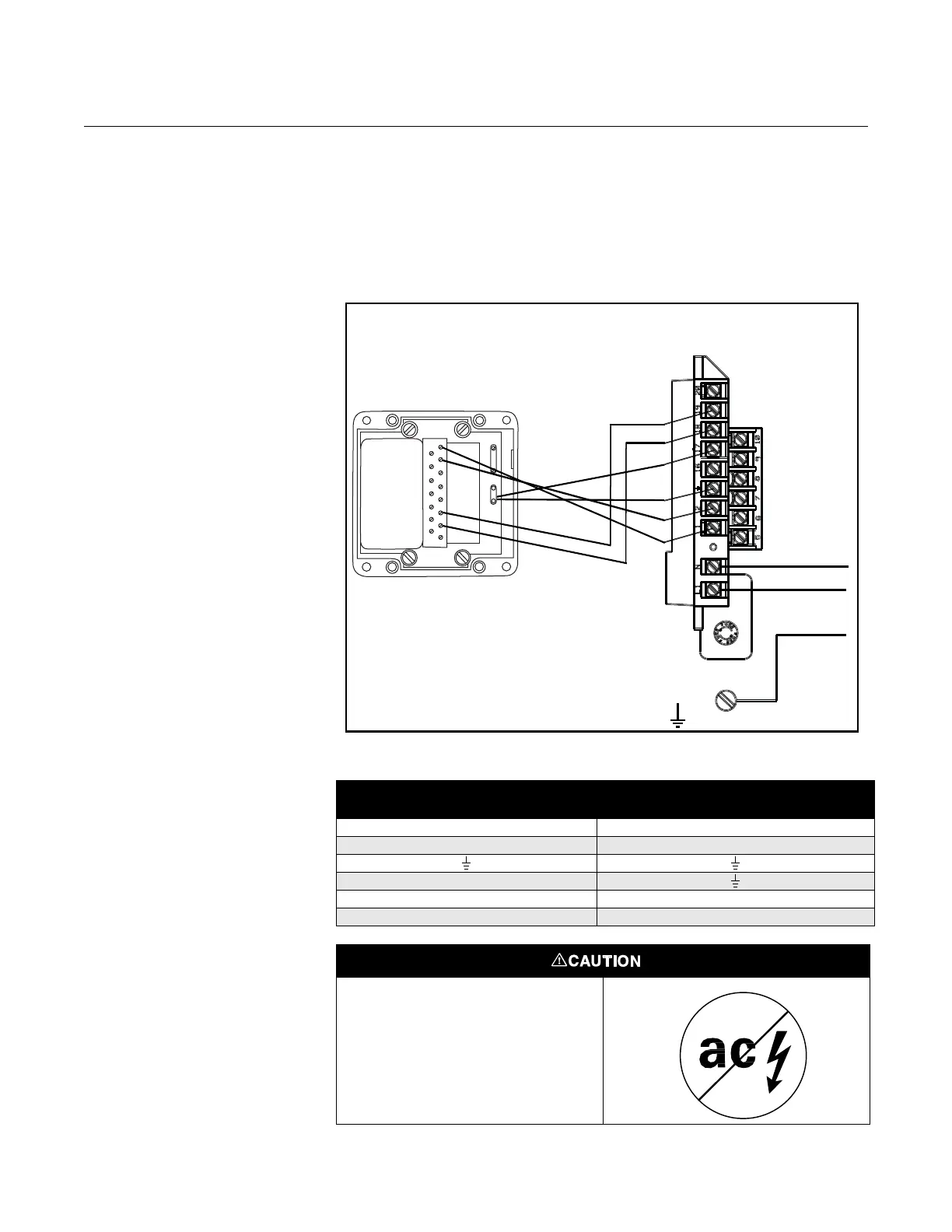

Figure E-5. Wiring Diagram for
ABB Magmaster MFE and MFF
Sensors (Old Version) and
Rosemount 8712
Table E-3. ABB Magmaster MFE and MFF Sensors (Old Version) Wiring
Connections
Rosemount 8712
ABB Magmaster MFE and
MFF Sensors (Old Version)
1CD1
2 CD2
17
18 SIG2
19 SIG1
CD1
CD2
SIG GND
DS1
SIG1
SIG2
DS2
ABB MAGMASTER MFE
AND MFF SENSORS
(OLD VERSION)
ROSEMOUNT 8712
TRANSMITTER
This is a pulsed dc magnetic flowmeter. Do
not connect ac power to the sensor or
to terminals 1 and 2 of the transmitter,
or replacement of the electronics board will
be necessary.
