Rosemount 8712 - Siemens Sitrans F M Mag 3100;5100 Sensors to Rosemount 8712 Transmitter

Reference Manual
00809-0100-4664, Rev BA
January 2010
E-33
Rosemount 8712
SIEMENS SENSORS Connect coil drive and electrode cables as shown in Figure E-31.
Siemens Sitrans F M Mag
3100/5100 Sensors to
Rosemount 8712
Transmitter

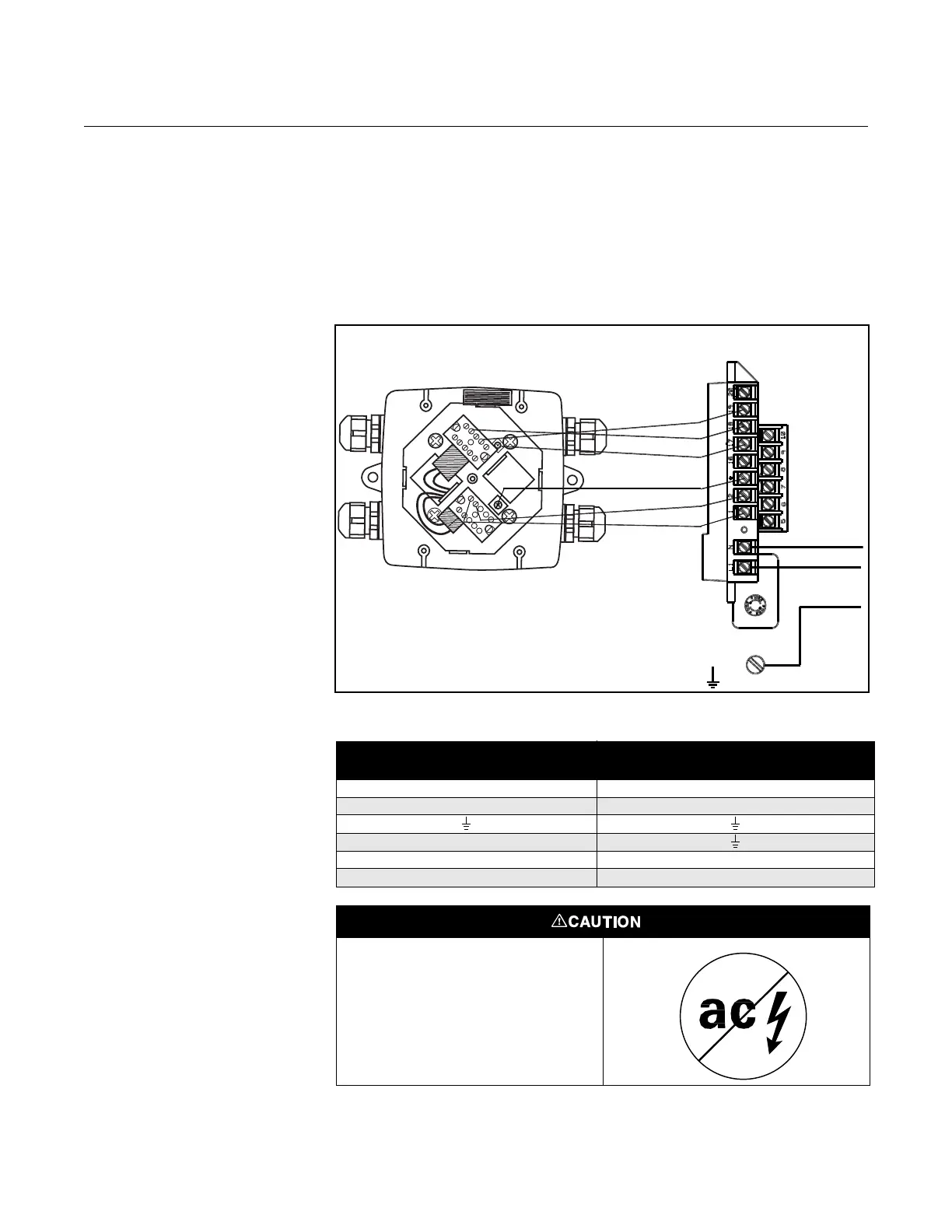

Figure E-31. Wiring Diagram for
Siemens Sitrans F M Mag
3100/5100 Sensors and
Rosemount 8712
Table E-29. Siemens Sitrans F M Mag 3100/5100 Sensors Wiring
Connections
Rosemount 8712
Siemens
Sitrans F M Mag 3100/5100 Sensors
186
2 85
17
18 82
19 83
82
83
86
85
SIEMENS SITRANS F M MAG
3100/5100 SENSORS
ROSEMOUNT 8712E
TRANSMITTER
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
