BROOKS SENSORS Connect coil drive and electrode cables as shown in Figure E-7.
Model 5000 Sensor to
Rosemount 8712
Transmitter

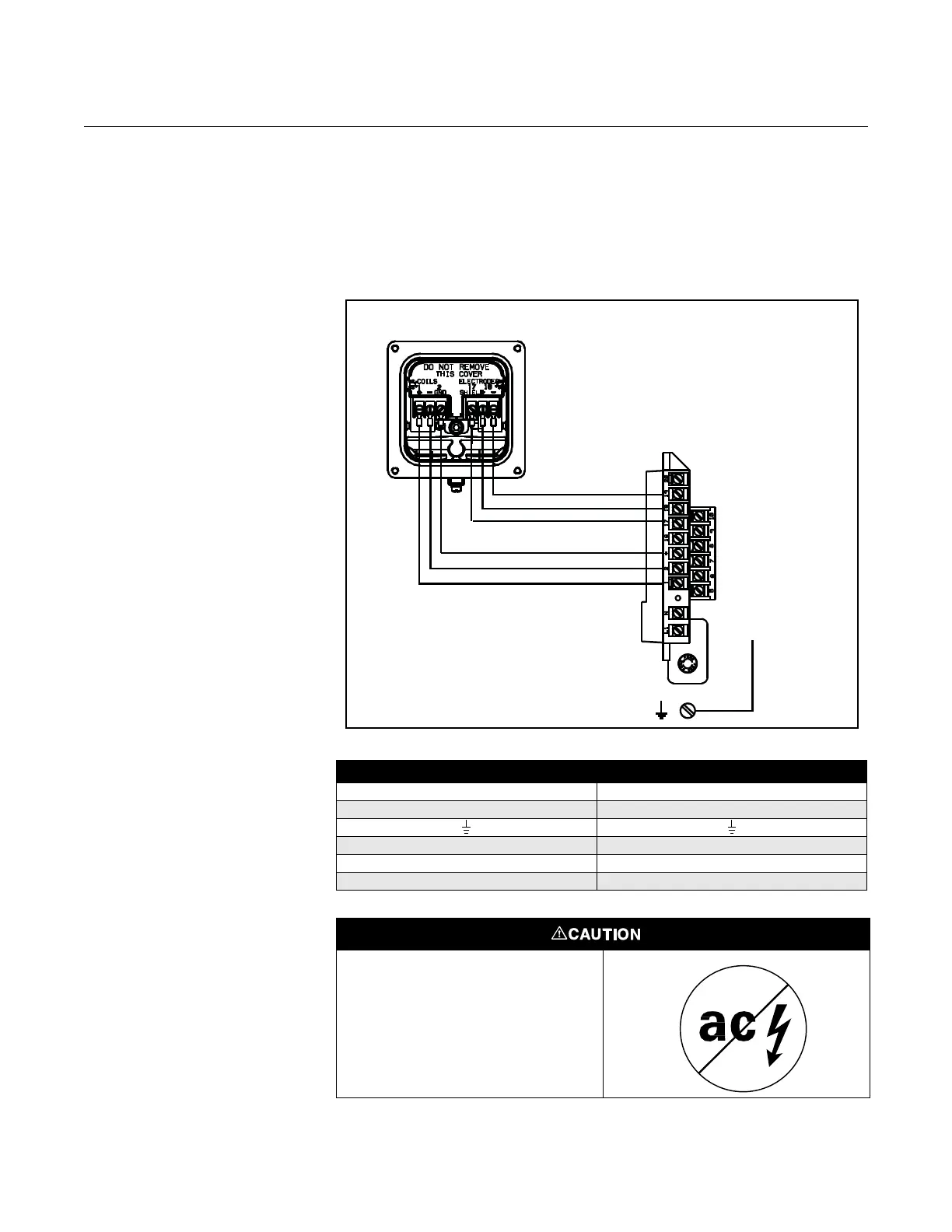

Figure E-7. Wiring Diagram for
Brooks Sensor Model 5000 and
Rosemount 8712
Table E-5. Brooks Model 5000 Sensor Wiring Connections
Rosemount 8712 Brooks Model 5000 Sensors
11
2 2
17 17
18 18
19 19
BROOKS MODEL
5000
ROSEMOUNT 8712
TRANSMITTER
This is a pulsed dc magnetic flowmeter. Do
not connect ac power to the sensor or
to terminals 1 and 2 of the transmitter,
or replacement of the electronics board will
be necessary.
