Rosemount 8712
FISCHER AND PORTER
SENSORS

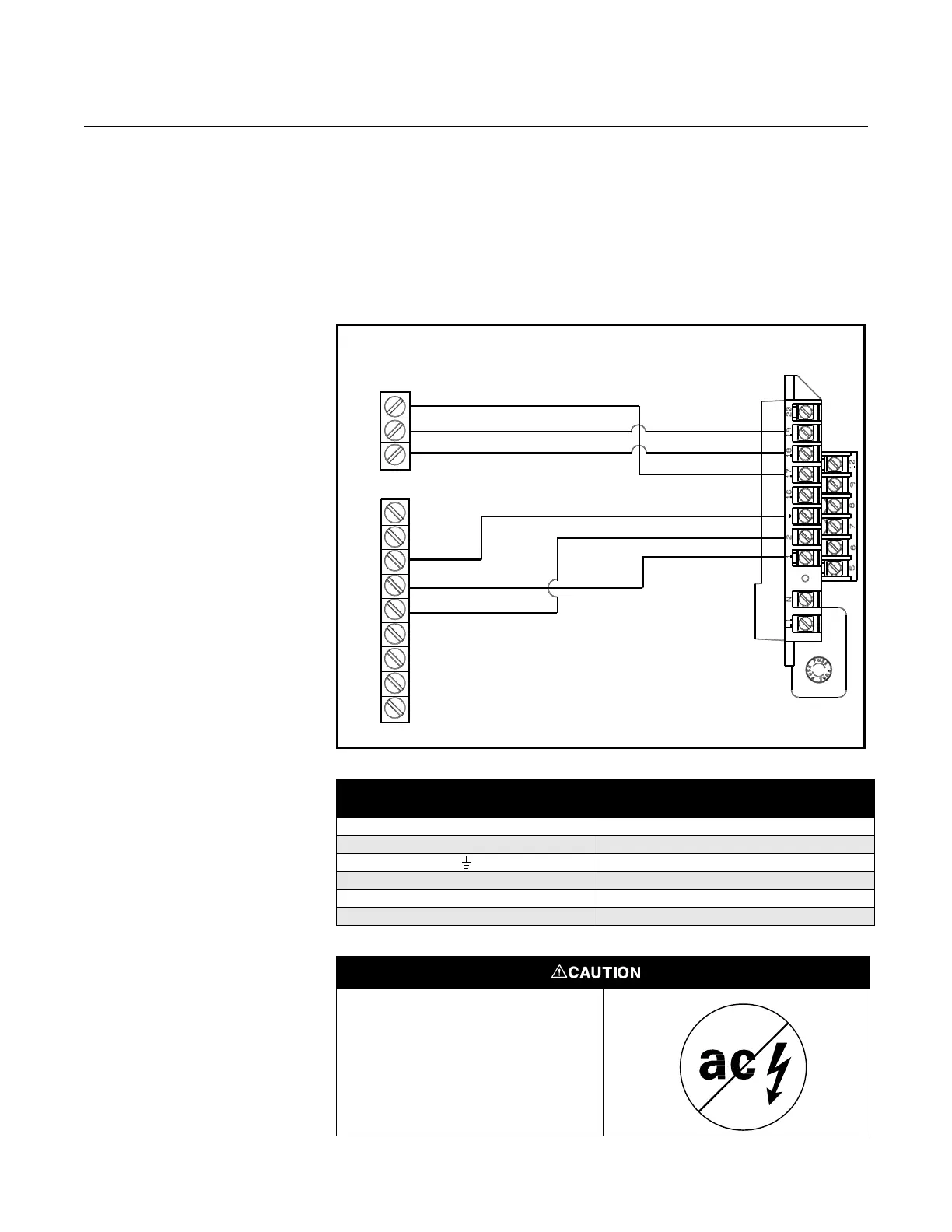

Connect coil drive and electrode cables as shown in Figure E-13.
Model 10D1418 Sensor
to Rosemount 8712
Transmitter
Figure E-13. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1418 and Rosemount
8712
Table E-11. Fischer and Porter Model 10D1418 Sensor Wiring Connections
Rosemount 8712
Fischer and Porter
Model 10D1418 Sensors
1L1
2 L2
Chassis Ground
17 3
18 1
19 2
ROSEMOUNT
8712
TRANSMITTER
Electrode Connections
U1
U2
G
8
6
7
L1
L2
5
3
2
1
Coil Connections
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
