Rosemount 8712 - Taylor Sensors

Reference Manual
00809-0100-4664, Rev BA
January 2010
E-35
Rosemount 8712
Taylor Generic Sensor to
Rosemount 8712
Transmitter
Connect coil drive and electrode cables as shown in Figure E-33.

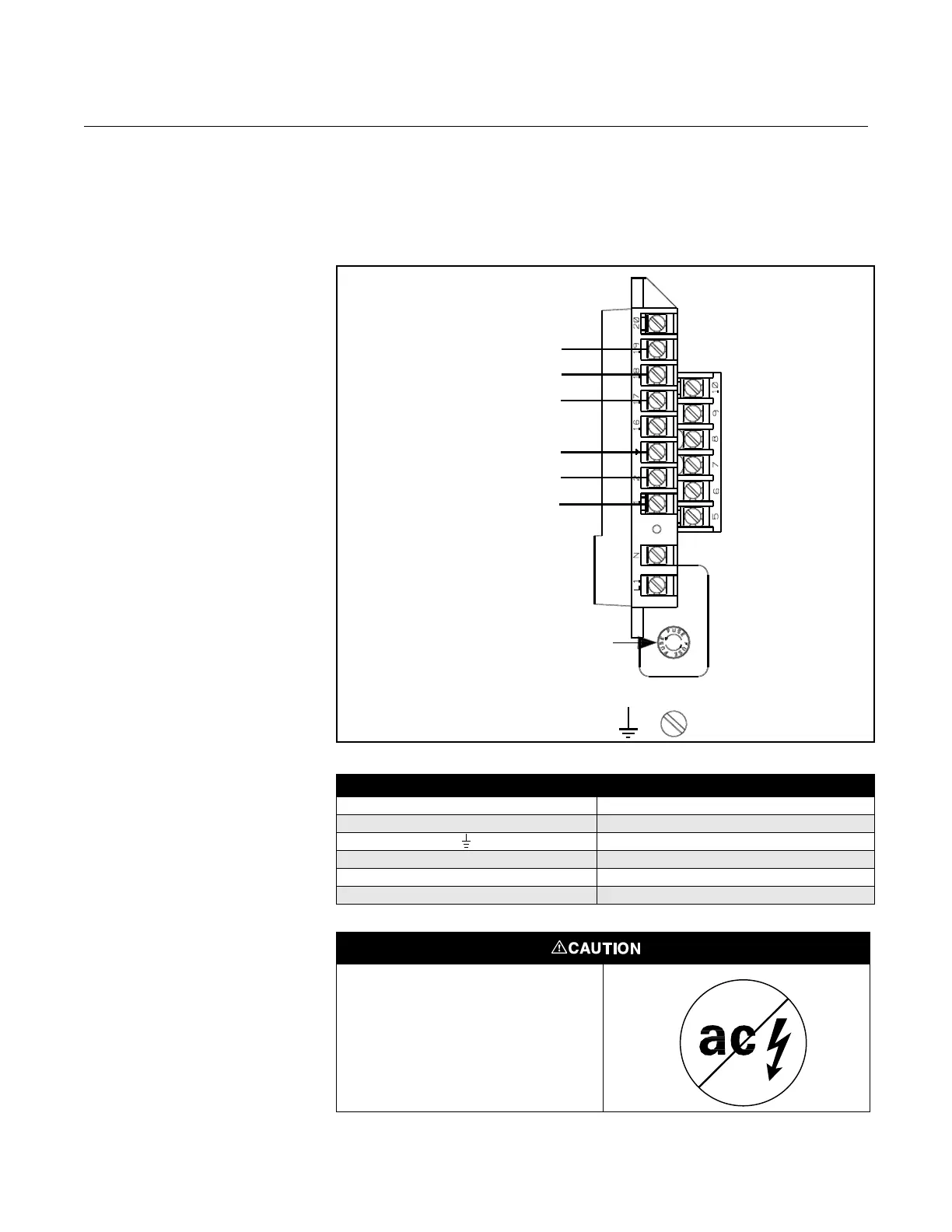

Figure E-33. Generic Wiring
Diagram for Taylor Sensors and
Rosemount 8712
Table E-31. Taylor Generic Sensor Wiring Connections
Rosemount 8712 Taylor Generic Sensors
1Black
2 White
Green
17 S1 and S2
18 E1
19 E2
Electrodes
Coils
Green
ROSEMOUNT 8712
TRANSMITTER
TAYLOR
SENSORS
White
Black
E2
E1
S1 and S2
Fuse
This is a pulsed DCDC magnetic
flowmeter. Do not connect AC power to
the sensor or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
