Flowmeter Grounding Grounding is not required in typical vortex applications; however, a proper
ground will eliminate possible noise pickup by the electronics. Grounding
straps may be used to ensure that the meter is grounded to the process
piping. If you are using the transient protection option (T1), grounding straps
are required to provide a proper low impedance ground.
NOTE
Properly ground flow meter body and transmitter per the local code.
To use grounding straps, secure one end of the grounding strap to the bolt
extending from the side of the meter body and attach the other end of each
grounding strap to a suitable ground.

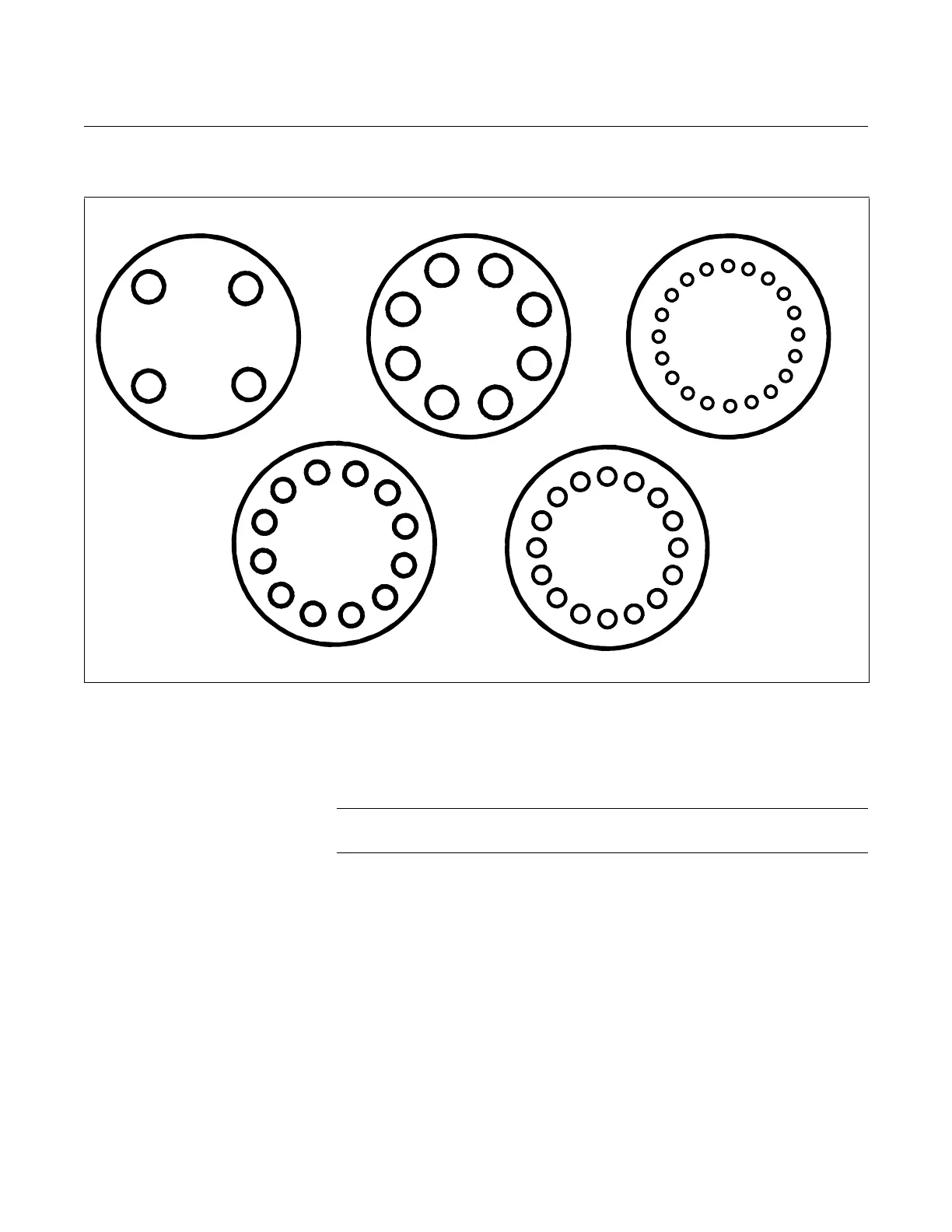

Figure 2-9. Flange Bolt Torquing Sequence
1
3
4
2
3
8
1
5
2
7
6
4
14
18
9
1
9
5
11
3
19
15
7
13
17
2
10
6
12
4
20
16
8
3
7
2
6
10
4
8
12
1
5
16
1
9
5
11
3
13
7
15
2
10
6
12
4
14
8
16-Bolt
12-Bolt
8-Bolt
4-Bolt
20-Bolt
11

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
