Rosemount 8800D
A-20
DIMENSIONAL DRAWINGS

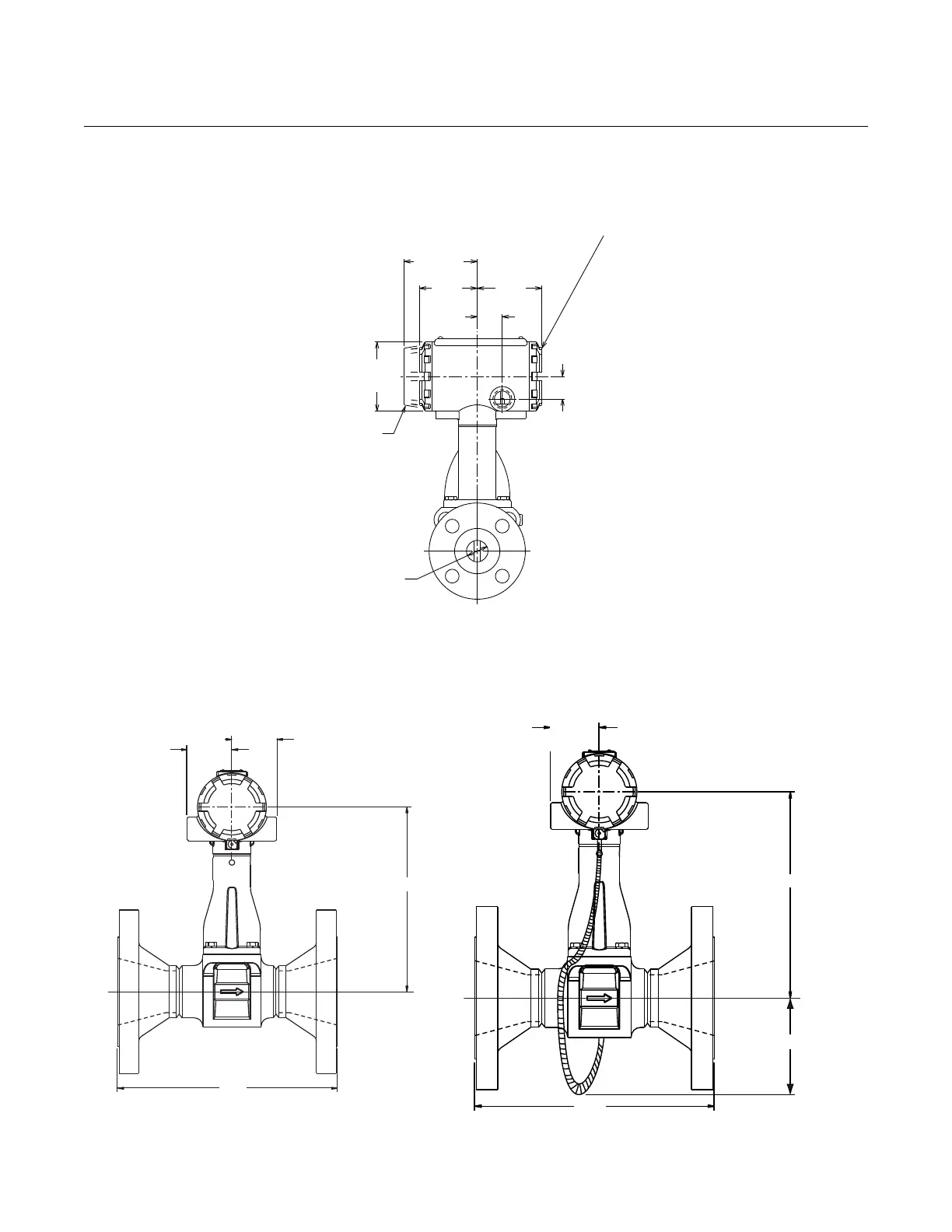

Figure A-2. Flanged-Style Flowmeter Dimensional Drawings (
1
/2-through 12-in./15 through 300 mm Line Sizes)
Terminal Cover
Display Option
Diameter
3.06 (78)
Diameter B
3.20 (81)
2.56
(65)
2.85
(72)
1.10
(28)
1.00
(25.4)
C
A
2.00
(51)
NOTE
Dimensions are in inches (millimeters)
2.00
(51)
A
C
D
Diagram illustrated without MTA Option
Diagram illustrated with MTA Option

Rosemount 8800D Series Specifications

General

Type	Vortex Flow Meter
Measurement Principle	Vortex Shedding
Operating Temperature	-40 to 185°F (-40 to 85°C)
Storage Temperature	-40 to 185°F (-40 to 85°C)
Communication Protocols	FOUNDATION Fieldbus
Material	316 stainless steel
Fluid Type	Liquid, Gas, Steam
Line Size	1/2 to 8 inches (15 to 200 mm)
Approvals	ATEX, IECEx, CSA, FM
Output Signal	4-20 mA
Process Connection	Flanged, Wafer, Threaded
Electrical Connection	M20
Protection Rating	IP66
Mounting Style	Wafer, Flanged
